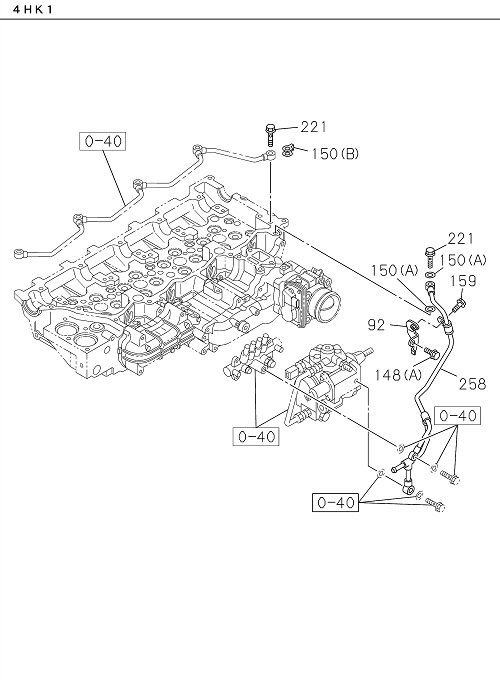

0-42 | FUEL PUMP AND PIPE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 221 | I8-94396 711-0 | BOLT; FUEL PIPE | 2 | 2203- | FTR | M10X21 EYE-BOLT | ||
| 159 | I0-28050 612-0 | BOLT; CLIP | 1 | 2203- | FTR | M6X12 FLANGE | ||
| 148 | I0-28050 612-0 | BOLT; BRKT | 1 | 2203- | FTR | (A) M6X12 FLANGE | ||
| 092 | I8-98045 008-2 | BRACKET; FUEL PIPE | 1 | 2203- | FTR | |||
| 150 | I1-09630 083-0 | GASKET; FUEL PIPE | 2 | 2203- | FTR | (A) ID=10.2 OD=15.2 | ||
| 150 | I8-98079 755-0 | GASKET; FUEL PIPE | 1 | 2203- | FTR | (B) ID=10.2 OD=17 | ||
| 258 | I8-98089 667-0 | PIPE ASM; FUEL,LEAK OFF | 1 | 2203- | FTR |
