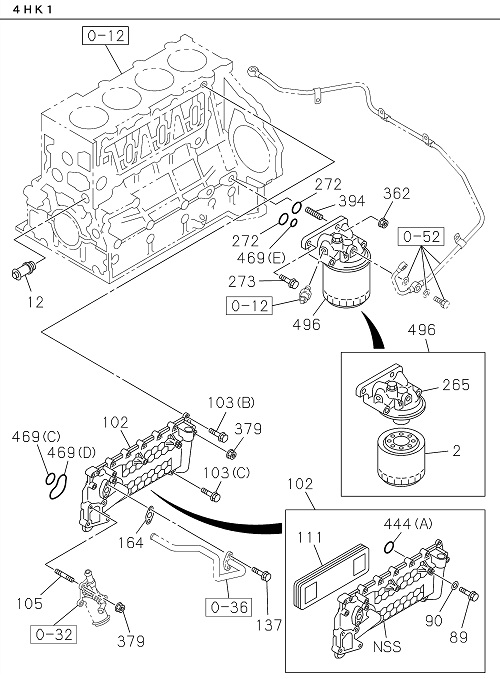

0-50 | OIL COOLER AND OIL FILTER
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 469 | I8-98045 447-A | GASKET; OIL COOLER TO C/BL | 1 | 2203- | FTR | (C) OD=30.2 W/PLATE | ||
| 137 | I7-04508 025-A | BOLT | 2 | 2203- | FTR | M8X20 FLANGE | ||
| 469 | I8-94338 878-A | GASKET; OIL COOLER TO C/BL | 1 | 2203- | FTR | (D) | ||
| 002 | I8-98328 207-A | ELEMENT; OIL FILTER | 1 | 2203- | FTR | (IADG) | ||
| 111 | I8-97334 100-2 | CORE; OIL COOLER | 1 | 2203- | FTR | |||
| 272 | I8-94399 399-0 | GASKET; OIL FILTER TO C/BL | 2 | 2203- | FTR | ID=22.1 | ||
| 394 | I0-49241 025-0 | STUD; OIL FILTER | 1 | 2203- | FTR | M10X25 L=48.5 | ||
| 379 | I7-05108 010-A | NUT; OIL COOLER | 3 | 2203- | FTR | M8 FLANGE | ||
| 089 | I0-28050 816-0 | BOLT; ELEMENT TO CASE | 4 | 2203- | FTR | M8X16 FLANGE | ||
| 273 | I0-59311 030-0 | BOLT; OIL FILTER | 3 | 2203- | FTR | M10X30 | ||
| 002 | I8-98328 207-0 | ELEMENT; OIL FILTER | 1 | 2203- | FTR | |||
| 496 | I8-98328 485-0 | FILTER ASM; OIL | 1 | 2203- | FTR | |||
| 103 | I0-28050 820-0 | BOLT; OIL COOLER | 8 | 2203- | FTR | (C) M8X20 FLANGE | ||
| 362 | I0-91180 110-0 | NUT; OIL FILTER | 1 | 2203- | FTR | M10 FLANGE | ||
| 103 | I0-28050 835-0 | BOLT; OIL COOLER | 8 | 2203- | FTR | (B) M8X35 FLANGE | ||
| 164 | I8-97146 684-A | GASKET; HTR PIPE | 1 | 2203- | FTR | ID=18.6 | ||
| 265 | I8-98328 486-0 | BODY; OIL FILTER | 1 | 2203- | FTR | |||
| 090 | I1-21729 043-0 | GASKET; BOLT,OIL COOLER | 4 | 2203- | FTR | |||
| 105 | I8-97016 314-0 | STUD; OIL COOLER | 3 | 2203- | FTR | M8X52 L=63 | ||
| 012 | I8-97013 566-2 | VALVE ASM; BYPASS | 1 | 2203- | FTR | |||
| 469 | I8-94399 339-0 | GASKET; OIL COOLER TO C/BL | 1 | 2203- | FTR | (E) ID=9.8 | ||
| 102 | I8-98085 312-6 | COOLER ASM; OIL | 1 | 2203- | FTR | |||
| 444 | I8-97384 130-0 | GASKET; ELEMENT TO BODY | 2 | 2203- | FTR | (A) |
