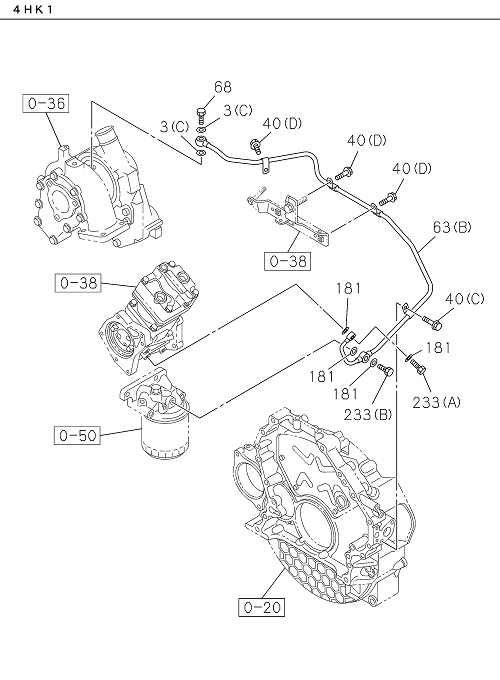

0-52 | OIL AND VACUUM PIPING; ENGINE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 068 | I8-98037 825-0 | BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE | 1 | 2203- | FTR | M10X26 EYE-BOLT | ||
| 003 | I9-09571 410-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 2203- | FTR | (C) ID=10.2 OD=16.0 | ||
| 233 | I1-09675 028-0 | BOLT; EYE | 1 | 2203- | FTR | (A) M10X22 EYE-BOLT | ||
| 181 | I1-09630 083-0 | GASKET | 4 | 2203- | FTR | ID=10.2 OD=15.2 | ||
| 063 | I8-98204 176-1 | PIPE; OIL,TURBOCHARGER FEED | 1 | 2203- | FTR | (B) | ||
| 233 | I8-98037 823-0 | BOLT; EYE | 1 | 2203- | FTR | (B) M10X28 EYE-BOLT | ||
| 040 | I0-28050 820-0 | BOLT; OIL PIPE | 3 | 2203- | FTR | (D) M8X20 FLANGE | ||
| 040 | I0-28050 812-A | BOLT; OIL PIPE | 1 | 2203- | FTR | (C) M8X12 FLANGE |
