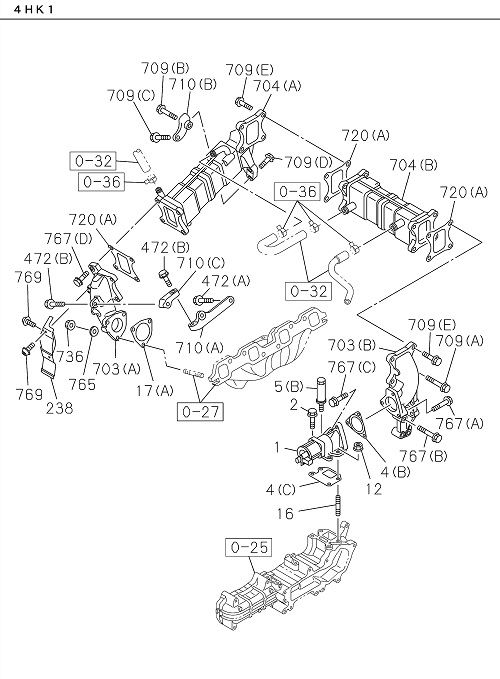

0-57 | EMISSION PIPING
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 472 | I0-28660 825-0 | BOLT; BRKT | 2 | 2203- | FTR | (A) M8X25 FLANGE | ||
| 769 | I8-98054 289-0 | BOLT; HEAT PROTECTOR | 4 | 2203- | FTR | M6X12 W/PL WASHER | ||
| 005 | I8-97377 804-0 | ADAPTER ASM | 1 | 2203- | FTR | (B) | ||
| 710 | I8-98025 253-2 | BRACKET; EGR COOLER | 1 | 2203- | FTR | (A) | ||
| 004 | I8-98036 507-0 | GASKET; EGR VLV | 1 | 2203- | FTR | (B) | ||
| 238 | I8-98176 249-0 | PROTECTOR; HEAT,EGR | 1 | 2203- | FTR | |||
| 472 | I0-28651 040-0 | BOLT; BRKT | 2 | 2203- | FTR | (B) M10X40 FLANGE | ||
| 001 | I8-98219 180-0 | VALVE; EGR | 1 | 2203- | FTR | |||
| 017 | I8-98046 192-1 | GASKET; EGR PIPE | 1 | 2203- | FTR | (A) ID=51.5 | ||
| 016 | I0-41010 820-0 | STUD; EGR VLV | 2 | 2203- | FTR | M8X20 L=32 | ||
| 004 | I8-97306 040-0 | GASKET; EGR VLV | 1 | 2203- | FTR | (C) | ||
| 704 | I8-98212 718-0 | COOLER ASM; EGR | 1 | 2203- | FTR | (B) | ||
| 002 | I0-28650 825-0 | BOLT; EGR VLV | 1 | 2203- | FTR | M8X25 FLANGE | ||
| 720 | I8-98200 753-0 | GASKET; COOLER | 3 | 2203- | FTR | (A) | ||
| 709 | I0-28660 825-0 | BOLT; EGR COOLER | 1 | 2203- | FTR | (C) M8X25 FLANGE | ||
| 704 | I8-98025 248-5 | COOLER ASM; EGR | 1 | 2203- | FTR | (A) | ||
| 703 | I8-98115 665-1 | DUCT; EGR | 1 | 2203- | FTR | (B) | ||
| 709 | I0-28651 040-0 | BOLT; EGR COOLER | 2 | 2203- | FTR | (D) M10X40 FLANGE | ||
| 765 | I8-97545 976-0 | SPACER; EGR PIPE | 3 | 2203- | FTR | |||
| 767 | I0-28050 845-0 | BOLT; DUCT,EGR | 2 | 2203- | FTR | (A) M8X45 FLANGE | ||
| 767 | I8-98043 528-0 | BOLT; DUCT,EGR | 4 | 2203- | FTR | (D) M8X28 FLANGE | ||
| 709 | I0-28660 830-0 | BOLT; EGR COOLER | 7 | 2203- | FTR | (E) M8X30 FLANGE | ||
| 703 | I8-98115 663-0 | DUCT; EGR | 1 | 2203- | FTR | (A) | ||
| 710 | I8-98055 940-1 | BRACKET; EGR COOLER | 1 | 2203- | FTR | (C) | ||
| 710 | I8-98025 254-1 | BRACKET; EGR COOLER | 1 | 2203- | FTR | (B) | ||
| 012 | I7-05108 010-A | NUT; EGR VLV | 2 | 2203- | FTR | M8 FLANGE | ||
| 709 | I0-28060 845-0 | BOLT; EGR COOLER | 1 | 2203- | FTR | (A) M8X45 FLANGE | ||
| 709 | I0-28151 260-0 | BOLT; EGR COOLER | 1 | 2203- | FTR | (B) M12X60 FLANGE | ||
| 767 | I0-28151 250-0 | BOLT; DUCT,EGR | 2 | 2203- | FTR | (B) M12X50 FLANGE | ||
| 767 | I0-28650 830-0 | BOLT; DUCT,EGR | 1 | 2203- | FTR | (C) M8X30 FLANGE | ||
| 736 | I8-97061 401-1 | NUT; DUCT,EGR VLV | 3 | 2203- | FTR | M8 FLANGE |
