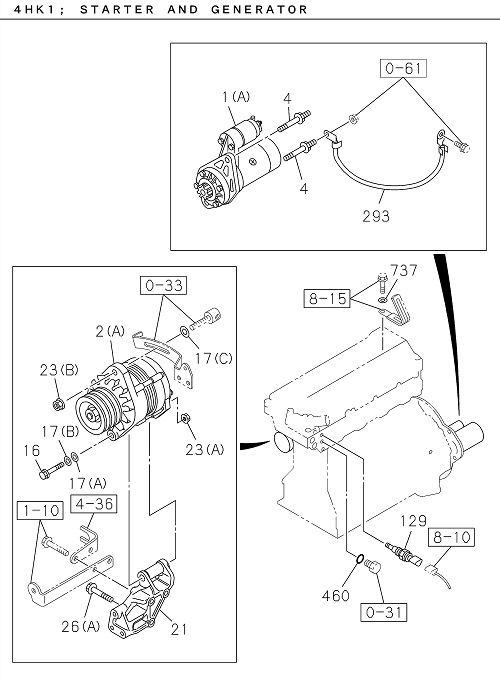

0-60 | ENGINE ELECTRICAL CONTROL PARTS
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 026 | I0-28151 050-0 | BOLT; GEN BRKT | 1 | 2203- | FTR | (A) M10X50 FLANGE | ||
| 021 | I8-97381 404-0 | BRACKET; GEN | 1 | 2203- | FTR | |||
| 460 | I1-09630 086-0 | GASKET; PLUG | 1 | 2203- | FTR | ID=16.2 OD=22 | ||
| 010 | I8-97264 947-0 | RELAY; STARTER | 1 | 2203- | FTR | (C) 24V 50A | ||
| 016 | I1-09000 133-1 | BOLT; GEN | 1 | 2203- | FTR | M14X135 | ||
| 606 | I1-53194 675-0 | BRACKET; CONT UNIT | 1 | 2203- | FTR | |||
| 293 | I8-98176 541-A | CABLE; STARTER EARTH | 1 | 2203- | FTR | |||
| 737 | I9-14149 173-0 | WASHER; PL | 1 | 2203- | FTR | ID=9 OD=18 T=5 | ||
| 749 | I8-98206 457-0 | STAY; CONT UNIT | 1 | 2203- | FTR | (A) | ||
| 023 | I0-91180 112-0 | NUT; GEN | 1 | 2203- | FTR | (B) M12 FLANGE | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | 2203- | FTR | |||
| 017 | I0-91610 712-0 | WASHER; PL,GEN | 1 | 2203- | FTR | (C) ID=12.5 | ||
| 748 | I0-28050 612-0 | BOLT; CONT UNIT | 3 | 2203- | FTR | (A) M6X12 FLANGE | ||
| 002 | I8-97695 083-A | GENERATOR ASM | 1 | 2203- | FTR | (A) 24V 50A | ||
| 613 | I8-97519 288-0 | CONTROL UNIT; ENG | 1 | 2203- | FTR | |||
| 301 | I8-97357 613-0 | RESISTOR; DROPPING | 1 | 2203- | FTR | |||
| 732 | I0-28651 030-0 | BOLT; BRKT | 3 | 2203- | FTR | M10X30 FLANGE | ||
| 010 | I8-98167 173-0 | RELAY; STARTER | 1 | 2203- | FTR | (A) 24V 10A | ||
| 737 | I0-91610 706-0 | WASHER; PL | 1 | 2203- | FTR | ID=6.4 OD=18 | ||
| 017 | I0-91610 514-0 | WASHER; PL,GEN | 1 | 2203- | FTR | (A) ID=15 | ||
| 023 | I0-91110 514-0 | NUT; GEN | 1 | 2203- | FTR | (A) M14 | ||
| 004 | I8-98029 095-0 | BOLT; STARTER | 2 | 2203- | FTR | M10X15,M14X82 L=110 | ||
| 017 | I0-91510 814-0 | WASHER; PL,GEN | 1 | 2203- | FTR | (B) ID=14.2 | ||
| 001 | I8-98245 260-1 | STARTER ASM | 1 | 2203- | FTR | (A) 24V 4.5KW | ||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 2 | 2203- | FTR | (B) M6X16 FLANGE | ||
| 587 | I0-91180 106-0 | NUT; RESISTOR & RELAY | 2 | 2203- | FTR | M6 FLANGE | ||
| 593 | I0-91180 106-0 | NUT; BRKT | 4 | 2203- | FTR | M6 FLANGE |
