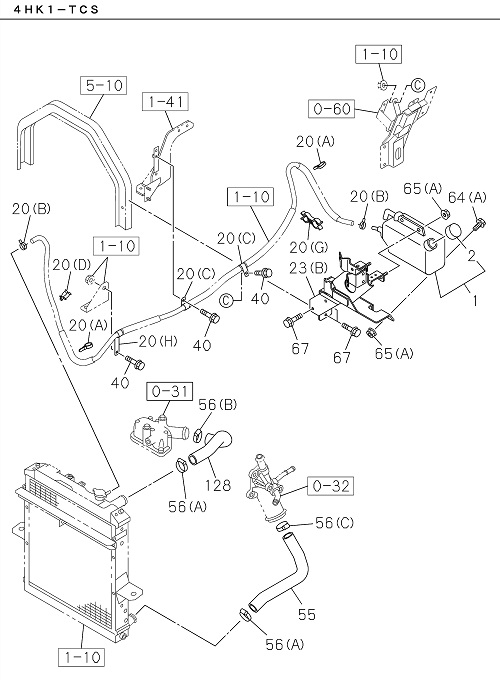

1-11 | RADIATOR HOSE AND SUB TANK
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 020 | I8-97375 638-0 | CLIP; HOSE,RAD | 2 | 2203- | FTR | (B) ID=11.5 | ||
| 128 | I8-98205 873-0 | HOSE; WATER,RAD INL | 1 | 2203- | FTR | |||
| 020 | I8-94314 293-0 | CLIP; HOSE,RAD | 1 | 2203- | FTR | (G) ID=11.5 & 14.5 | ||
| 001 | I8-98171 757-0 | TANK; SURGE,RAD | 1 | 2203- | FTR | |||
| 002 | I8-98178 074-0 | CAP; SURGE TANK | 1 | 2203- | FTR | |||
| 056 | I8-98133 957-0 | CLIP; WATER HOSE,RAD | 1 | 2203- | FTR | (C) ID=62 | ||
| 040 | I7-04508 025-A | BOLT; CLIP | 3 | 2203- | FTR | M8X20 FLANGE | ||
| 067 | I7-04508 025-A | BOLT; BRKT | 3 | 2203- | FTR | M8X20 FLANGE | ||
| 020 | I9-09917 430-0 | CLIP; HOSE,RAD | 1 | 2203- | FTR | (A) ID=20 L=50 | ||
| 064 | I1-09030 093-0 | BOLT; BRKT,SUB TANK | 1 | 2203- | FTR | (A) M8X25 W/LK&PL WASHER | ||
| 055 | I6-98010 573-0 | HOSE; WATER,RAD OUTLET | 1 | 2203- | FTR | (IADG) | ||
| 023 | I8-98049 965-4 | BRACKET; RESERVE TANK | 1 | 2203- | FTR | (B) | ||
| 056 | I1-09704 057-0 | CLIP; WATER HOSE,RAD | 1 | 2203- | FTR | (B) ID=52 | ||
| 020 | I8-98029 256-0 | CLIP; HOSE,RAD | 1 | 2203- | FTR | (D) ID=12 | ||
| 020 | I1-09700 097-1 | CLIP; HOSE,RAD | 1 | 2203- | FTR | (H) ID=12 L=70 | ||
| 056 | I8-98133 956-0 | CLIP; WATER HOSE,RAD | 2 | 2203- | FTR | (A) ID=48 | ||
| 020 | I0-95235 235-0 | CLIP; HOSE,RAD | 2 | 2203- | FTR | (C) ID=13 L=20 | ||
| 055 | I8-98010 573-2 | HOSE; WATER,RAD OUTLET | 1 | 2203- | FTR | |||
| 065 | I7-05108 010-A | NUT; BRKT,SUB TANK | 3 | 2203- | FTR | (A) M8 FLANGE |
