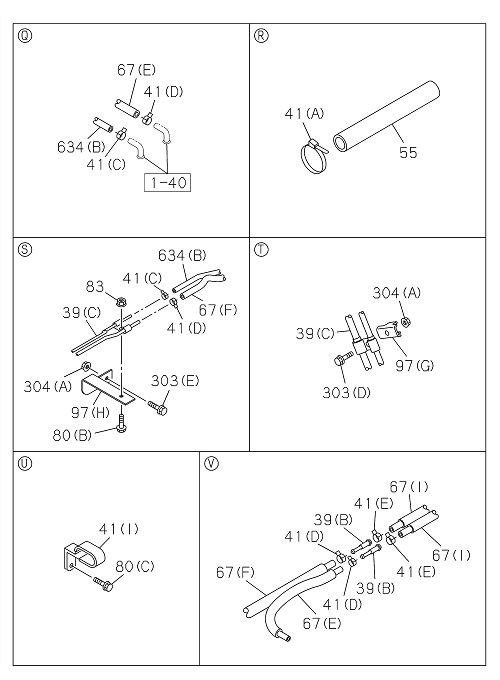

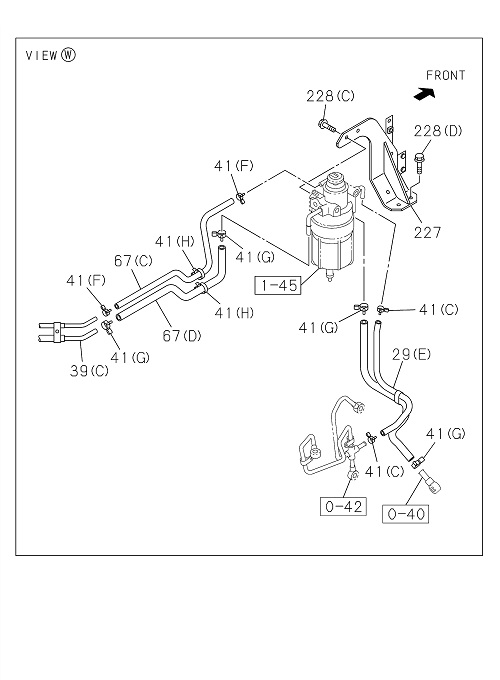

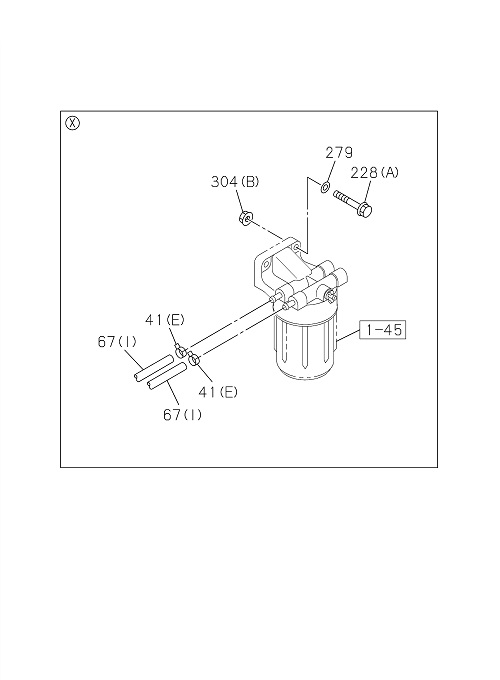

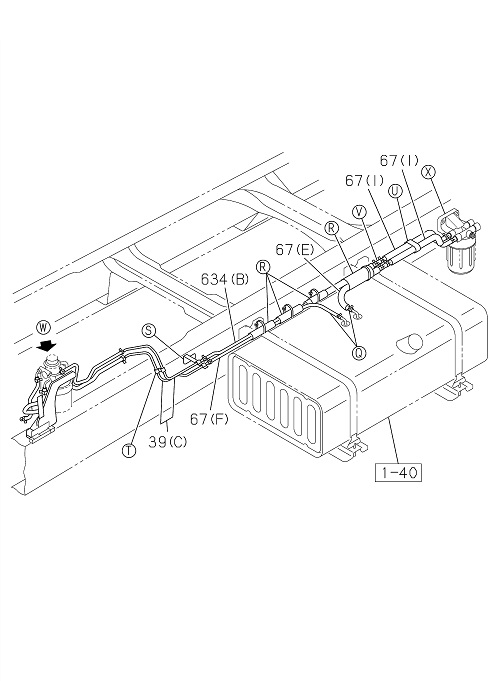

1-41 | FUEL PIPING; CHASSIS
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 279 | I0-91614 710-0 | WASHER | 2 | 2203- | FTR | ID=10.5 OD=26 | ||
| 067 | I8-98208 821-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FTR | (D) | ||
| 067 | I0-01859 300-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FTR | (F) L=1400 | ||
| 303 | I0-28650 840-0 | BOLT; BRKT | 1 | 2203- | FTR | (D) M8X40 FLANGE | ||
| 041 | I5-09707 030-1 | CLIP; FUEL PIPE,FUEL TANK | 4 | 2203- | FTR | (A) L=250 | ||
| 041 | I8-98150 357-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2203- | FTR | (F) ID=13 | ||
| 041 | I8-98150 356-0 | CLIP; FUEL PIPE,FUEL TANK | 4 | 2203- | FTR | (E) ID=19 | ||
| 228 | I7-04508 025-A | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FTR | (C) M8X20 FLANGE | ||
| 041 | I1-09701 317-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2203- | FTR | (I) ID=15 & 19 H=33 L=25 | ||
| 039 | I8-98229 613-0 | PIPE; FUEL | 1 | 2203- | FTR | (C) | ||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 4 | 2203- | FTR | (G) ID=16 | ||
| 041 | I1-09701 018-0 | CLIP; FUEL PIPE,FUEL TANK | 1 | 2203- | FTR | (I) ID=24X2 H=35.5 L=49 | ||
| 228 | I0-28050 825-0 | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FTR | (D) M8X25 FLANGE | ||
| 067 | I8-98206 489-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FTR | (C) | ||
| 080 | I7-04508 025-A | BOLT; CLIP,FUEL TANK | 1 | 2203- | FTR | (B) M8X20 FLANGE | ||
| 041 | I1-09709 290-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2203- | FTR | (H) ID=13-18 L=14.5 | ||
| 039 | I8-98359 701-0 | PIPE; FUEL | 2 | 2203- | FTR | (B) | ||
| 083 | I7-05108 010-A | NUT; CLIP,FUEL TANK | 3 | 2203- | FTR | M8 FLANGE | ||
| 029 | I8-98220 011-0 | HOSE; FUEL | 1 | 2203- | FTR | (E) | ||
| 055 | I1-09360 677-1 | COVER; PIPE,FUEL TANK | 4 | 2203- | FTR | L=150 | ||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2203- | FTR | (D) ID=16 | ||
| 303 | I0-28650 835-0 | BOLT; BRKT | 2 | 2203- | FTR | (E) M8X35 FLANGE | ||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FTR | (B) M10 FLANGE | ||
| 097 | I1-47475 427-1 | BRACKET; CLIP | 1 | 2203- | FTR | (G) | ||
| 083 | I7-05108 010-A | NUT; CLIP,FUEL TANK | 1 | 2203- | FTR | M8 FLANGE | ||
| 080 | I0-28650 830-0 | BOLT; CLIP,FUEL TANK | 3 | 2203- | FTR | (C) M8X30 FLANGE | ||
| 227 | I8-98203 480-0 | BRACKET; FUEL SEDIMENTER | 1 | 2203- | FTR | |||
| 067 | I0-01859 300-0 | HOSE; FUEL,DELIVERY | 2 | 2203- | FTR | (I) L=520 | ||
| 634 | I0-01558 300-0 | HOSE; RUBBER RETURN | 1 | 2203- | FTR | (A) L=1500 | ||
| 304 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | FTR | (A) M8 FLANGE | ||
| 041 | I8-97173 220-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2203- | FTR | (C) ID=13 | ||
| 228 | I0-28051 050-0 | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FTR | (A) M10X50 FLANGE | ||
| 097 | I8-98126 612-0 | BRACKET; CLIP | 1 | 2203- | FTR | (H) |
