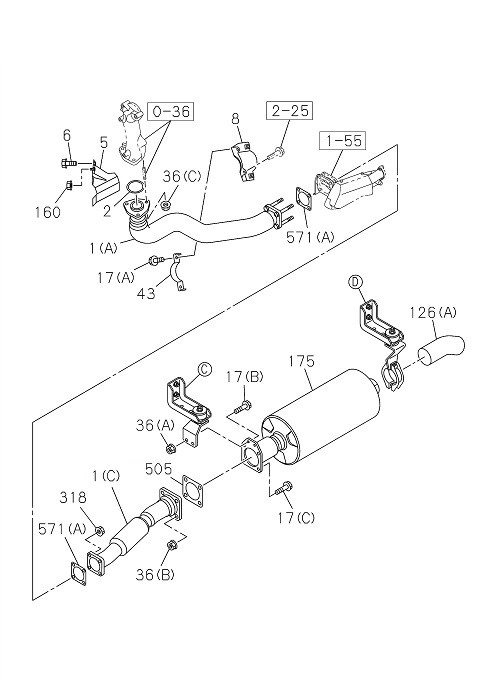

1-50 | EXHAUST PIPE AND SILENCER
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-98180 136-A | PIPE; EXH | 1 | 2203- | FTR | (C) | ||
| 036 | I8-97096 192-1 | NUT; EXH PIPE | 3 | 2203- | FTR | (C) M10 FLANGE | ||
| 056 | I8-98188 241-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | FTR | (C) FTR90S; FTR90T | ||
| 056 | I8-98188 243-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | FTR | (D) FTR90S; FTR90T | ||
| 043 | I8-97646 674-0 | CLAMP; EXH PIPE | 1 | 2203- | FTR | |||
| 118 | I7-05110 010-A | NUT; SILENCER MTG BRKT | 2 | 2203- | FTR | M10 FLANGE | ||
| 226 | I8-94457 278-A | RUBBER; CUSHION | 2 | 2203- | FTR | (B) | ||
| 571 | I8-97373 108-0 | GASKET | 2 | 2203- | FTR | (A) ID=64 | ||
| 105 | I7-05110 010-A | NUT; CLAMP | 2 | 2203- | FTR | M10 FLANGE | ||
| 036 | I0-91180 212-0 | NUT; EXH PIPE | 4 | 2203- | FTR | (B) M12 FLANGE | ||
| 107 | I0-28651 035-0 | BOLT; BRKT | 2 | 2203- | FTR | M10X35 FLANGE | ||
| 008 | I8-98234 530-0 | BRACKET; EXH PIPE | 1 | 2203- | FTR | |||
| 081 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FTR | M10 FLANGE | ||
| 001 | I8-98243 546-0 | PIPE; EXH | 1 | 2203- | FTR | (A) | ||
| 017 | I0-28651 035-0 | BOLT; EXH PIPE | 2 | 2203- | FTR | (B) M10X35 FLANGE | ||
| 056 | I8-98188 240-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | FTR | (C) FTR90P | ||
| 006 | I0-28650 825-0 | BOLT; HEAT PROTECTOR | 1 | 2203- | FTR | M8X25 FLANGE | ||
| 126 | I1-22126 108-A | PIPE; EXH,RR | 1 | 2203- | FTR | (A) | ||
| 318 | I8-97581 234-0 | NUT; EXH PIPE,FRT | 4 | 2203- | FTR | M8 W/LK WASHER | ||
| 056 | I8-98180 163-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | FTR | (D) FTR90P | ||
| 017 | I0-28651 030-0 | BOLT; EXH PIPE | 2 | 2203- | FTR | (A) M10X30 FLANGE | ||
| 017 | I0-28051 235-0 | BOLT; EXH PIPE | 4 | 2203- | FTR | (C) M12X35 FLANGE | ||
| 002 | I8-97381 455-0 | GASKET; PIPE TO MANIF | 1 | 2203- | FTR | ID=61.2 | ||

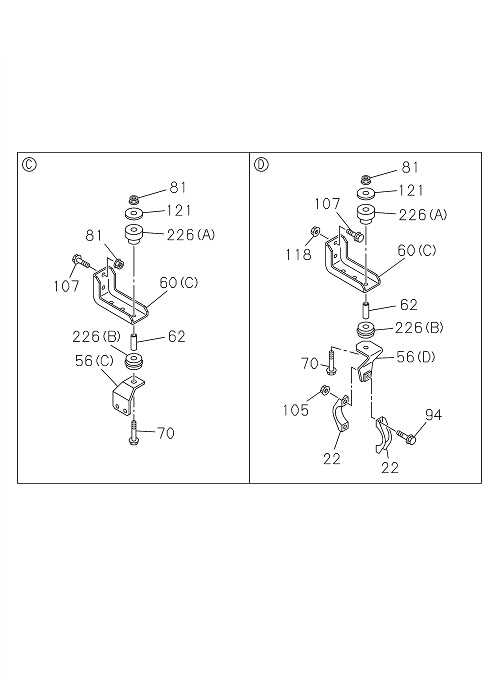

| 060 | I8-98245 531-0 | BRACKET; FRAME TO BRKT | 2 | 2203- | FTR | (C) | ||
| 062 | I8-97948 228-0 | TUBE; DIST,BRKT | 2 | 2203- | FTR | |||
| 226 | I8-94457 277-A | RUBBER; CUSHION | 2 | 2203- | FTR | (A) | ||
| 121 | I1-09503 154-2 | WASHER; PL,BRKT | 2 | 2203- | FTR | ID=11 OD=54 | ||
| 022 | I1-22133 233-A | CLAMP; EXH PIPE | 2 | 2203- | FTR | |||
| 094 | I0-28651 040-0 | BOLT; CLAMP | 2 | 2203- | FTR | M10X40 FLANGE | ||
| 036 | I7-05110 010-A | NUT; EXH PIPE | 2 | 2203- | FTR | (A) M10 FLANGE | ||
| 175 | I8-98219 189-0 | CONVERTER; CATALYST | 1 | 2203- | FTR | |||
| 505 | I8-98096 305-0 | GASKET; CONV TO EXH PIPE | 1 | 2203- | FTR | |||
| 070 | I0-28051 070-0 | BOLT; BRKT | 2 | 2203- | FTR | M10X70 FLANGE | ||
| 160 | I7-05108 010-A | NUT; HEAT PROTECTOR | 1 | 2203- | FTR | M8 FLANGE | ||
| 005 | I8-98208 210-1 | PROTECTOR; HEAT | 1 | 2203- | FTR |
