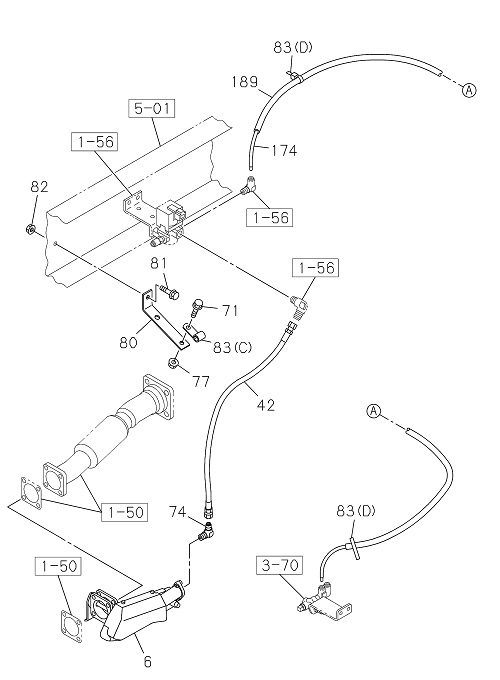

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 071 | I0-28650 825-0 | BOLT; CLIP | 1 | 2203- | FTR | M8X25 FLANGE | ||
| 083 | I0-95235 265-0 | CLIP; FLEX HOSE | 1 | 2203- | FTR | (C) ID=13 L=32 | ||
| 082 | I7-05108 010-A | NUT; HOSE BRKT | 1 | 2203- | FTR | M8 FLANGE | ||
| 189 | I1-87411 019-0 | TUBE; CORRUGATE | 1 | 2203- | FTR | ID=10 | ||
| 006 | I8-97489 690-1 | VALVE; EXH BRAKE | 1 | 2203- | FTR | |||
| 077 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FTR | M8 FLANGE | ||
| 174 | I1-87411 006-0 | TUBE; NYLON | 1 | 2203- | FTR | OD=8 | ||
| 074 | I1-09650 430-0 | CONNECTOR; EXH BRK VLV | 1 | 2203- | FTR | M12 & PT1/4 ELBOW | ||
| 080 | I1-82698 395-0 | BRACKET; FLEX HOSE | 1 | 2203- | FTR | |||
| 042 | I1-09363 957-0 | HOSE; FLEX,EXH BRK | 1 | 2203- | FTR | L=520 | ||
| 083 | I1-09707 183-0 | CLIP; FLEX HOSE | 2 | 2203- | FTR | (D) L=350 | ||
| 081 | I0-28650 830-0 | BOLT; HOSE BRKT | 1 | 2203- | FTR | M8X30 FLANGE |
