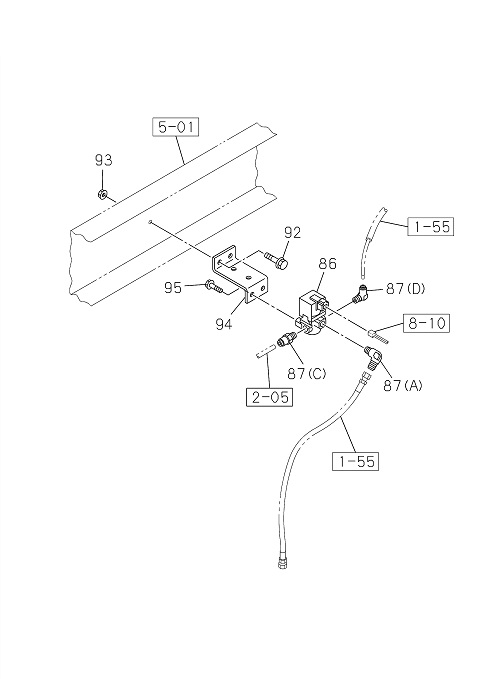

1-56 | EXHAUST BRAKE SYSTEM
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 087 | I1-09660 956-0 | CONNECTOR | 1 | 2203- | FTR | (D) DIN8 & R1/4 ELBOW | ||
| 093 | I7-05108 010-A | NUT; MAG VLV | 2 | 2203- | FTR | M8 FLANGE | ||
| 094 | I1-47471 374-1 | BRACKET; MAG VLV,EXH BRAKE | 1 | 2203- | FTR | |||
| 087 | I1-09660 963-0 | CONNECTOR | 1 | 2203- | FTR | (C) DIN8 R1/4 STRAIGHT | ||
| 087 | I1-09650 430-0 | CONNECTOR | 1 | 2203- | FTR | (A) M12 & PT1/4 ELBOW | ||
| 086 | I8-97948 152-0 | VALVE; MAG,EXH BRK | 1 | 2203- | FTR | |||
| 092 | I0-28650 830-0 | BOLT; MAG VLV | 2 | 2203- | FTR | M8X30 FLANGE | ||
| 095 | I7-04508 025-A | BOLT; BRKT,MAG VLV,EXH BRAKE | 2 | 2203- | FTR | M8X20 FLANGE |
