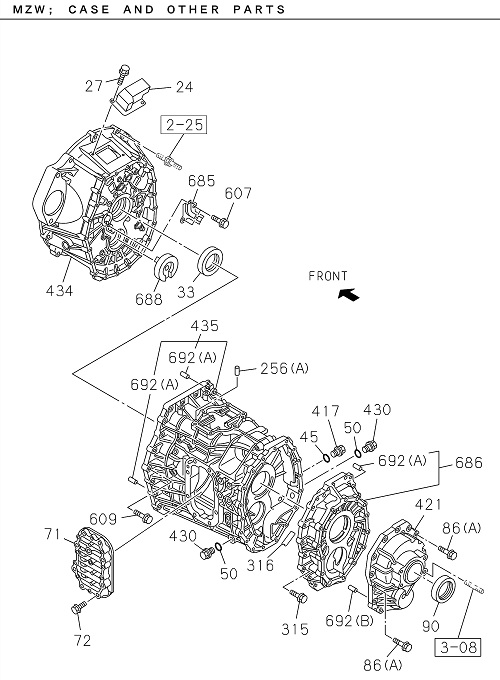

2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 072 | I1-09044 081-0 | BOLT; SIDE COVER | 8 | 2203- | FTR | M10X50 FLANGE | ||
| 090 | I8-97377 948-0 | SEAL; OIL,RR COVER | 1 | 2203- | FTR | |||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 2 | 2203- | FTR | M20X12 W/MAGNET | ||

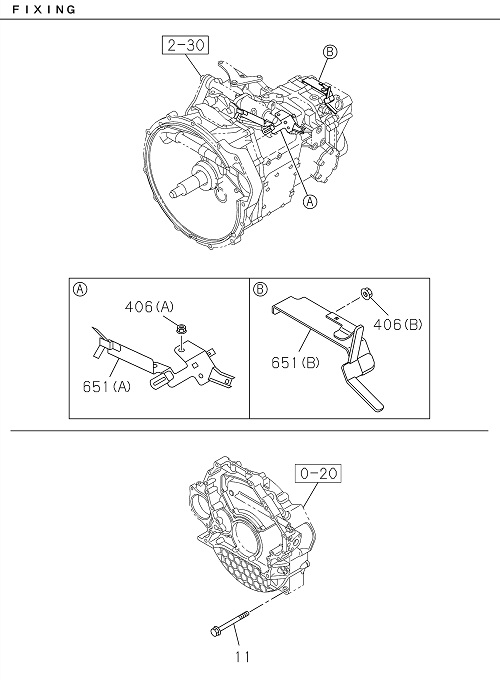

| 406 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | FTR | (A) M8 FLANGE | ||
| 609 | I0-28050 840-0 | BOLT; HSG TO CASE | 22 | 2203- | FTR | M8X40 FLANGE | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 2203- | FTR | |||
| 050 | I8-97115 712-0 | GASKET; DRAIN PLUG | 2 | 2203- | FTR | ID=17 | ||
| 045 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 2203- | FTR | ID=17 | ||
| 086 | I8-98045 397-0 | BOLT; RR COVER | 14 | 2203- | FTR | (A) M10X40 FLANGE | ||

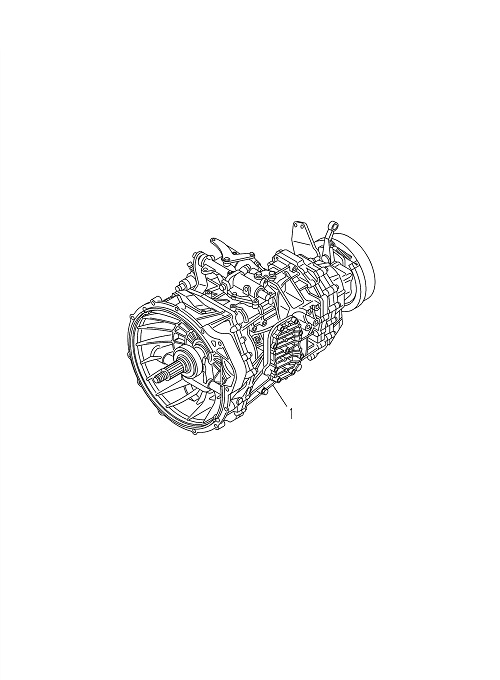

| 001 | I8-98228 563-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | FTR | |||
| 086 | I8-98045 397-0 | BOLT; RR COVER | 14 | 2203- | FTR | (A) M10X40 FLANGE | ||
| 011 | I0-28151 225-0 | BOLT; BRKT | 1 | 2203- | FTR | M12X25 FLANGE | ||
| 692 | I9-11229 058-1 | PIN; DOWEL | 4 | 2203- | FTR | (A) OD=11 L=8 | ||
| 315 | I0-28050 840-0 | BOLT; CASE | 18 | 2203- | FTR | M8X40 FLANGE | ||
| 692 | I9-11319 065-3 | PIN; DOWEL | 2 | 2203- | FTR | (B) OD=14 L=10 | ||
| 692 | I9-11319 065-3 | PIN; DOWEL | 2 | 2203- | FTR | (B) OD=14 L=10 | ||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 2203- | FTR | (A) OD=6 L=12 | ||
| 421 | I8-98004 790-1 | COVER; RR,TRANS | 1 | 2203- | FTR | |||
| 685 | I8-98018 864-1 | COVER; OIL PORT | 1 | 2203- | FTR | |||
| 434 | I8-98004 507-2 | HOUSING; CLU | 1 | 2203- | FTR | |||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 2 | 2203- | FTR | M20X12 W/MAGNET | ||
| 024 | I8-98284 107-0 | COVER; CHECK HOLE,DUST | 1 | 2203- | FTR | |||
| 435 | I8-98236 421-1 | CASE; TRANS | 1 | 2203- | FTR | |||
| 071 | I8-98270 265-1 | COVER; SIDE,TRANS CASE | 1 | 2203- | FTR | |||
| 071 | I8-98270 265-1 | COVER; SIDE,TRANS CASE | 1 | 2203- | FTR | |||
| 686 | I8-97388 873-1 | CASE; RR,TRANS | 1 | 2203- | FTR | |||
| 688 | I8-98309 860-0 | NOZZLE; OIL,COUNTER | 1 | 2203- | FTR | |||
| 607 | I0-28050 816-0 | BOLT; COVER | 2 | 2203- | FTR | M8X16 FLANGE | ||
| 692 | I9-11229 058-1 | PIN; DOWEL | 4 | 2203- | FTR | (A) OD=11 L=8 | ||
| 651 | I8-97609 800-3 | BRACKET; T/M HARNESS | 1 | 2203- | FTR | (A) | ||
| 027 | I0-28050 816-0 | BOLT; COVER TO CLU HSG | 2 | 2203- | FTR | M8X16 FLANGE | ||
| 421 | I8-98004 790-1 | COVER; RR,TRANS | 1 | 2203- | FTR | |||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 2203- | FTR | |||
| 417 | I8-98009 333-0 | PLUG; OIL FILLER,TRANS | 1 | 2203- | FTR | M20X10.5 | ||
| 027 | I0-28050 816-0 | BOLT; COVER TO CLU HSG | 2 | 2203- | FTR | M8X16 FLANGE | ||
| 607 | I0-28050 816-0 | BOLT; COVER | 2 | 2203- | FTR | M8X16 FLANGE | ||
| 011 | I0-28151 225-0 | BOLT; BRKT | 1 | 2203- | FTR | M12X25 FLANGE | ||
| 688 | I8-98309 860-0 | NOZZLE; OIL,COUNTER | 1 | 2203- | FTR | |||
| 651 | I8-97609 800-3 | BRACKET; T/M HARNESS | 1 | 2203- | FTR | (A) | ||
| 417 | I8-98009 333-0 | PLUG; OIL FILLER,TRANS | 1 | 2203- | FTR | M20X10.5 | ||
| 033 | I8-97377 947-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | FTR | |||
| 090 | I8-97377 948-0 | SEAL; OIL,RR COVER | 1 | 2203- | FTR | |||
| 315 | I0-28050 840-0 | BOLT; CASE | 18 | 2203- | FTR | M8X40 FLANGE | ||
| 072 | I1-09044 081-0 | BOLT; SIDE COVER | 8 | 2203- | FTR | M10X50 FLANGE | ||
| 033 | I8-97377 947-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | FTR | |||
| 609 | I0-28050 840-0 | BOLT; HSG TO CASE | 22 | 2203- | FTR | M8X40 FLANGE | ||
| 001 | I8-98228 563-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | FTR | |||
| 685 | I8-98018 864-1 | COVER; OIL PORT | 1 | 2203- | FTR | |||
| 686 | I8-97388 873-1 | CASE; RR,TRANS | 1 | 2203- | FTR | |||
| 406 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | FTR | (A) M8 FLANGE | ||
| 045 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 2203- | FTR | ID=17 | ||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 2203- | FTR | (A) OD=6 L=12 | ||
| 435 | I8-98236 421-1 | CASE; TRANS | 1 | 2203- | FTR | |||
| 434 | I8-98004 507-2 | HOUSING; CLU | 1 | 2203- | FTR | |||
| 050 | I8-97115 712-0 | GASKET; DRAIN PLUG | 2 | 2203- | FTR | ID=17 | ||
| 024 | I8-98284 107-0 | COVER; CHECK HOLE,DUST | 1 | 2203- | FTR |
