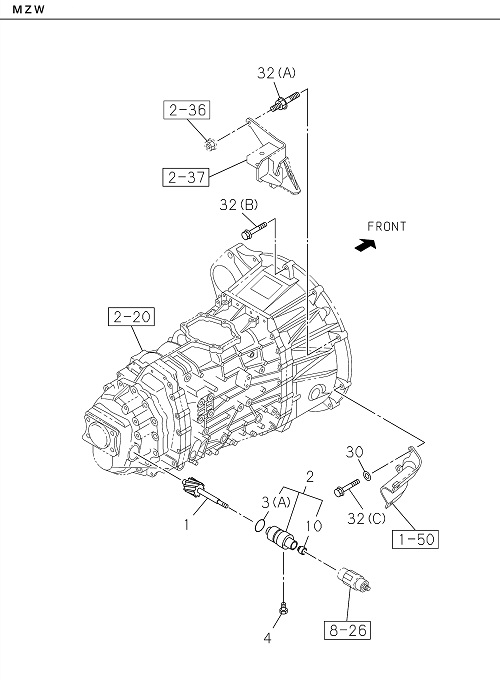

2-25 | SPEEDOMETER DRIVEN GEAR
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I8-98010 335-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FTR | (A) M10X20,M10X45 L=75 | ||
| 001 | I1-33372 133-5 | GEAR; DRIVEN,SPD | 1 | 2203- | FTR | Z=15 | ||
| 030 | I8-94152 902-0 | WASHER; PL,TRANS | 2 | 2203- | FTR | ID=11 OD=24 | ||
| 032 | I0-28051 045-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 6 | 2203- | FTR | (B) M10X45 FLANGE | ||
| 002 | I8-98000 271-0 | BUSHING; DRIVEN GEAR, SPEEDOMETER | 1 | 2203- | FTR | |||
| 032 | I8-98010 335-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FTR | (A) M10X20,M10X45 L=75 | ||
| 010 | I1-09625 510-0 | SEAL; OIL,DRIVE GEAR | 1 | 2203- | FTR | NOK | ||
| 032 | I8-97365 449-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FTR | (C) M10X55 FLANGE | ||
| 003 | I1-09623 246-0 | GASKET; BUSHING | 1 | 2203- | FTR | (A) | ||
| 032 | I0-28051 045-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 6 | 2203- | FTR | (B) M10X45 FLANGE | ||
| 001 | I1-33372 133-5 | GEAR; DRIVEN,SPD | 1 | 2203- | FTR | Z=15 | ||
| 004 | I8-98014 141-0 | BOLT; RET,DRIVEN GEAR | 1 | 2203- | FTR | M6X12.5 FLANGE | ||
| 002 | I8-98000 271-0 | BUSHING; DRIVEN GEAR, SPEEDOMETER | 1 | 2203- | FTR | |||
| 032 | I8-97365 449-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FTR | (C) M10X55 FLANGE | ||
| 030 | I8-94152 902-0 | WASHER; PL,TRANS | 2 | 2203- | FTR | ID=11 OD=24 | ||
| 010 | I1-09625 510-0 | SEAL; OIL,DRIVE GEAR | 1 | 2203- | FTR | NOK | ||
| 003 | I1-09623 246-0 | GASKET; BUSHING | 1 | 2203- | FTR | (A) | ||
| 004 | I8-98014 141-0 | BOLT; RET,DRIVEN GEAR | 1 | 2203- | FTR | M6X12.5 FLANGE |
