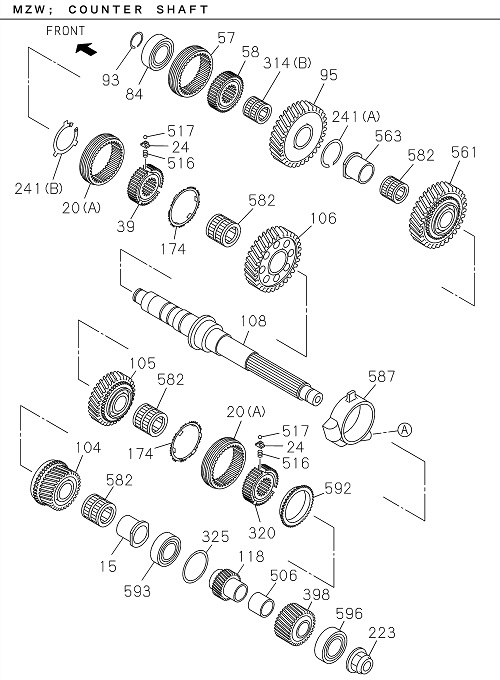

2-26 | MANUAL TRANSMISSION GEAR
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 325 | I8-97377 996-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.68 | ||
| 325 | I8-98009 373-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.26 | ||
| 084 | I8-97377 957-1 | BEARING; COUNTER SHAFT,FRT | 1 | 2203- | FTR | |||
| 132 | I8-98009 372-0 | SHAFT; REV | 1 | 2203- | FTR | |||
| 521 | I0-28050 812-A | BOLT | 1 | 2203- | FTR | M8X12 FLANGE | ||
| 595 | I8-98352 512-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.68 | ||
| 563 | I8-98146 345-0 | COLLAR; 1ST GEAR | 1 | 2203- | FTR | |||
| 521 | I0-28050 812-A | BOLT | 1 | 2203- | FTR | M8X12 FLANGE | ||
| 294 | I8-97380 571-0 | SHAFT; OUTPUT | 1 | 2203- | FTR | Z=43 | ||
| 577 | I8-98033 981-0 | HOSE; OIL PUMP | 1 | 2203- | FTR | (A) L=73 | ||
| 595 | I8-98352 515-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.86 | ||
| 325 | I8-97377 994-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.56 | ||
| 015 | I8-98146 345-0 | COLLAR; 4TH GEAR | 1 | 2203- | FTR | |||
| 595 | I8-98352 511-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.62 | ||
| 593 | I8-97377 976-0 | BEARING; COUNTER MIDDLE | 1 | 2203- | FTR | |||
| 105 | I8-98168 501-0 | GEAR; 3RD,COUNTER | 1 | 2203- | FTR | Z=35 | ||
| 135 | I8-98005 601-1 | GEAR; REV IDLER | 1 | 2203- | FTR | Z=27 | ||
| 011 | I6-97241 306-0 | RING; BLOCK,5TH & 6TH | 2 | 2203- | FTR | (IADG) Z=45 | ||
| 314 | I1-09811 017-0 | BEARING; NEEDLE,REV GEAR | 2 | 2203- | FTR | (A) | ||
| 108 | I8-98303 643-0 | SHAFT; COUNTER | 1 | 2203- | FTR | Z=27-42-26 | ||
| 294 | I8-97380 571-0 | SHAFT; OUTPUT | 1 | 2203- | FTR | Z=43 | ||
| 298 | I1-09623 380-0 | GASKET; MAINSHAFT | 1 | 2203- | FTR | ID=47 T=5 | ||
| 592 | I8-97241 306-1 | RING; BLOCK,4TH | 1 | 2203- | FTR | Z=45 | ||
| 108 | I8-98303 643-0 | SHAFT; COUNTER | 1 | 2203- | FTR | Z=27-42-26 | ||
| 036 | I8-98168 499-0 | GEAR; 3RD,MAINSHAFT | 1 | 2203- | FTR | Z=29 | ||
| 260 | I8-98014 140-0 | NUT; MAINSHAFT END | 1 | 2203- | FTR | M36 FLANGE | ||
| 595 | I8-98352 514-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.80 | ||
| 057 | I8-94421 871-1 | SLEEVE; REV | 1 | 2203- | FTR | Z=45 | ||
| 326 | I8-98014 738-0 | BOLT; REV SHAFT | 1 | 2203- | FTR | (B) M10X50 | ||
| 572 | I8-98168 500-0 | GEAR; 4TH,INPUT | 1 | 2203- | FTR | Z=37 | ||
| 018 | I8-97256 855-0 | RING; SNAP,CLU HUB | 1 | 2203- | FTR | ID=35.7 T=1.8 | ||
| 299 | I8-97377 970-0 | BEARING; OUTPUT SHAFT FRT | 1 | 2203- | FTR | |||
| 178 | I8-97253 099-1 | BEARING; NEEDLE,MAINSHAFT | 1 | 2203- | FTR | |||
| 325 | I8-97377 997-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.74 | ||
| 132 | I8-98009 372-0 | SHAFT; REV | 1 | 2203- | FTR | |||
| 093 | I8-97377 958-0 | RING; SNAP,COUNTER FRT BRG | 1 | 2203- | FTR | ID=31.7 T=2.1 | ||
| 325 | I8-97377 995-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.62 | ||
| 595 | I8-98352 505-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.26 | ||
| 325 | I8-98009 374-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.32 | ||
| 506 | I8-97377 965-0 | COLLAR; 6TH,COUNTER | 1 | 2203- | FTR | |||
| 595 | I8-98352 514-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.80 | ||
| 571 | I8-97377 951-0 | RING; SNAP,BRG | 1 | 2203- | FTR | ID=44 T=2.1 | ||
| 104 | I8-98198 297-0 | GEAR; 4TH,COUNTER | 1 | 2203- | FTR | Z=29 | ||
| 561 | I8-98000 330-0 | GEAR; LOW,COUNTER | 1 | 2203- | FTR | Z=44 | ||
| 082 | I8-98245 057-1 | SHAFT; MAIN,TRANS | 1 | 2203- | FTR | Z=13-21-19-26 | ||
| 587 | I8-98303 650-0 | CASE; PUMP,COUNTER | 1 | 2203- | FTR | |||
| 587 | I8-98303 650-0 | CASE; PUMP,COUNTER | 1 | 2203- | FTR | |||
| 468 | I8-98075 734-0 | HUB; CLU,5TH & 6TH | 1 | 2203- | FTR | Z=45 | ||
| 506 | I8-97377 965-0 | COLLAR; 6TH,COUNTER | 1 | 2203- | FTR | |||
| 106 | I8-98140 884-0 | GEAR; 2ND,COUNTER | 1 | 2203- | FTR | Z=44 | ||
| 595 | I8-98352 515-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.86 | ||
| 592 | I8-97241 306-1 | RING; BLOCK,4TH | 1 | 2203- | FTR | Z=45 | ||
| 595 | I8-98352 510-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.56 | ||
| 298 | I1-09623 380-0 | GASKET; MAINSHAFT | 1 | 2203- | FTR | ID=47 T=5 | ||
| 018 | I8-97256 855-0 | RING; SNAP,CLU HUB | 1 | 2203- | FTR | ID=35.7 T=1.8 | ||
| 058 | I8-98005 296-0 | HUB; CLU,REV | 1 | 2203- | FTR | Z=45-27 | ||
| 400 | I8-97377 977-0 | BEARING; OUTPUT SHAFT RR | 1 | 2203- | FTR | |||
| 039 | I8-98309 852-0 | HUB; CLU,LOW & 2ND | 1 | 2203- | FTR | Z=45 | ||
| 580 | I8-97377 953-0 | BEARING; MAINSHAFT RR | 1 | 2203- | FTR | |||
| 058 | I8-98005 296-0 | HUB; CLU,REV | 1 | 2203- | FTR | Z=45-27 | ||
| 595 | I8-98352 513-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.74 | ||
| 595 | I8-98352 506-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.32 | ||
| 118 | I8-98005 292-1 | GEAR; 6TH,COUNTER | 1 | 2203- | FTR | Z=17 | ||
| 299 | I8-97377 970-0 | BEARING; OUTPUT SHAFT FRT | 1 | 2203- | FTR | |||
| 592 | I6-97241 306-0 | RING; BLOCK,4TH | 1 | 2203- | FTR | (IADG) Z=45 | ||
| 314 | I8-97253 111-0 | BEARING; NEEDLE,REV GEAR | 1 | 2203- | FTR | (B) | ||
| 594 | I8-98005 633-0 | WASHER; THRUST,REV IDLE | 1 | 2203- | FTR | |||
| 571 | I8-97377 951-0 | RING; SNAP,BRG | 1 | 2203- | FTR | ID=44 T=2.1 | ||
| 475 | I8-98142 265-0 | BEARING; 6TH | 1 | 2203- | FTR | COLLAR OD=50.000- | ||
| 473 | I8-97377 950-0 | BEARING; INPUT SHAFT | 1 | 2203- | FTR | |||
| 093 | I8-97377 958-0 | RING; SNAP,COUNTER FRT BRG | 1 | 2203- | FTR | ID=31.7 T=2.1 | ||
| 080 | I8-97377 978-1 | GEAR; SPD DRIVE | 1 | 2203- | FTR | Z=5 | ||
| 260 | I8-98014 140-0 | NUT; MAINSHAFT END | 1 | 2203- | FTR | M36 FLANGE | ||
| 095 | I8-98005 229-0 | GEAR; REV,COUNTER | 1 | 2203- | FTR | Z=44 | ||
| 011 | I8-97241 306-1 | RING; BLOCK,5TH & 6TH | 2 | 2203- | FTR | Z=45 | ||
| 473 | I8-97377 950-0 | BEARING; INPUT SHAFT | 1 | 2203- | FTR | |||
| 582 | I8-97253 110-0 | BEARING; NEEDLE,COUNTER GEAR | 4 | 2203- | FTR | |||
| 594 | I8-98005 633-0 | WASHER; THRUST,REV IDLE | 1 | 2203- | FTR | |||
| 325 | I8-97377 995-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.62 | ||
| 241 | I8-97254 743-0 | RING; SNAP | 1 | 2203- | FTR | (A) ID=46.5 T=1.8 | ||
| 020 | I8-98258 279-0 | SLEEVE | 3 | 2203- | FTR | (A) Z=45 | ||
| 095 | I8-98005 229-0 | GEAR; REV,COUNTER | 1 | 2203- | FTR | Z=44 | ||
| 011 | I8-97241 306-1 | RING; BLOCK,5TH & 6TH | 2 | 2203- | FTR | Z=45 | ||
| 011 | I6-97241 306-0 | RING; BLOCK,5TH & 6TH | 2 | 2203- | FTR | (IADG) Z=45 | ||
| 595 | I8-98352 512-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.68 | ||
| 398 | I8-97380 568-0 | GEAR; COUNTER | 1 | 2203- | FTR | Z=22 | ||
| 020 | I8-98258 279-0 | SLEEVE | 3 | 2203- | FTR | (A) Z=45 | ||
| 320 | I8-98309 859-0 | HUB; CLU,4TH & 3RD | 1 | 2203- | FTR | Z=45 | ||
| 325 | I8-98009 377-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.50 | ||
| 135 | I8-98005 601-1 | GEAR; REV IDLER | 1 | 2203- | FTR | Z=27 | ||
| 581 | I8-98137 255-1 | CLUTCH; DOG,5TH GEAR | 1 | 2203- | FTR | |||
| 595 | I8-98352 511-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.62 | ||
| 593 | I8-97377 976-0 | BEARING; COUNTER MIDDLE | 1 | 2203- | FTR | |||
| 325 | I8-97377 998-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.80 | ||
| 015 | I8-98146 345-0 | COLLAR; 4TH GEAR | 1 | 2203- | FTR | |||
| 325 | I8-98009 376-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.44 | ||
| 595 | I8-98352 508-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.44 | ||
| 325 | I8-97377 996-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.68 | ||
| 595 | I8-98352 513-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.74 | ||
| 325 | I8-98022 219-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.20 | ||
| 077 | I8-98137 256-0 | GEAR; 6TH,MAINSHAFT | 1 | 2203- | FTR | Z=46 | ||
| 241 | I8-98009 391-0 | RING; SNAP | 1 | 2203- | FTR | (B) ID=96 T=2.5 | ||
| 596 | I8-97377 968-0 | BEARING; ROOLER,COUNTER END | 1 | 2203- | FTR | |||
| 082 | I8-98245 057-1 | SHAFT; MAIN,TRANS | 1 | 2203- | FTR | Z=13-21-19-26 | ||
| 077 | I8-98137 256-0 | GEAR; 6TH,MAINSHAFT | 1 | 2203- | FTR | Z=46 | ||
| 325 | I8-98009 377-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.50 | ||
| 131 | I9-09571 410-0 | GASKET; REV SHAFT | 2 | 2203- | FTR | ID=10.2 OD=16.0 | ||
| 325 | I8-98022 218-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.14 | ||
| 577 | I8-98033 981-0 | HOSE; OIL PUMP | 1 | 2203- | FTR | (A) L=73 | ||
| 174 | I8-98315 823-2 | SYNCHRONIZER ASM; 2ND-3RD | 2 | 2203- | FTR | |||
| 595 | I8-98352 510-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.56 | ||
| 223 | I8-98005 894-0 | NUT; COUNTER SHAFT END | 1 | 2203- | FTR | M34 FLANGE | ||
| 475 | I8-98101 505-0 | BEARING; 6TH | 1 | 2203- | FTR | COLLAR OD=-49.999 | ||
| 563 | I8-98146 345-0 | COLLAR; 1ST GEAR | 1 | 2203- | FTR | |||
| 105 | I8-98168 501-0 | GEAR; 3RD,COUNTER | 1 | 2203- | FTR | Z=35 | ||
| 577 | I8-98033 982-0 | HOSE; OIL PUMP | 1 | 2203- | FTR | (B) L=95 | ||
| 131 | I9-09571 410-0 | GASKET; REV SHAFT | 2 | 2203- | FTR | ID=10.2 OD=16.0 | ||
| 578 | I8-98009 345-0 | SCREEN; OIL PUMP | 1 | 2203- | FTR | |||
| 314 | I1-09811 017-0 | BEARING; NEEDLE,REV GEAR | 2 | 2203- | FTR | (A) | ||
| 577 | I8-98033 982-0 | HOSE; OIL PUMP | 1 | 2203- | FTR | (B) L=95 | ||
| 595 | I8-98352 509-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.50 | ||
| 592 | I6-97241 306-0 | RING; BLOCK,4TH | 1 | 2203- | FTR | (IADG) Z=45 | ||
| 580 | I8-97377 953-0 | BEARING; MAINSHAFT RR | 1 | 2203- | FTR | |||
| 024 | I8-97241 313-1 | BLOCK; INDEX,SYN | 9 | 2203- | FTR | |||
| 517 | I8-97252 935-0 | BALL; SYNCHRO,INDEX | 9 | 2203- | FTR | |||
| 424 | I8-98125 318-0 | COLLAR; 6TH GEAR | 1 | 2203- | FTR | |||
| 326 | I0-29261 050-0 | BOLT; REV SHAFT | 1 | 2203- | FTR | (A) M10X50 FLANGE | ||
| 039 | I8-98309 852-0 | HUB; CLU,LOW & 2ND | 1 | 2203- | FTR | Z=45 | ||
| 118 | I8-98005 292-1 | GEAR; 6TH,COUNTER | 1 | 2203- | FTR | Z=17 | ||
| 326 | I0-29261 050-0 | BOLT; REV SHAFT | 1 | 2203- | FTR | (A) M10X50 FLANGE | ||
| 398 | I8-97380 568-0 | GEAR; COUNTER | 1 | 2203- | FTR | Z=22 | ||
| 314 | I8-97253 111-0 | BEARING; NEEDLE,REV GEAR | 1 | 2203- | FTR | (B) | ||
| 516 | I8-98032 197-0 | SPRING; SYNCHRO,INDEX | 9 | 2203- | FTR | |||
| 595 | I8-98352 505-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.26 | ||
| 325 | I8-97377 994-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.56 | ||
| 561 | I8-98000 330-0 | GEAR; LOW,COUNTER | 1 | 2203- | FTR | Z=44 | ||
| 326 | I8-98014 738-0 | BOLT; REV SHAFT | 1 | 2203- | FTR | (B) M10X50 | ||
| 595 | I8-98352 507-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.38 | ||
| 080 | I8-97377 978-1 | GEAR; SPD DRIVE | 1 | 2203- | FTR | Z=5 | ||
| 581 | I8-98137 255-1 | CLUTCH; DOG,5TH GEAR | 1 | 2203- | FTR | |||
| 241 | I8-97254 743-0 | RING; SNAP | 1 | 2203- | FTR | (A) ID=46.5 T=1.8 | ||
| 468 | I8-98075 734-0 | HUB; CLU,5TH & 6TH | 1 | 2203- | FTR | Z=45 | ||
| 572 | I8-98168 500-0 | GEAR; 4TH,INPUT | 1 | 2203- | FTR | Z=37 | ||
| 106 | I8-98140 884-0 | GEAR; 2ND,COUNTER | 1 | 2203- | FTR | Z=44 | ||
| 325 | I8-98009 373-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.26 | ||
| 579 | I8-98030 682-0 | CLAMP; HOSE | 4 | 2203- | FTR | ID=16 | ||
| 057 | I8-94421 871-1 | SLEEVE; REV | 1 | 2203- | FTR | Z=45 | ||
| 325 | I8-98022 218-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.14 | ||
| 400 | I8-97377 977-0 | BEARING; OUTPUT SHAFT RR | 1 | 2203- | FTR | |||
| 516 | I8-98032 197-0 | SPRING; SYNCHRO,INDEX | 9 | 2203- | FTR | |||
| 517 | I8-97252 935-0 | BALL; SYNCHRO,INDEX | 9 | 2203- | FTR | |||
| 036 | I8-98168 499-0 | GEAR; 3RD,MAINSHAFT | 1 | 2203- | FTR | Z=29 | ||
| 325 | I8-97377 997-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.74 | ||
| 084 | I8-97377 957-1 | BEARING; COUNTER SHAFT,FRT | 1 | 2203- | FTR | |||
| 573 | I8-98212 241-0 | PUMP ASM; OIL | 1 | 2203- | FTR | |||
| 325 | I8-97377 998-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.80 | ||
| 386 | I9-08150 408-0 | PIN; REV SHAFT | 1 | 2203- | FTR | OD=4 L=8 | ||
| 595 | I8-98352 507-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.38 | ||
| 325 | I8-98022 219-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.20 | ||
| 386 | I9-08150 408-0 | PIN; REV SHAFT | 1 | 2203- | FTR | OD=4 L=8 | ||
| 325 | I8-98009 376-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.44 | ||
| 475 | I8-98101 505-0 | BEARING; 6TH | 1 | 2203- | FTR | COLLAR OD=-49.999 | ||
| 241 | I8-98009 391-0 | RING; SNAP | 1 | 2203- | FTR | (B) ID=96 T=2.5 | ||
| 573 | I8-98212 241-0 | PUMP ASM; OIL | 1 | 2203- | FTR | |||
| 325 | I8-98009 375-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.38 | ||
| 578 | I8-98009 345-0 | SCREEN; OIL PUMP | 1 | 2203- | FTR | |||
| 024 | I8-97241 313-1 | BLOCK; INDEX,SYN | 9 | 2203- | FTR | |||
| 596 | I8-97377 968-0 | BEARING; ROOLER,COUNTER END | 1 | 2203- | FTR | |||
| 595 | I8-98352 509-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.50 | ||
| 320 | I8-98309 859-0 | HUB; CLU,4TH & 3RD | 1 | 2203- | FTR | Z=45 | ||
| 579 | I8-98030 682-0 | CLAMP; HOSE | 4 | 2203- | FTR | ID=16 | ||
| 174 | I8-98315 823-2 | SYNCHRONIZER ASM; 2ND-3RD | 2 | 2203- | FTR | |||
| 595 | I8-98352 508-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.44 | ||
| 475 | I8-98142 265-0 | BEARING; 6TH | 1 | 2203- | FTR | COLLAR OD=50.000- | ||
| 104 | I8-98198 297-0 | GEAR; 4TH,COUNTER | 1 | 2203- | FTR | Z=29 | ||
| 582 | I8-97253 110-0 | BEARING; NEEDLE,COUNTER GEAR | 4 | 2203- | FTR | |||
| 325 | I8-98009 375-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.38 | ||
| 595 | I8-98352 506-0 | SHIM; OUTPUT SHAFT | 1 | 2203- | FTR | T=1.32 | ||
| 325 | I8-98009 374-0 | SHIM; COUNTER SHAFT BRG | 1 | 2203- | FTR | T=1.32 | ||
| 223 | I8-98005 894-0 | NUT; COUNTER SHAFT END | 1 | 2203- | FTR | M34 FLANGE | ||
| 424 | I8-98125 318-0 | COLLAR; 6TH GEAR | 1 | 2203- | FTR | |||
| 178 | I8-97253 099-1 | BEARING; NEEDLE,MAINSHAFT | 1 | 2203- | FTR |
