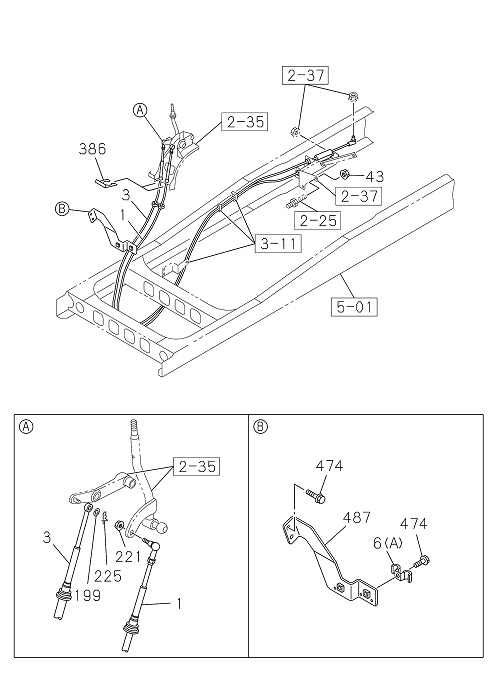

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 2203- | FTR | L=27.7 | ||
| 006 | I1-09700 739-0 | CLIP; CABLE | 1 | 2203- | FTR | (A) ID=11 & 11 L=17.5 & 17.5 | ||
| 487 | I8-98183 009-0 | BRACKET; CONT CABLE | 1 | 2203- | FTR | |||
| 221 | I1-09440 062-1 | NUT; SHIFT WIRE TO LEVER | 1 | 2203- | FTR | M8 FLANGE | ||
| 487 | I8-98183 009-0 | BRACKET; CONT CABLE | 1 | 2203- | FTR | |||
| 474 | I0-51640 825-0 | BOLT; BRKT | 3 | 2203- | FTR | M8X25 W/WASHER | ||
| 221 | I1-09440 062-1 | NUT; SHIFT WIRE TO LEVER | 1 | 2203- | FTR | M8 FLANGE | ||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 2203- | FTR | L=27.7 | ||
| 006 | I1-09700 739-0 | CLIP; CABLE | 1 | 2203- | FTR | (A) ID=11 & 11 L=17.5 & 17.5 | ||
| 043 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FTR | M10 FLANGE | ||
| 003 | I8-98041 387-B | CABLE; SELECT,TRANS CONT | 1 | 2203- | FTR | L=3155 | ||
| 474 | I0-51640 825-0 | BOLT; BRKT | 3 | 2203- | FTR | M8X25 W/WASHER | ||
| 043 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FTR | M10 FLANGE | ||
| 001 | I8-98041 381-B | CABLE; SHIFT,TRANS CONT | 1 | 2203- | FTR | L=3090 | ||
| 386 | I1-09700 966-1 | CLIP; CONT CABLE & TUBE | 2 | 2203- | FTR | |||
| 199 | I0-91614 508-0 | WASHER; PL,SELECT | 1 | 2203- | FTR | ID=8.4 OD=16 | ||
| 386 | I1-09700 966-1 | CLIP; CONT CABLE & TUBE | 2 | 2203- | FTR | |||
| 001 | I8-98041 381-B | CABLE; SHIFT,TRANS CONT | 1 | 2203- | FTR | L=3090 | ||
| 003 | I8-98041 387-B | CABLE; SELECT,TRANS CONT | 1 | 2203- | FTR | L=3155 | ||
| 199 | I0-91614 508-0 | WASHER; PL,SELECT | 1 | 2203- | FTR | ID=8.4 OD=16 |
