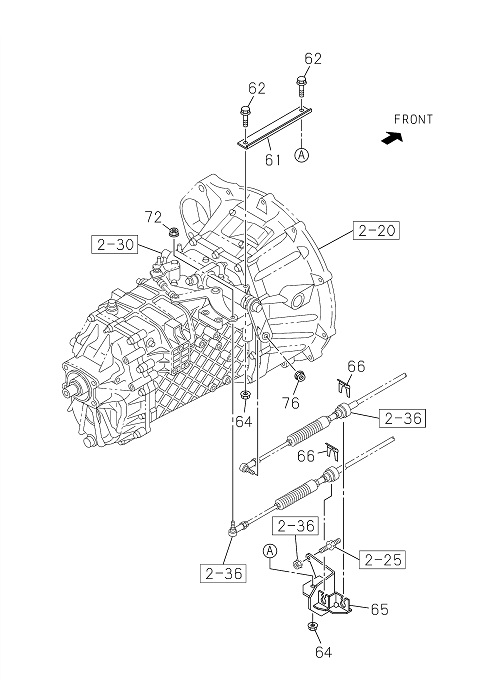

2-37 | MANUAL TRANSMISSION CONT; MISSION SIDE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 065 | I8-98050 563-1 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FTR | |||
| 062 | I0-28651 030-0 | BOLT; STAY | 2 | 2203- | FTR | M10X30 FLANGE | ||
| 062 | I0-28651 030-0 | BOLT; STAY | 2 | 2203- | FTR | M10X30 FLANGE | ||
| 061 | I8-98251 404-0 | STAY; BRKT,TRANS CONT | 1 | 2203- | FTR | |||
| 072 | I1-09440 049-0 | NUT; TRANS CONT,SELECT | 1 | 2203- | FTR | M8 FLANGE | ||
| 061 | I8-98251 404-0 | STAY; BRKT,TRANS CONT | 1 | 2203- | FTR | |||
| 076 | I1-09440 049-0 | NUT; BALL JOINT,SELECT WIRE | 1 | 2203- | FTR | M8 FLANGE | ||
| 072 | I1-09440 049-0 | NUT; TRANS CONT,SELECT | 1 | 2203- | FTR | M8 FLANGE | ||
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 2203- | FTR | ID=22.2 | ||
| 064 | I7-05110 010-A | NUT; STAY | 2 | 2203- | FTR | M10 FLANGE | ||
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 2203- | FTR | ID=22.2 | ||
| 065 | I8-98050 563-1 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FTR | |||
| 064 | I7-05110 010-A | NUT; STAY | 2 | 2203- | FTR | M10 FLANGE | ||
| 076 | I1-09440 049-0 | NUT; BALL JOINT,SELECT WIRE | 1 | 2203- | FTR | M8 FLANGE |
