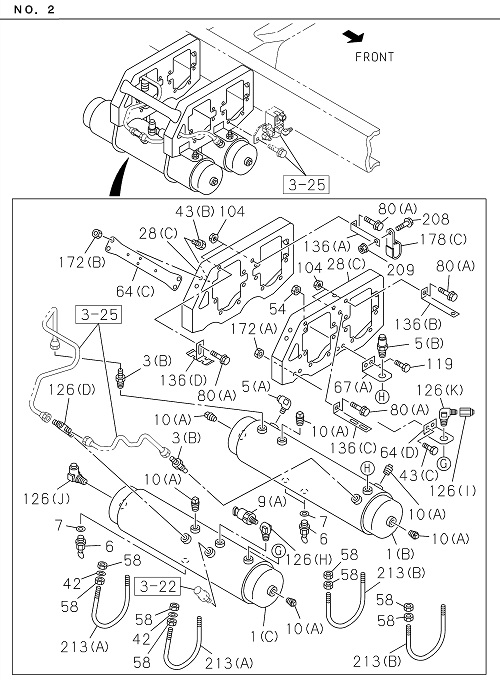

| 072 |
I8-98120 254-0 |
|
BRACKET; AIR MASTER |
2 |
2203- |
|
FTR |
|
| 009 |
I8-97609 249-0 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
2203- |
|
FTR |
(A) STAMP 5.5 |
| 043 |
I7-04508 025-A |
|
BOLT; STAY,AIR TANK,MAIN |
2 |
2203- |
|
FTR |
(C) M8X20 FLANGE |
| 213 |
I1-48317 367-A |
|
BOLT; U AIR TANK |
2 |
2203- |
|
FTR |
(B) L=195 |
| 042 |
I1-14319 034-0 |
|
WASHER; PL |
4 |
2203- |
|
FTR |
ID=8.4 OD=18 |
| 037 |
I0-28651 240-0 |
|
BOLT; AIR TANK |
6 |
2203- |
|
FTR |
M12X40 FLANGE |
| 080 |
I7-04508 025-A |
|
BOLT; BRKT |
5 |
2203- |
|
FTR |
(A) M8X20 FLANGE |
| 043 |
I7-04508 025-A |
|
BOLT; STAY,AIR TANK,MAIN |
2 |
2203- |
|
FTR |
(C) M8X20 FLANGE |
| 213 |
I1-48317 323-A |
|
BOLT; U AIR TANK |
2 |
2203- |
|
FTR |
(A) L=97.5 |
| 010 |
I9-99204 513-0 |
|
PLUG; AIR TANK |
6 |
2203- |
|
FTR |
(A) PT1/4 |
| 172 |
I7-05108 010-A |
|
NUT; STAY,AIR TANK,MAIN |
2 |
2203- |
|
FTR |
(A) M8 FLANGE |
| 152 |
I7-04508 025-A |
|
BOLT; OIL TANK TO BAND |
2 |
2203- |
|
FTR |
M8X20 FLANGE |
| 172 |
I7-05108 010-A |
|
NUT; STAY,AIR TANK,MAIN |
2 |
2203- |
|
FTR |
(A) M8 FLANGE |
| 080 |
I0-28651 025-0 |
|
BOLT; BRKT |
4 |
2203- |
|
FTR |
(B) M10X25 FLANGE |
| 028 |
I8-97913 537-3 |
|
BRACKET; AIR TANK |
2 |
2203- |
|
FTR |
(C) |
| 240 |
I1-47529 018-0 |
|
HOLDER; FILTER |
1 |
2203- |
|
FTR |
|
| 126 |
I1-09660 693-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(H) PT1/4 & PT1/4 2WAY |
| 177 |
I0-03566 300-0 |
|
HOSE; RUBBER,DRAIN |
1 |
2203- |
|
FTR |
L=60 |
| 125 |
I1-09360 320-0 |
|
HOSE; OIL TANK TO AIR MASTER |
1 |
2203- |
|
FTR |
(C) L=270 |
| 006 |
I1-48312 015-0 |
|
COCK; DRAIN,AIR TANK |
3 |
2203- |
|
FTR |
|
| 126 |
I1-09660 878-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(I) DIN12 & M12 STRAIGHT |
| 126 |
I1-09660 956-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(J) DIN8 & R1/4 ELBOW |
| 001 |
I8-98269 245-0 |
|
TANK ASM; AIR |
1 |
2203- |
|
FTR |
(C) |
| 136 |
I1-47475 694-1 |
|
BRACKET; CLIP |
1 |
2203- |
|
FTR |
(A) L=112 |
| 136 |
I1-47475 530-0 |
|
BRACKET; CLIP |
1 |
2203- |
|
FTR |
(B) L=90 B=25 |
| 001 |
I1-48370 541-0 |
|
TANK ASM; AIR |
1 |
2203- |
|
FTR |
(B) |
| 237 |
I1-47525 030-0 |
|
CAP; OIL TANK |
1 |
2203- |
|
FTR |
|
| 064 |
I8-94301 490-0 |
|
STAY; AIR TANK,MAIN |
1 |
2203- |
|
FTR |
(D) |
| 126 |
I1-09660 956-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(J) DIN8 & R1/4 ELBOW |
| 177 |
I0-03566 300-0 |
|
HOSE; RUBBER,DRAIN |
1 |
2203- |
|
FTR |
L=60 |
| 271 |
I7-05110 010-A |
|
NUT; BRKT,HOSE |
2 |
2203- |
|
FTR |
M10 FLANGE |
| 178 |
I8-98150 355-0 |
|
CLIP; HOSE |
1 |
2203- |
|
FTR |
(A) ID=21 |
| 153 |
I7-05108 010-A |
|
NUT; OIL TANK TO BAND |
2 |
2203- |
|
FTR |
M8 FLANGE |
| 009 |
I8-97609 249-0 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
2203- |
|
FTR |
(A) STAMP 5.5 |
| 145 |
I1-09704 102-0 |
|
CLIP; OIL TANK TO AIR MASTER HOSE |
4 |
2203- |
|
FTR |
ID=14 |
| 126 |
I1-09660 693-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(H) PT1/4 & PT1/4 2WAY |
| 152 |
I7-04508 025-A |
|
BOLT; OIL TANK TO BAND |
2 |
2203- |
|
FTR |
M8X20 FLANGE |
| 209 |
I7-05108 010-A |
|
NUT; CLIP |
1 |
2203- |
|
FTR |
M8 FLANGE |
| 058 |
I0-91110 508-0 |
|
NUT; BAND,AIR TANK |
16 |
2203- |
|
FTR |
M8 |
| 126 |
I1-09650 277-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(K) M22 & PT3/4 ELBOW |
| 081 |
I1-47800 663-1 |
|
AIR MASTER ASM; BRK |
2 |
2203- |
|
FTR |
|
| 086 |
I1-47529 019-0 |
|
SEAL; DUST |
1 |
2203- |
|
FTR |
|
| 067 |
I1-48317 349-0 |
|
STAY; SUB TANK |
1 |
2203- |
|
FTR |
(A) |
| 067 |
I1-48317 349-0 |
|
STAY; SUB TANK |
1 |
2203- |
|
FTR |
(A) |
| 005 |
I1-09660 959-0 |
|
UNION; AIR TANK |
1 |
2203- |
|
FTR |
(A) DIN12 & R3/8 ELBOW |
| 136 |
I1-47477 629-2 |
|
BRACKET; CLIP |
1 |
2203- |
|
FTR |
(C) L=150 H=30 |
| 178 |
I1-09709 280-1 |
|
CLIP; HOSE |
1 |
2203- |
|
FTR |
(B) ID=12 & 12 |
| 151 |
I1-47537 056-2 |
|
BAND; OIL TANK,AIR MASTER |
2 |
2203- |
|
FTR |
|
| 126 |
I1-09656 340-1 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(D) M20X2 & PT3/8 3WAY |
| 086 |
I1-47529 019-0 |
|
SEAL; DUST |
1 |
2203- |
|
FTR |
|
| 005 |
I1-09660 959-0 |
|
UNION; AIR TANK |
1 |
2203- |
|
FTR |
(A) DIN12 & R3/8 ELBOW |
| 126 |
I1-09656 340-1 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(D) M20X2 & PT3/8 3WAY |
| 125 |
I8-98098 558-A |
|
HOSE; OIL TANK TO AIR MASTER |
1 |
2203- |
|
FTR |
(D) |
| 178 |
I1-09709 280-1 |
|
CLIP; HOSE |
1 |
2203- |
|
FTR |
(B) ID=12 & 12 |
| 238 |
I1-47529 022-0 |
|
PLATE; BAFFLE |
1 |
2203- |
|
FTR |
|
| 058 |
I0-91110 508-0 |
|
NUT; BAND,AIR TANK |
16 |
2203- |
|
FTR |
M8 |
| 178 |
I9-09917 171-0 |
|
CLIP; HOSE |
1 |
2203- |
|
FTR |
(C) DIN15X2 |
| 028 |
I8-97913 537-3 |
|
BRACKET; AIR TANK |
2 |
2203- |
|
FTR |
(C) |
| 043 |
I0-28651 025-0 |
|
BOLT; STAY,AIR TANK,MAIN |
4 |
2203- |
|
FTR |
(B) M10X25 FLANGE |
| 064 |
I1-53318 293-1 |
|
STAY; AIR TANK,MAIN |
1 |
2203- |
|
FTR |
(C) |
| 126 |
I1-09650 277-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(K) M22 & PT3/4 ELBOW |
| 140 |
I0-28651 025-0 |
|
BOLT; OIL TANK TO BRKT |
2 |
2203- |
|
FTR |
M10X25 FLANGE |
| 042 |
I1-14319 034-0 |
|
WASHER; PL |
4 |
2203- |
|
FTR |
ID=8.4 OD=18 |
| 239 |
I1-47529 017-0 |
|
FILTER; DUST |
1 |
2203- |
|
FTR |
|
| 001 |
I1-48370 541-0 |
|
TANK ASM; AIR |
1 |
2203- |
|
FTR |
(B) |
| 139 |
I1-47537 081-2 |
|
BRACKET; OIL TANK |
1 |
2203- |
|
FTR |
|
| 005 |
I1-09660 965-0 |
|
UNION; AIR TANK |
1 |
2203- |
|
FTR |
(B) DIN12 & R3/8 STRAIGHT |
| 240 |
I1-47529 018-0 |
|
HOLDER; FILTER |
1 |
2203- |
|
FTR |
|
| 172 |
I7-05110 010-A |
|
NUT; STAY,AIR TANK,MAIN |
4 |
2203- |
|
FTR |
(B) M10 FLANGE |
| 153 |
I7-05108 010-A |
|
NUT; OIL TANK TO BAND |
2 |
2203- |
|
FTR |
M8 FLANGE |
| 037 |
I0-28651 240-0 |
|
BOLT; AIR TANK |
6 |
2203- |
|
FTR |
M12X40 FLANGE |
| 080 |
I0-28651 025-0 |
|
BOLT; BRKT |
4 |
2203- |
|
FTR |
(B) M10X25 FLANGE |
| 054 |
I7-05108 010-A |
|
NUT; STAY |
2 |
2203- |
|
FTR |
M8 FLANGE |
| 003 |
I1-48410 182-3 |
|
VALVE; CHECK,AIR TANK |
2 |
2203- |
|
FTR |
(B) M20 & PT3/4 STRAIGHT |
| 126 |
I1-09660 878-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
FTR |
(I) DIN12 & M12 STRAIGHT |
| 209 |
I7-05108 010-A |
|
NUT; CLIP |
1 |
2203- |
|
FTR |
M8 FLANGE |
| 006 |
I1-48312 015-0 |
|
COCK; DRAIN,AIR TANK |
3 |
2203- |
|
FTR |
|
| 125 |
I1-09360 320-0 |
|
HOSE; OIL TANK TO AIR MASTER |
1 |
2203- |
|
FTR |
(C) L=270 |
| 104 |
I7-05108 010-A |
|
NUT; BRKT |
5 |
2203- |
|
FTR |
M8 FLANGE |
| 136 |
I1-47475 530-0 |
|
BRACKET; CLIP |
1 |
2203- |
|
FTR |
(B) L=90 B=25 |
| 136 |
I1-47479 693-0 |
|
BRACKET; CLIP |
2 |
2203- |
|
FTR |
(D) |
| 064 |
I8-94301 490-0 |
|
STAY; AIR TANK,MAIN |
1 |
2203- |
|
FTR |
(D) |
| 140 |
I0-28651 025-0 |
|
BOLT; OIL TANK TO BRKT |
2 |
2203- |
|
FTR |
M10X25 FLANGE |
| 094 |
I7-05110 010-A |
|
NUT; BRKT FIX |
4 |
2203- |
|
FTR |
M10 FLANGE |
| 010 |
I9-99204 513-0 |
|
PLUG; AIR TANK |
6 |
2203- |
|
FTR |
(A) PT1/4 |
| 001 |
I8-98269 245-0 |
|
TANK ASM; AIR |
1 |
2203- |
|
FTR |
(C) |
| 125 |
I8-98098 558-A |
|
HOSE; OIL TANK TO AIR MASTER |
1 |
2203- |
|
FTR |
(D) |
| 083 |
I7-05110 010-A |
|
NUT; AIR MASTER |
10 |
2203- |
|
FTR |
M10 FLANGE |
| 213 |
I1-48317 367-A |
|
BOLT; U AIR TANK |
2 |
2203- |
|
FTR |
(B) L=195 |
| 064 |
I1-53318 293-1 |
|
STAY; AIR TANK,MAIN |
1 |
2203- |
|
FTR |
(C) |
| 238 |
I1-47529 022-0 |
|
PLATE; BAFFLE |
1 |
2203- |
|
FTR |
|
| 237 |
I1-47525 030-0 |
|
CAP; OIL TANK |
1 |
2203- |
|
FTR |
|
| 080 |
I7-04508 025-A |
|
BOLT; BRKT |
5 |
2203- |
|
FTR |
(A) M8X20 FLANGE |
| 119 |
I7-04508 025-A |
|
BOLT; STAY |
2 |
2203- |
|
FTR |
M8X20 FLANGE |
| 145 |
I1-09704 102-0 |
|
CLIP; OIL TANK TO AIR MASTER HOSE |
4 |
2203- |
|
FTR |
ID=14 |
| 007 |
I1-09630 145-0 |
|
GASKET; DRAIN COCK |
3 |
2203- |
|
FTR |
ID=14 |
| 003 |
I1-48410 182-3 |
|
VALVE; CHECK,AIR TANK |
2 |
2203- |
|
FTR |
(B) M20 & PT3/4 STRAIGHT |
| 104 |
I7-05108 010-A |
|
NUT; BRKT |
5 |
2203- |
|
FTR |
M8 FLANGE |
| 178 |
I9-09917 171-0 |
|
CLIP; HOSE |
1 |
2203- |
|
FTR |
(C) DIN15X2 |
| 138 |
I1-47530 185-1 |
|
TANK ASM; OIL,AIR MASTER |
1 |
2203- |
|
FTR |
|
| 178 |
I8-98150 355-0 |
|
CLIP; HOSE |
1 |
2203- |
|
FTR |
(A) ID=21 |
| 005 |
I1-09660 965-0 |
|
UNION; AIR TANK |
1 |
2203- |
|
FTR |
(B) DIN12 & R3/8 STRAIGHT |
| 172 |
I7-05110 010-A |
|
NUT; STAY,AIR TANK,MAIN |
4 |
2203- |
|
FTR |
(B) M10 FLANGE |
| 208 |
I7-04508 025-A |
|
BOLT; CLIP |
1 |
2203- |
|
FTR |
M8X20 FLANGE |
| 119 |
I7-04508 025-A |
|
BOLT; STAY |
2 |
2203- |
|
FTR |
M8X20 FLANGE |
| 136 |
I1-47477 629-2 |
|
BRACKET; CLIP |
1 |
2203- |
|
FTR |
(C) L=150 H=30 |
| 271 |
I7-05110 010-A |
|
NUT; BRKT,HOSE |
2 |
2203- |
|
FTR |
M10 FLANGE |
| 043 |
I0-28651 025-0 |
|
BOLT; STAY,AIR TANK,MAIN |
4 |
2203- |
|
FTR |
(B) M10X25 FLANGE |
| 007 |
I1-09630 145-0 |
|
GASKET; DRAIN COCK |
3 |
2203- |
|
FTR |
ID=14 |
| 083 |
I7-05110 010-A |
|
NUT; AIR MASTER |
10 |
2203- |
|
FTR |
M10 FLANGE |
| 138 |
I1-47530 185-1 |
|
TANK ASM; OIL,AIR MASTER |
1 |
2203- |
|
FTR |
|
| 054 |
I7-05108 010-A |
|
NUT; STAY |
2 |
2203- |
|
FTR |
M8 FLANGE |
| 139 |
I1-47537 081-2 |
|
BRACKET; OIL TANK |
1 |
2203- |
|
FTR |
|
| 213 |
I1-48317 323-A |
|
BOLT; U AIR TANK |
2 |
2203- |
|
FTR |
(A) L=97.5 |
| 081 |
I1-47800 663-1 |
|
AIR MASTER ASM; BRK |
2 |
2203- |
|
FTR |
|
| 136 |
I1-47479 693-0 |
|
BRACKET; CLIP |
2 |
2203- |
|
FTR |
(D) |
| 136 |
I1-47475 694-1 |
|
BRACKET; CLIP |
1 |
2203- |
|
FTR |
(A) L=112 |
| 239 |
I1-47529 017-0 |
|
FILTER; DUST |
1 |
2203- |
|
FTR |
|
| 072 |
I8-98120 254-0 |
|
BRACKET; AIR MASTER |
2 |
2203- |
|
FTR |
|
| 208 |
I7-04508 025-A |
|
BOLT; CLIP |
1 |
2203- |
|
FTR |
M8X20 FLANGE |
| 151 |
I1-47537 056-2 |
|
BAND; OIL TANK,AIR MASTER |
2 |
2203- |
|
FTR |
|
