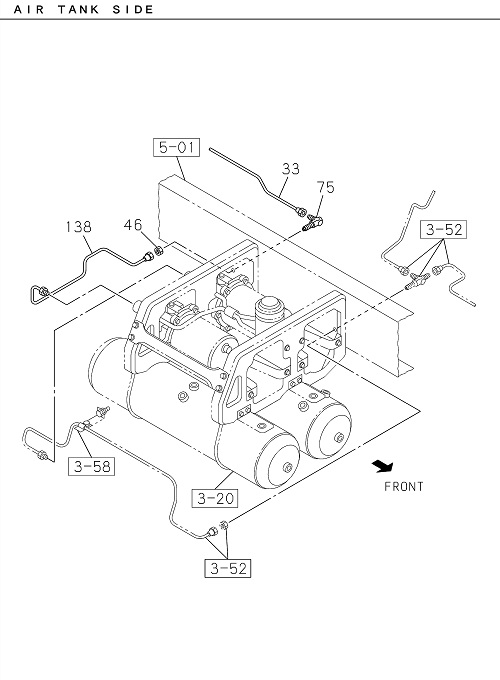

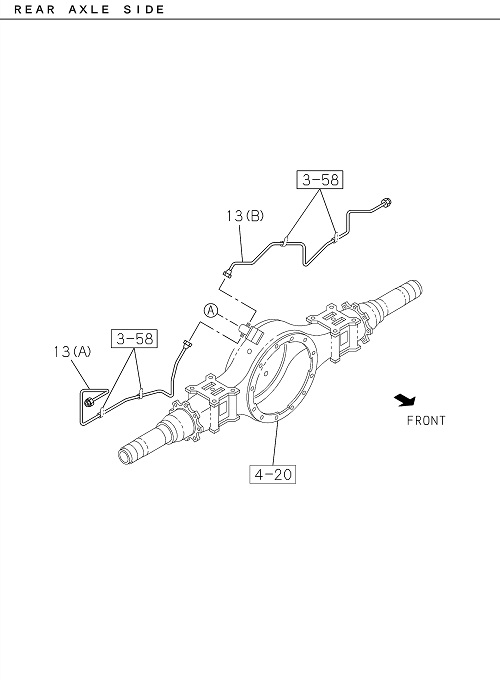

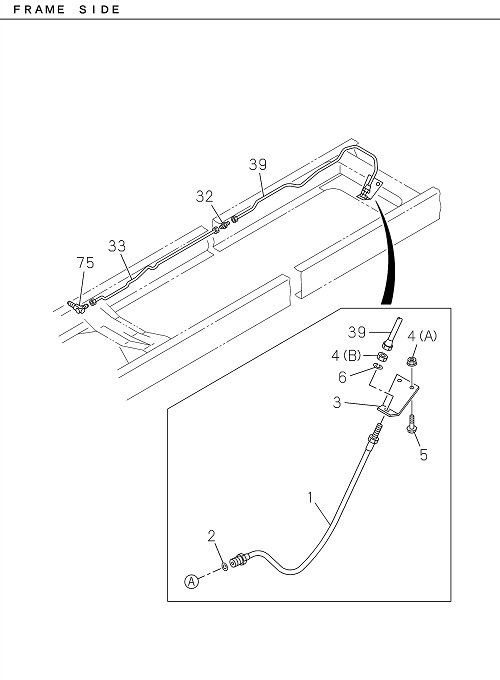

3-55 | BRAKE PIPING; OIL,REAR
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I0-92113 006-0 | UNION; OIL PIPE | 1 | 2203- | FTR | M12 L=40 | ||
| 013 | I8-98134 990-A | PIPE; BRK,RR AXLE | 1 | 2203- | FTR | (B) L=1151 | ||
| 001 | I0-05212 700-0 | HOSE; FLEX,RR BRK | 1 | 2203- | FTR | L=700 | ||
| 001 | I0-05212 700-0 | HOSE; FLEX,RR BRK | 1 | 2203- | FTR | L=700 | ||
| 002 | I9-09920 472-0 | GASKET; FLEX HOSE,RR BRK | 1 | 2203- | FTR | ID=9 OD=17 | ||
| 033 | I1-47428 745-0 | PIPE; OIL,UNION TO UNION | 1 | 2203- | FTR | L=3083; FTR90 S | ||
| 033 | I1-47428 745-0 | PIPE; OIL,UNION TO UNION | 1 | 2203- | FTR | L=3083; FTR90 S | ||
| 039 | I1-47427 962-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 2203- | FTR | L=2086 | ||
| 005 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,RR BRK | 2 | 2203- | FTR | M8X25 FLANGE | ||
| 032 | I0-92113 006-0 | UNION; OIL PIPE | 1 | 2203- | FTR | M12 L=40 | ||
| 138 | I8-98084 317-A | PIPE; HYDRAULIC UNIT | 1 | 2203- | FTR | L=504 | ||
| 046 | I9-09840 280-0 | NUT; UNION,OIL PIPE | 1 | 2203- | FTR | M12 | ||
| 013 | I8-98134 990-A | PIPE; BRK,RR AXLE | 1 | 2203- | FTR | (B) L=1151 | ||
| 003 | I1-47465 251-0 | BRACKET; FLEX HOSE,RR BRK | 1 | 2203- | FTR | |||
| 002 | I9-09920 472-0 | GASKET; FLEX HOSE,RR BRK | 1 | 2203- | FTR | ID=9 OD=17 | ||
| 033 | I1-47427 962-0 | PIPE; OIL,UNION TO UNION | 1 | 2203- | FTR | L=2083; FTR90 P | ||
| 046 | I9-09840 280-0 | NUT; UNION,OIL PIPE | 1 | 2203- | FTR | M12 | ||
| 075 | I0-92125 206-0 | UNION; OIL PIPE | 1 | 2203- | FTR | M12 ELBOW | ||
| 004 | I7-05108 010-A | NUT; BRKT,FLEX HOSE,RR BRK | 2 | 2203- | FTR | (A) M8 FLANGE | ||
| 004 | I9-09840 280-0 | NUT; BRKT,FLEX HOSE,RR BRK | 1 | 2203- | FTR | (B) M12 | ||
| 075 | I0-92125 206-0 | UNION; OIL PIPE | 1 | 2203- | FTR | M12 ELBOW | ||
| 006 | I0-91510 812-0 | WASHER; LK,FLEX HOSE | 1 | 2203- | FTR | ID=12.2 | ||
| 138 | I8-98084 317-A | PIPE; HYDRAULIC UNIT | 1 | 2203- | FTR | L=504 | ||
| 033 | I8-98315 274-A | PIPE; OIL,UNION TO UNION | 1 | 2203- | FTR | L=3533 | ||
| 013 | I8-98134 989-A | PIPE; BRK,RR AXLE | 1 | 2203- | FTR | (A) L=1007 | ||
| 033 | I8-98315 274-A | PIPE; OIL,UNION TO UNION | 1 | 2203- | FTR | L=3533 | ||
| 004 | I9-09840 280-0 | NUT; BRKT,FLEX HOSE,RR BRK | 1 | 2203- | FTR | (B) M12 | ||
| 013 | I8-98134 989-A | PIPE; BRK,RR AXLE | 1 | 2203- | FTR | (A) L=1007 | ||
| 039 | I1-47427 962-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 2203- | FTR | L=2086 | ||
| 006 | I0-91510 812-0 | WASHER; LK,FLEX HOSE | 1 | 2203- | FTR | ID=12.2 | ||
| 005 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,RR BRK | 2 | 2203- | FTR | M8X25 FLANGE | ||
| 033 | I1-47427 962-0 | PIPE; OIL,UNION TO UNION | 1 | 2203- | FTR | L=2083; FTR90 P | ||
| 003 | I1-47465 251-0 | BRACKET; FLEX HOSE,RR BRK | 1 | 2203- | FTR | |||
| 004 | I7-05108 010-A | NUT; BRKT,FLEX HOSE,RR BRK | 2 | 2203- | FTR | (A) M8 FLANGE |
