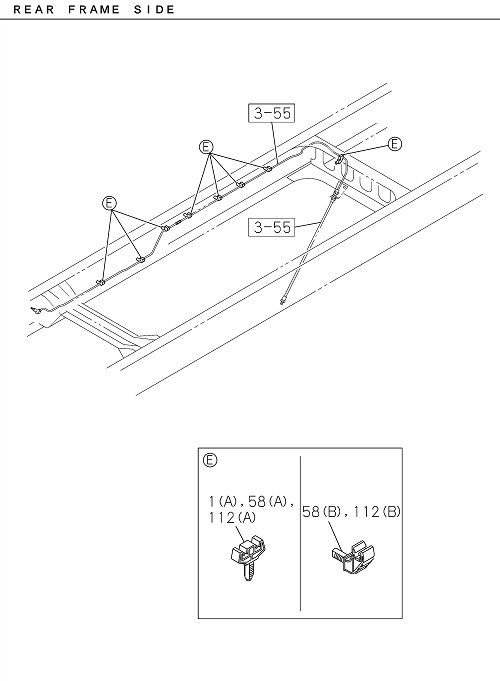

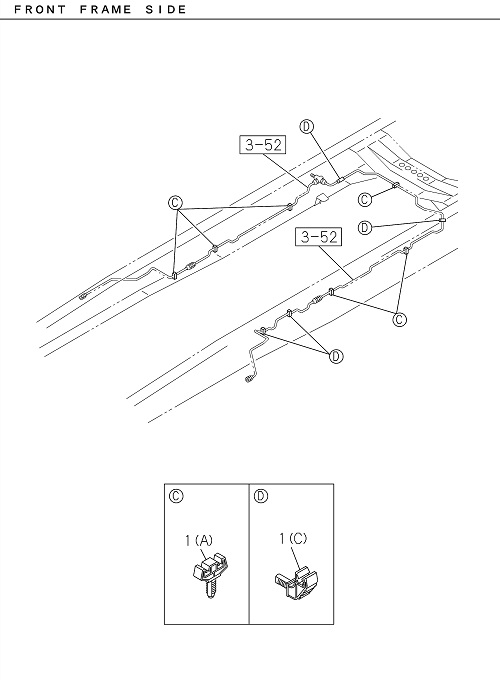

3-58 | FIXING PARTS; OIL PIPING
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-98012 254-1 | CLIP; OIL PIPE TO BODY | 4 | 2203- | FTR | (A) ID=4.76 & 6.35 | ||

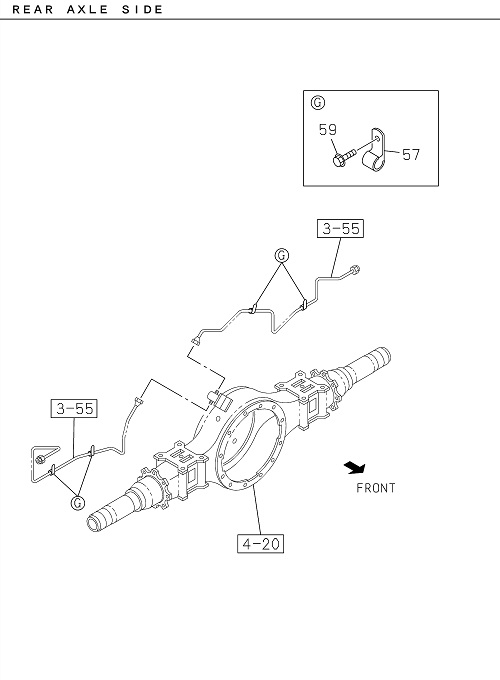

| 057 | I0-95234 635-0 | CLIP; BRK PIPE,RR AXLE | 4 | 2203- | FTR | ID=7 L=20 | ||
| 058 | I1-09701 247-1 | CLIP; OIL PIPE | 6 | 2203- | FTR | (B) ID=6.35 | ||
| 082 | I9-09524 625-0 | CLIP; OIL PIPE | 1 | 2203- | FTR | (D) ID=7 L=16 | ||
| 112 | I1-09701 247-1 | CLIP; OIL PIPE | 7 | 2203- | FTR | (B) ID=6.35; FTR90 S | ||
| 082 | I1-09709 273-1 | CLIP; OIL PIPE | 1 | 2203- | FTR | (E) ID=6.35 & 6.35 | ||
| 112 | I1-09701 247-1 | CLIP; OIL PIPE | 5 | 2203- | FTR | (B) ID=6.35; FTR90 P | ||
| 058 | I1-09701 247-1 | CLIP; OIL PIPE | 6 | 2203- | FTR | (B) ID=6.35 | ||
| 068 | I1-47475 519-0 | BRACKET; CLIP | 1 | 2203- | FTR | |||
| 056 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | FTR | M8X20 FLANGE | ||
| 112 | I1-09701 247-1 | CLIP; OIL PIPE | 9 | 2203- | FTR | (B) ID=6.35; FTR90 T | ||
| 059 | I0-28050 810-0 | BOLT; BRK PIPE,RR AXLE | 4 | 2203- | FTR | M8X10 FLANGE | ||
| 082 | I1-09709 273-1 | CLIP; OIL PIPE | 1 | 2203- | FTR | (E) ID=6.35 & 6.35 | ||
| 056 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | FTR | M8X20 FLANGE | ||
| 001 | I8-98012 254-1 | CLIP; OIL PIPE TO BODY | 4 | 2203- | FTR | (A) ID=4.76 & 6.35 | ||
| 112 | I1-09701 247-1 | CLIP; OIL PIPE | 5 | 2203- | FTR | (B) ID=6.35; FTR90 P | ||
| 067 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | FTR | M8 FLANGE | ||
| 057 | I0-95234 635-0 | CLIP; BRK PIPE,RR AXLE | 4 | 2203- | FTR | ID=7 L=20 | ||
| 001 | I1-09701 247-1 | CLIP; OIL PIPE TO BODY | 6 | 2203- | FTR | (C) ID=6.35 | ||
| 009 | I0-28650 830-0 | BOLT; BRKT | 1 | 2203- | FTR | M8X30 FLANGE | ||
| 112 | I1-09701 247-1 | CLIP; OIL PIPE | 7 | 2203- | FTR | (B) ID=6.35; FTR90 S | ||
| 009 | I0-28650 830-0 | BOLT; BRKT | 1 | 2203- | FTR | M8X30 FLANGE | ||
| 059 | I0-28050 810-0 | BOLT; BRK PIPE,RR AXLE | 4 | 2203- | FTR | M8X10 FLANGE | ||
| 082 | I9-09524 625-0 | CLIP; OIL PIPE | 1 | 2203- | FTR | (D) ID=7 L=16 | ||
| 068 | I1-47475 519-0 | BRACKET; CLIP | 1 | 2203- | FTR | |||
| 067 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | FTR | M8 FLANGE | ||
| 001 | I1-09701 247-1 | CLIP; OIL PIPE TO BODY | 6 | 2203- | FTR | (C) ID=6.35 |
