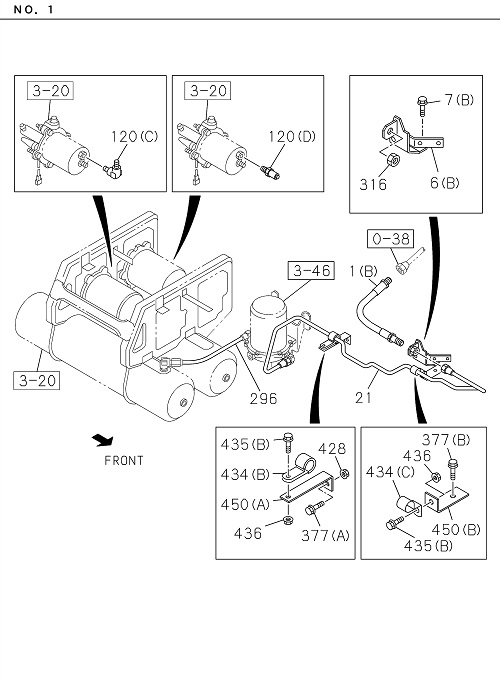

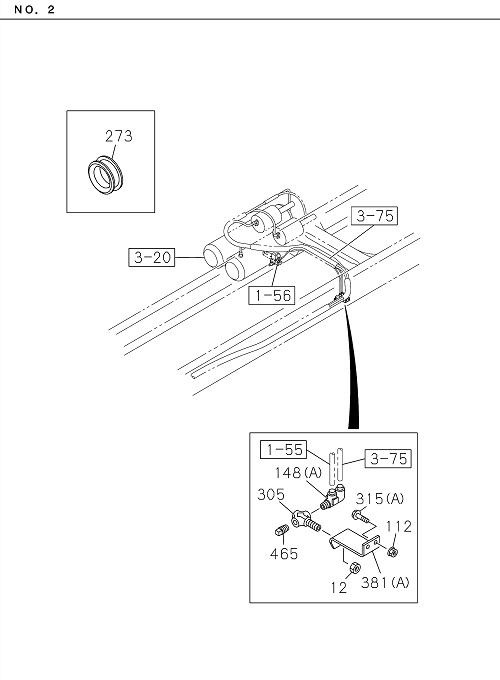

3-70 | BRAKE PIPING; AIR,AIR MASTER
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 434 | I0-95235 536-0 | CLIP | 3 | 2203- | FTR | (B) ID=16 L=20 | ||
| 381 | I8-98118 545-0 | BRACKET | 1 | 2203- | FTR | (A) | ||
| 316 | I0-91110 522-0 | NUT; FLEX HOSE | 1 | 2203- | FTR | M22 | ||
| 435 | I7-04508 025-A | BOLT; CLIP | 4 | 2203- | FTR | (B) M8X20 FLANGE | ||
| 007 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | FTR | (B) M8X30 FLANGE | ||
| 450 | I1-47479 064-1 | BRACKET; CLIP | 1 | 2203- | FTR | (B) L=65 H=25 | ||
| 120 | I1-09660 959-0 | CONNECTOR; AIR PIPE | 1 | 2203- | FTR | (C) DIN12 & R3/8 ELBOW | ||
| 001 | I1-09363 922-0 | HOSE; FLEX,AIR TANK | 1 | 2203- | FTR | (B) | ||
| 465 | I9-99204 513-0 | PLUG | 1 | 2203- | FTR | PT1/4 | ||
| 112 | I7-05108 010-A | NUT | 2 | 2203- | FTR | M8 FLANGE | ||
| 428 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | FTR | M8 FLANGE | ||
| 377 | I0-28650 825-0 | BOLT; BRKT FIX | 1 | 2203- | FTR | (B) M8X25 FLANGE | ||
| 006 | I8-98226 311-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 2203- | FTR | (B) | ||
| 148 | I8-98179 708-0 | CONNECTOR; UNION | 1 | 2203- | FTR | (A) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | FTR | OD=12 | ||
| 021 | I8-97675 646-A | PIPE; AIR,UNION TO AIR DRYER | 1 | 2203- | FTR | |||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FTR | OD=8 | ||
| 305 | I8-98120 049-0 | UNION ASM; NYLON TUBE | 1 | 2203- | FTR | M12 & RC1/4X2 2WAY | ||
| 120 | I1-09660 965-0 | CONNECTOR; AIR PIPE | 1 | 2203- | FTR | (D) DIN12 & R3/8 STRAIGHT | ||
| 273 | I1-09332 011-1 | GROMMET | 1 | 2203- | FTR | ID=28 OD=35 T=25 | ||
| 450 | I1-47475 530-0 | BRACKET; CLIP | 1 | 2203- | FTR | (A) L=90 B=25 | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | FTR | OD=12 | ||
| 428 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | FTR | M8 FLANGE | ||
| 315 | I0-28650 835-0 | BOLT; CONNECTOR | 2 | 2203- | FTR | (A) M8X35 FLANGE | ||
| 273 | I1-09332 011-1 | GROMMET | 1 | 2203- | FTR | ID=28 OD=35 T=25 | ||
| 377 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 2203- | FTR | (A) M8X30 FLANGE | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FTR | OD=8 | ||
| 377 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 2203- | FTR | (A) M8X30 FLANGE | ||
| 120 | I1-09660 959-0 | CONNECTOR; AIR PIPE | 1 | 2203- | FTR | (C) DIN12 & R3/8 ELBOW | ||
| 450 | I1-47479 064-1 | BRACKET; CLIP | 1 | 2203- | FTR | (B) L=65 H=25 | ||
| 377 | I0-28650 825-0 | BOLT; BRKT FIX | 1 | 2203- | FTR | (B) M8X25 FLANGE | ||
| 450 | I1-47475 530-0 | BRACKET; CLIP | 1 | 2203- | FTR | (A) L=90 B=25 | ||
| 434 | I1-09700 606-0 | CLIP | 1 | 2203- | FTR | (C) ID=15 H=24 L=20 | ||
| 315 | I0-28650 835-0 | BOLT; CONNECTOR | 2 | 2203- | FTR | (A) M8X35 FLANGE | ||
| 436 | I7-05108 010-A | NUT; CLIP | 4 | 2203- | FTR | M8 FLANGE | ||
| 434 | I0-95235 536-0 | CLIP | 3 | 2203- | FTR | (B) ID=16 L=20 | ||
| 012 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | FTR | M12 | ||
| 465 | I9-99204 513-0 | PLUG | 1 | 2203- | FTR | PT1/4 | ||
| 001 | I1-09363 922-0 | HOSE; FLEX,AIR TANK | 1 | 2203- | FTR | (B) | ||
| 316 | I0-91110 522-0 | NUT; FLEX HOSE | 1 | 2203- | FTR | M22 | ||
| 021 | I8-97675 646-A | PIPE; AIR,UNION TO AIR DRYER | 1 | 2203- | FTR | |||
| 007 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | FTR | (B) M8X30 FLANGE | ||
| 305 | I8-98120 049-0 | UNION ASM; NYLON TUBE | 1 | 2203- | FTR | M12 & RC1/4X2 2WAY | ||
| 148 | I8-98179 708-0 | CONNECTOR; UNION | 1 | 2203- | FTR | (A) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 434 | I1-09700 606-0 | CLIP | 1 | 2203- | FTR | (C) ID=15 H=24 L=20 | ||
| 435 | I7-04508 025-A | BOLT; CLIP | 4 | 2203- | FTR | (B) M8X20 FLANGE | ||
| 006 | I8-98226 311-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 2203- | FTR | (B) | ||
| 436 | I7-05108 010-A | NUT; CLIP | 4 | 2203- | FTR | M8 FLANGE | ||
| 120 | I1-09660 965-0 | CONNECTOR; AIR PIPE | 1 | 2203- | FTR | (D) DIN12 & R3/8 STRAIGHT | ||
| 381 | I8-98118 545-0 | BRACKET | 1 | 2203- | FTR | (A) | ||
| 112 | I7-05108 010-A | NUT | 2 | 2203- | FTR | M8 FLANGE | ||
| 012 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | FTR | M12 |
