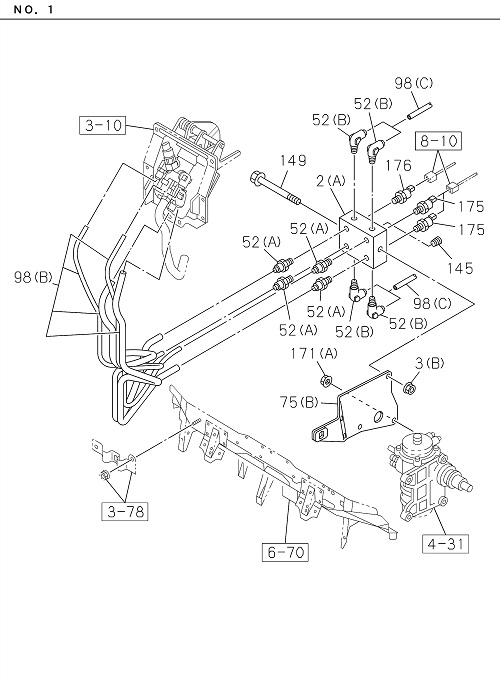

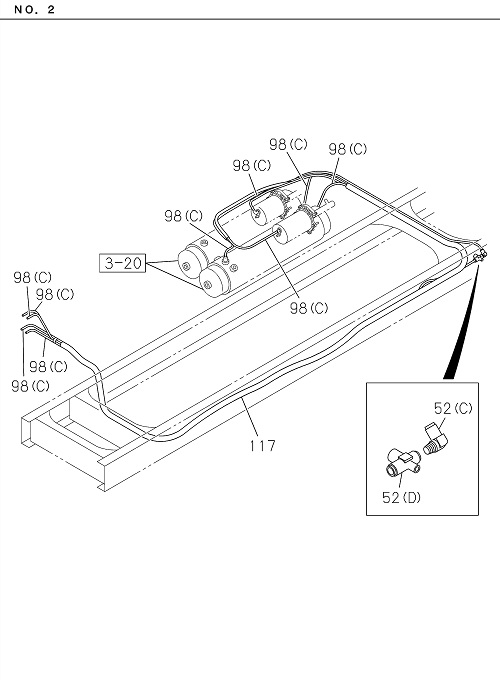

3-75 | BRAKE PIPING; AIR,FRONT
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 003 | I7-05108 010-A | NUT; PIPE UNION | 1 | 2203- | FTR | (B) M8 FLANGE | ||
| 176 | I8-98010 857-0 | SWITCH; AIR PRESS | 1 | 2203- | FTR | STAMP 0.3 | ||
| 171 | I7-05110 010-A | NUT; BRACKET | 2 | 2203- | FTR | (A) M10 FLANGE | ||
| 098 | I8-98139 141-A | TUBE; NYLON | 1 | 2203- | FTR | (B) | ||
| 117 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 2203- | FTR | ID=28 | ||
| 002 | I8-98057 394-1 | UNION; AIR PIPE | 1 | 2203- | FTR | (A) | ||
| 052 | I1-09660 958-0 | CONNECTOR; NYLON TUBE | 4 | 2203- | FTR | (B) DIN12 & R1/4 ELBOW | ||
| 002 | I8-98057 394-1 | UNION; AIR PIPE | 1 | 2203- | FTR | (A) | ||
| 145 | I9-99204 513-0 | PLUG | 1 | 2203- | FTR | PT1/4 | ||
| 098 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FTR | (C) OD=8 | ||
| 145 | I9-99204 513-0 | PLUG | 1 | 2203- | FTR | PT1/4 | ||
| 075 | I8-98099 485-1 | BRACKET; UNION | 1 | 2203- | FTR | (B) | ||
| 175 | I1-80220 023-1 | SENSOR; AIR PRESS | 2 | 2203- | FTR | THREAD R1/4 SENSOR AIR METER | ||
| 117 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 2203- | FTR | ID=32 | ||
| 098 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FTR | (C) OD=8 | ||
| 117 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | FTR | ID=13 | ||
| 098 | I1-87411 014-0 | TUBE; NYLON | AR | 2203- | FTR | (C) OD=12 | ||
| 117 | I1-87411 034-0 | TUBE; CORRUGATE | AR | 2203- | FTR | ID=28 | ||
| 117 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 2203- | FTR | ID=32 | ||
| 052 | I1-09660 967-0 | CONNECTOR; NYLON TUBE | 4 | 2203- | FTR | (A) DIN12 & R1/4 STRAIGHT | ||
| 171 | I7-05110 010-A | NUT; BRACKET | 2 | 2203- | FTR | (A) M10 FLANGE | ||
| 117 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | FTR | ID=13 | ||
| 052 | I1-09660 958-0 | CONNECTOR; NYLON TUBE | 4 | 2203- | FTR | (B) DIN12 & R1/4 ELBOW | ||
| 098 | I8-98139 141-A | TUBE; NYLON | 1 | 2203- | FTR | (B) | ||
| 075 | I8-98099 485-1 | BRACKET; UNION | 1 | 2203- | FTR | (B) | ||
| 003 | I7-05108 010-A | NUT; PIPE UNION | 1 | 2203- | FTR | (B) M8 FLANGE | ||
| 149 | I0-28050 800-0 | BOLT; UNION | 1 | 2203- | FTR | M8X100 FLANGE | ||
| 117 | I1-87411 034-0 | TUBE; CORRUGATE | AR | 2203- | FTR | ID=28 | ||
| 098 | I1-87411 014-0 | TUBE; NYLON | AR | 2203- | FTR | (C) OD=12 | ||
| 052 | I1-09660 967-0 | CONNECTOR; NYLON TUBE | 4 | 2203- | FTR | (A) DIN12 & R1/4 STRAIGHT | ||
| 117 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 2203- | FTR | ID=28 | ||
| 175 | I1-80220 023-1 | SENSOR; AIR PRESS | 2 | 2203- | FTR | THREAD R1/4 SENSOR AIR METER | ||
| 176 | I8-98010 857-0 | SWITCH; AIR PRESS | 1 | 2203- | FTR | STAMP 0.3 | ||
| 149 | I0-28050 800-0 | BOLT; UNION | 1 | 2203- | FTR | M8X100 FLANGE | ||
| 098 | I1-87411 013-0 | TUBE; NYLON | AR | 2203- | FTR | (C) OD=12 | ||
| 098 | I1-87411 013-0 | TUBE; NYLON | AR | 2203- | FTR | (C) OD=12 |
