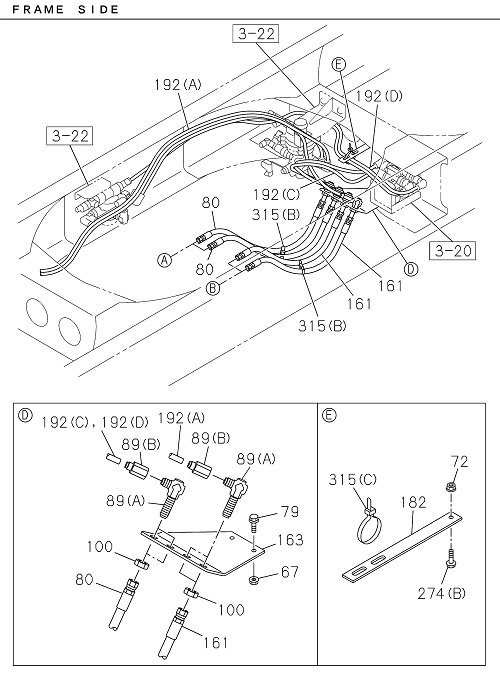

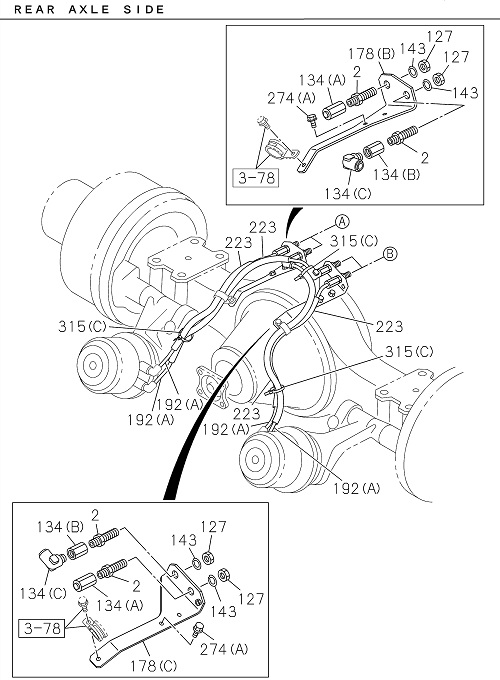

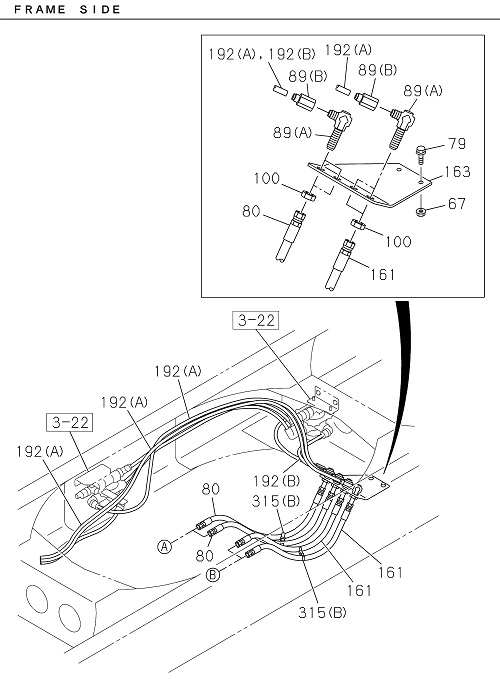

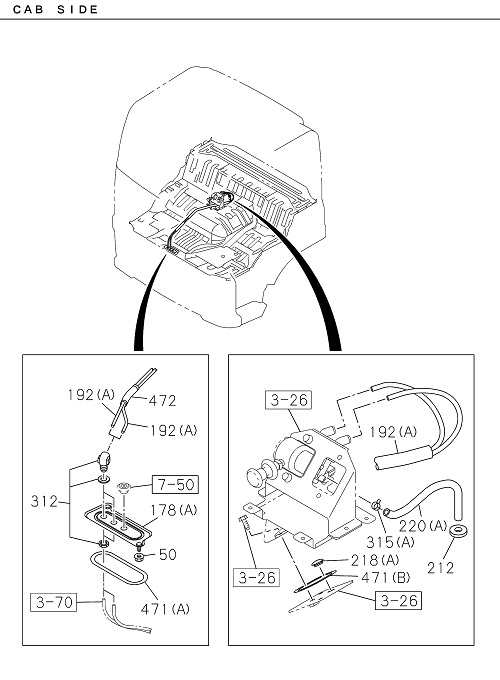

3-77 | BRAKE PIPING; AIR,REAR
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 050 | I7-05108 010-A | NUT; UNION BRKT | 2 | 2203- | FTR | M8 FLANGE | ||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 2203- | FTR | (A) | ||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 2203- | FTR | (A) | ||
| 315 | I1-09707 183-0 | CLIP | 26 | 2203- | FTR | (C) L=350 | ||
| 050 | I7-05108 010-A | NUT; UNION BRKT | 2 | 2203- | FTR | M8 FLANGE | ||
| 178 | I8-98017 052-1 | BRACKET; UNION | 1 | 2203- | FTR | (A) | ||
| 178 | I8-98017 052-1 | BRACKET; UNION | 1 | 2203- | FTR | (A) | ||
| 315 | I1-09707 183-0 | CLIP | 26 | 2203- | FTR | (C) L=350 |
