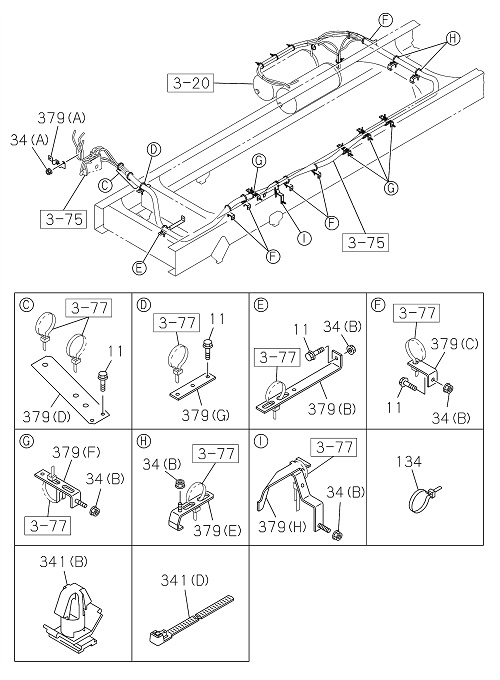

3-78 | FIXING PARTS; AIR PIPING
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 134 | I1-09707 183-0 | CLIP; AIR PIPE | 1 | 2203- | FTR | L=350 | ||
| 379 | I8-98177 873-0 | BRACKET; NYLON TUBE | 4 | 2203- | FTR | (F) | ||
| 341 | I5-09707 030-1 | CLIP; HARNESS | 2 | 2203- | FTR | (D) L=250 | ||
| 034 | I7-05108 010-A | NUT; BRKT | 13 | 2203- | FTR | (B) M8 FLANGE | ||
| 379 | I8-98166 032-0 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (H) | ||
| 379 | I1-47477 646-3 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (B) L=225 H=30 | ||
| 341 | I5-09707 030-1 | CLIP; HARNESS | 2 | 2203- | FTR | (D) L=250 | ||
| 379 | I1-47479 575-0 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (G) L=130 | ||
| 034 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | FTR | (A) M6 FLANGE | ||
| 341 | I1-09709 178-0 | CLIP; HARNESS | 1 | 2203- | FTR | (B) OD=9 H=6 | ||
| 011 | I0-28650 830-0 | BOLT; CLIP BRKT | 5 | 2203- | FTR | M8X30 FLANGE | ||
| 011 | I7-04508 025-A | BOLT; CLIP BRKT | 2 | 2203- | FTR | M8X20 FLANGE | ||
| 379 | I1-47479 575-0 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (G) L=130 | ||
| 379 | I1-47477 646-3 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (B) L=225 H=30 | ||
| 341 | I1-09709 178-0 | CLIP; HARNESS | 1 | 2203- | FTR | (B) OD=9 H=6 | ||
| 379 | I8-98047 730-0 | BRACKET; NYLON TUBE | 2 | 2203- | FTR | (E) | ||
| 379 | I1-47477 716-1 | BRACKET; NYLON TUBE | 5 | 2203- | FTR | (C) L=60 H=30 | ||
| 379 | I8-98166 032-0 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (H) | ||
| 034 | I7-05108 010-A | NUT; BRKT | 13 | 2203- | FTR | (B) M8 FLANGE | ||
| 379 | I8-98047 730-0 | BRACKET; NYLON TUBE | 2 | 2203- | FTR | (E) | ||
| 011 | I0-28650 830-0 | BOLT; CLIP BRKT | 5 | 2203- | FTR | M8X30 FLANGE | ||
| 134 | I1-09707 183-0 | CLIP; AIR PIPE | 1 | 2203- | FTR | L=350 | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (A) | ||
| 011 | I0-28650 825-0 | BOLT; CLIP BRKT | 2 | 2203- | FTR | M8X25 FLANGE | ||
| 379 | I8-98177 873-0 | BRACKET; NYLON TUBE | 4 | 2203- | FTR | (F) | ||
| 379 | I1-47477 716-1 | BRACKET; NYLON TUBE | 5 | 2203- | FTR | (C) L=60 H=30 | ||
| 379 | I8-98031 420-2 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (D) | ||
| 011 | I7-04508 025-A | BOLT; CLIP BRKT | 2 | 2203- | FTR | M8X20 FLANGE | ||
| 011 | I0-28650 825-0 | BOLT; CLIP BRKT | 2 | 2203- | FTR | M8X25 FLANGE | ||
| 379 | I8-98031 420-2 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (D) | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 2203- | FTR | (A) | ||
| 034 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | FTR | (A) M6 FLANGE |
