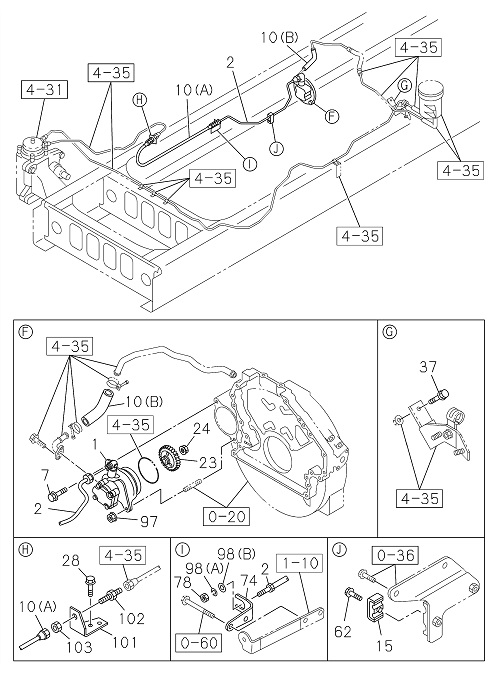

4-36 | POWER STEERING CONTROL; ENGINE SIDE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 010 | I1-21115 205-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 2203- | FTR | (B) | ||
| 028 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,P/S | 2 | 2203- | FTR | M8X25 FLANGE | ||
| 074 | I8-98060 044-1 | BRACKET; PIPE | 1 | 2203- | FTR | |||
| 010 | I1-09365 026-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 2203- | FTR | (A) L=460 | ||
| 001 | I8-98190 459-0 | PUMP ASM; OIL,P/S | 1 | 2203- | FTR | |||
| 098 | I0-91510 620-0 | WASHER; LK,BRKT | 1 | 2203- | FTR | (A) ID=20.2 | ||
| 002 | I8-98086 746-A | PIPE ASM; OIL,SUCTION | 1 | 2203- | FTR | |||
| 103 | I0-91111 522-0 | NUT; UNION | 1 | 2203- | FTR | M22 | ||
| 102 | I1-09654 167-1 | UNION | 1 | 2203- | FTR | M20 & M22 STRAIGHT | ||
| 062 | I0-28650 630-0 | BOLT; CLIP | 1 | 2203- | FTR | M6X30 FLANGE | ||
| 024 | I0-91180 112-0 | NUT; GEAR,P/S PUMP | 1 | 2203- | FTR | M12 FLANGE | ||
| 101 | I8-98183 677-0 | BRACKET; UNION | 1 | 2203- | FTR | |||
| 103 | I0-91111 522-0 | NUT; UNION | 1 | 2203- | FTR | M22 | ||
| 098 | I0-91610 520-0 | WASHER; LK,BRKT | 1 | 2203- | FTR | (B) ID=21 | ||
| 010 | I1-21115 205-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 2203- | FTR | (B) | ||
| 098 | I0-91610 520-0 | WASHER; LK,BRKT | 1 | 2203- | FTR | (B) ID=21 | ||
| 097 | I0-91180 110-0 | NUT; OIL PUMP,P/S | 1 | 2203- | FTR | M10 FLANGE | ||
| 062 | I0-28650 630-0 | BOLT; CLIP | 1 | 2203- | FTR | M6X30 FLANGE | ||
| 037 | I0-28650 825-0 | BOLT; P/S PUMP | 1 | 2203- | FTR | M8X25 FLANGE | ||
| 102 | I1-09654 167-1 | UNION | 1 | 2203- | FTR | M20 & M22 STRAIGHT | ||
| 024 | I0-91180 112-0 | NUT; GEAR,P/S PUMP | 1 | 2203- | FTR | M12 FLANGE | ||
| 078 | I0-91111 520-0 | NUT; BRKT | 1 | 2203- | FTR | M20 | ||
| 028 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,P/S | 2 | 2203- | FTR | M8X25 FLANGE | ||
| 023 | I8-94390 842-1 | GEAR; OIL PUMP | 1 | 2203- | FTR | Z=30 | ||
| 015 | I1-09701 212-2 | CLIP; OIL PIPE SUCTION | 1 | 2203- | FTR | ID=9 & 9 L=25 | ||
| 002 | I8-98086 746-A | PIPE ASM; OIL,SUCTION | 1 | 2203- | FTR | |||
| 097 | I0-91180 110-0 | NUT; OIL PUMP,P/S | 1 | 2203- | FTR | M10 FLANGE | ||
| 078 | I0-91111 520-0 | NUT; BRKT | 1 | 2203- | FTR | M20 | ||
| 007 | I0-28751 030-0 | BOLT; OIL PUMP,P/S | 1 | 2203- | FTR | M10X30 FLANGE | ||
| 101 | I8-98183 677-0 | BRACKET; UNION | 1 | 2203- | FTR | |||
| 074 | I8-98060 044-1 | BRACKET; PIPE | 1 | 2203- | FTR | |||
| 007 | I0-28751 030-0 | BOLT; OIL PUMP,P/S | 1 | 2203- | FTR | M10X30 FLANGE | ||
| 037 | I0-28650 825-0 | BOLT; P/S PUMP | 1 | 2203- | FTR | M8X25 FLANGE | ||
| 098 | I0-91510 620-0 | WASHER; LK,BRKT | 1 | 2203- | FTR | (A) ID=20.2 | ||
| 001 | I8-98190 459-0 | PUMP ASM; OIL,P/S | 1 | 2203- | FTR | |||
| 015 | I1-09701 212-2 | CLIP; OIL PIPE SUCTION | 1 | 2203- | FTR | ID=9 & 9 L=25 | ||
| 010 | I1-09365 026-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 2203- | FTR | (A) L=460 | ||
| 023 | I8-94390 842-1 | GEAR; OIL PUMP | 1 | 2203- | FTR | Z=30 |
