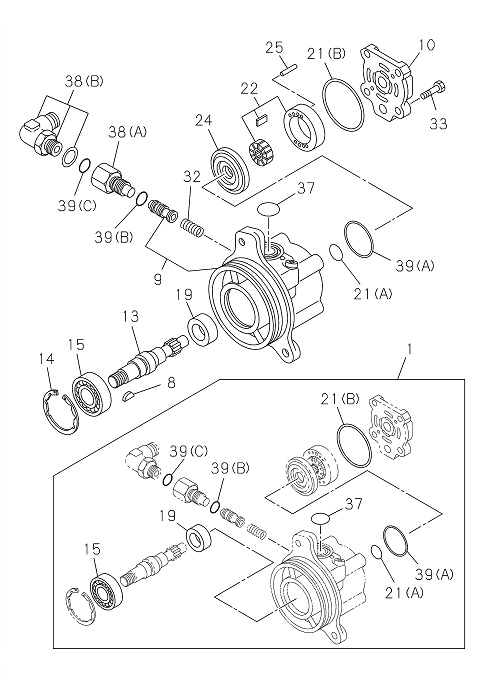

4-42 | POWER STEERING OIL PUMP
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 039 | I1-19519 308-0 | GASKET; OIL PUMP | 1 | 2203- | FTR | (C) | ||
| 014 | I1-19519 257-0 | RING; RET,OIL PUMP | 1 | 2203- | FTR | |||
| 025 | I1-33739 345-0 | PIN; HSG,P/S | 2 | 2203- | FTR | |||
| 024 | I8-97182 103-0 | PLATE ASM; THRUST | 1 | 2203- | FTR | |||
| 022 | I1-19519 342-0 | CARTRIDGE ASM; OIL PUMP | 1 | 2203- | FTR | |||
| 032 | I8-94475 376-0 | SPRING; OIL PUMP | 1 | 2203- | FTR | |||
| 033 | I1-19519 346-1 | BOLT; COVER | 4 | 2203- | FTR | |||
| 019 | I1-19519 256-0 | SEAL; OIL,OIL PUMP | 1 | 2203- | FTR | |||
| 033 | I1-19519 346-1 | BOLT; COVER | 4 | 2203- | FTR | |||
| 039 | I9-48429 028-0 | GASKET; OIL PUMP | 1 | 2203- | FTR | (B) | ||
| 019 | I1-19519 256-0 | SEAL; OIL,OIL PUMP | 1 | 2203- | FTR | |||
| 025 | I1-33739 345-0 | PIN; HSG,P/S | 2 | 2203- | FTR | |||
| 001 | I1-85574 073-0 | REPAIR KIT; OIL PUMP | 1 | 2203- | FTR | |||
| 038 | I8-98072 517-0 | CONNECTOR; OIL PUMP | 1 | 2203- | FTR | (B) | ||
| 021 | I1-19519 345-0 | GASKET; FRT COVER TO BODY | 1 | 2203- | FTR | (B) | ||
| 032 | I8-94475 376-0 | SPRING; OIL PUMP | 1 | 2203- | FTR | |||
| 015 | I9-00090 211-0 | BEARING; BALL,OIL PUMP | 1 | 2203- | FTR | |||
| 008 | I9-19519 089-0 | KEY; SHAFT,OIL PUMP | 1 | 2203- | FTR | |||
| 008 | I9-19519 089-0 | KEY; SHAFT,OIL PUMP | 1 | 2203- | FTR | |||
| 021 | I8-97182 099-0 | GASKET; FRT COVER TO BODY | 1 | 2203- | FTR | (A) | ||
| 001 | I1-85574 073-0 | REPAIR KIT; OIL PUMP | 1 | 2203- | FTR | |||
| 038 | I8-98162 180-0 | CONNECTOR; OIL PUMP | 1 | 2203- | FTR | (A) | ||
| 009 | I1-19511 162-1 | BODY ASM; FRT,OIL PUMP | 1 | 2203- | FTR | |||
| 039 | I1-19519 259-0 | GASKET; OIL PUMP | 1 | 2203- | FTR | (A) | ||
| 014 | I1-19519 257-0 | RING; RET,OIL PUMP | 1 | 2203- | FTR | |||
| 010 | I1-19511 160-0 | BODY ASM; RR,OIL PUMP | 1 | 2203- | FTR | |||
| 038 | I8-98072 517-0 | CONNECTOR; OIL PUMP | 1 | 2203- | FTR | (B) | ||
| 015 | I9-00090 211-0 | BEARING; BALL,OIL PUMP | 1 | 2203- | FTR | |||
| 021 | I1-19519 345-0 | GASKET; FRT COVER TO BODY | 1 | 2203- | FTR | (B) | ||
| 013 | I1-19521 038-0 | SHAFT KIT; RET | 1 | 2203- | FTR | |||
| 039 | I9-48429 028-0 | GASKET; OIL PUMP | 1 | 2203- | FTR | (B) | ||
| 039 | I1-19519 259-0 | GASKET; OIL PUMP | 1 | 2203- | FTR | (A) | ||
| 039 | I1-19519 308-0 | GASKET; OIL PUMP | 1 | 2203- | FTR | (C) | ||
| 037 | I1-33739 070-0 | GASKET; PIPE CONN,OIL PUMP | 1 | 2203- | FTR | |||
| 009 | I1-19511 162-1 | BODY ASM; FRT,OIL PUMP | 1 | 2203- | FTR | |||
| 021 | I8-97182 099-0 | GASKET; FRT COVER TO BODY | 1 | 2203- | FTR | (A) | ||
| 013 | I1-19521 038-0 | SHAFT KIT; RET | 1 | 2203- | FTR | |||
| 022 | I1-19519 342-0 | CARTRIDGE ASM; OIL PUMP | 1 | 2203- | FTR | |||
| 010 | I1-19511 160-0 | BODY ASM; RR,OIL PUMP | 1 | 2203- | FTR | |||
| 038 | I8-98162 180-0 | CONNECTOR; OIL PUMP | 1 | 2203- | FTR | (A) | ||
| 024 | I8-97182 103-0 | PLATE ASM; THRUST | 1 | 2203- | FTR | |||
| 037 | I1-33739 070-0 | GASKET; PIPE CONN,OIL PUMP | 1 | 2203- | FTR |
