| 192 |
I1-51177 284-A |
|
PIECE; DIST |
AR |
2203- |
|
FTR |
80X144 ID=17.5 |
| 197 |
I0-10856 280-0 |
|
PIN; FRT SPR,FRT |
12 |
2203- |
|
FTR |
(C) M12X80 |
| 111 |
I8-97948 500-0 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
L |
FTR |
|
| 183 |
I1-51162 029-5 |
|
SHACKLE; FRT SUSP |
2 |
2203- |
|
FTR |
|
| 073 |
I0-91110 516-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
FTR |
(D) M16 |
| 066 |
I0-91610 516-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
FTR |
(B) ID=17 OD=30 |
| 111 |
I8-97948 500-0 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
L |
FTR |
|
| 208 |
I1-87870 498-1 |
|
U-BOLT SET; FRT SPRING |
4 |
2203- |
|
FTR |
L=210 |
| 002 |
I7-65020 318-A |
|

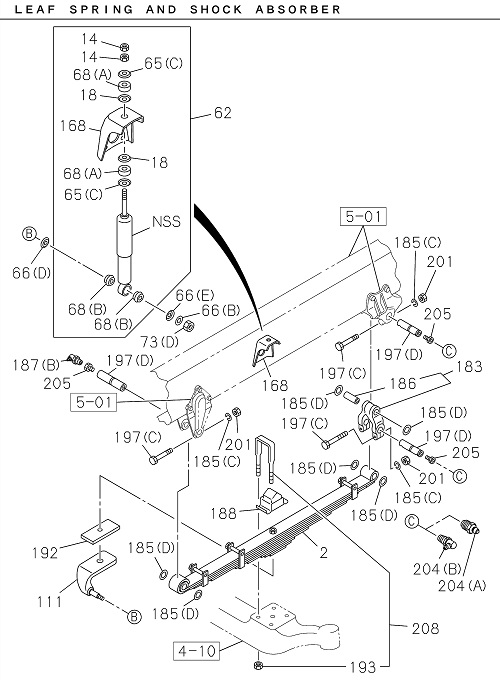

SPRING ASM; LEAF,FRT |
2 |
2203- |
|
FTR |
|
| 068 |
I1-51631 009-1 |
|
BUSHING; S/ABS |
4 |
2203- |
|
FTR |
(B) |
| 204 |
I0-90301 410-0 |
|
NIPPLE; GREASE,RR |
2 |
2203- |
|
FTR |
(A) PT1/8 STRAIGHT |
| 205 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
6 |
2203- |
|
FTR |
|
| 183 |
I1-51162 029-5 |
|
SHACKLE; FRT SUSP |
2 |
2203- |
|
FTR |
|
| 111 |
I8-97948 499-0 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
R |
FTR |
|
| 065 |
I9-51631 051-0 |
|
WASHER; S/ABS |
4 |
2203- |
|
FTR |
(C) ID=14.5 |
| 208 |
I1-87870 498-1 |
|
U-BOLT SET; FRT SPRING |
4 |
2203- |
|
FTR |
L=210 |
| 068 |
I9-51631 050-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
FTR |
(A) |
| 185 |
I1-51169 018-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
FTR |
(D) ID=32.4 |
| 204 |
I0-90301 410-0 |
|
NIPPLE; GREASE,RR |
2 |
2203- |
|
FTR |
(A) PT1/8 STRAIGHT |
| 186 |
I1-51351 009-B |
|
BUSHING; SHACKLE |
2 |
2203- |
|
FTR |
OD=38 |
| 187 |
I0-90301 610-0 |
|

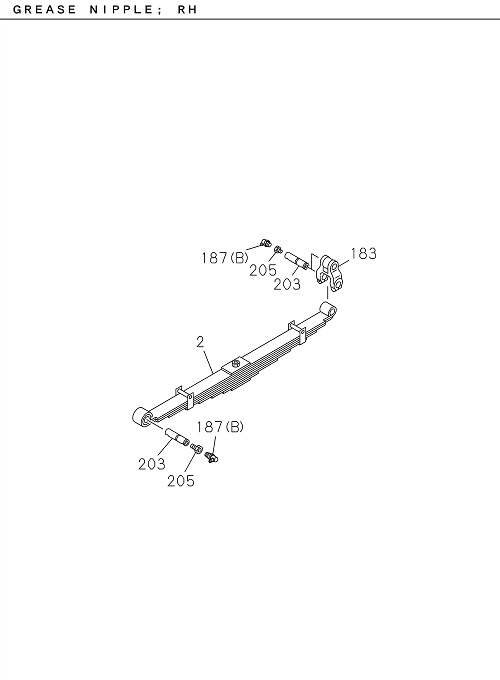

NIPPLE; GREASE,FRT |
2 |
2203- |
|
FTR |
(B) PT1/8 ELBOW |
| 068 |
I1-51631 009-1 |
|
BUSHING; S/ABS |
4 |
2203- |
|
FTR |
(B) |
| 018 |
I1-51631 022-0 |
|
WASHER; CENTERING,S/ABS |
4 |
2203- |
|
FTR |
ID=16.8 |
| 187 |
I0-90301 610-0 |
|
NIPPLE; GREASE,FRT |
2 |
2203- |
|
FTR |
(B) PT1/8 ELBOW |
| 192 |
I1-51177 284-1 |
|
PIECE; DIST |
AR |
2203- |
|
FTR |
80X144 ID=17.5 |
| 201 |
I0-91110 512-0 |
|
NUT; PIN LK |
12 |
2203- |
|
FTR |
M12 |
| 018 |
I1-51631 022-0 |
|
WASHER; CENTERING,S/ABS |
4 |
2203- |
|
FTR |
ID=16.8 |
| 193 |
I8-98179 318-0 |
|
NUT; U BOLT |
8 |
2203- |
|
FTR |
M22 |
| 204 |
I0-90301 510-0 |
|
NIPPLE; GREASE,RR |
2 |
2203- |
|
FTR |
(B) PT1/8 ELBOW 67.5 DEGREES |
| 197 |
I8-97948 141-0 |
|
PIN; FRT SPR,FRT |
6 |
2203- |
|
FTR |
(D) |
| 065 |
I9-51631 051-0 |
|
WASHER; S/ABS |
4 |
2203- |
|
FTR |
(C) ID=14.5 |
| 197 |
I0-10856 280-0 |
|
PIN; FRT SPR,FRT |
12 |
2203- |
|
FTR |
(C) M12X80 |
| 014 |
I8-98010 412-0 |
|
NUT; S/ABS,UPR |
4 |
2203- |
|
FTR |
M12 |
| 168 |
I1-51681 306-0 |
|
BRACKET; S/ABS,FRT SUSP |
2 |
2203- |
|
FTR |
|
| 068 |
I9-51631 050-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
FTR |
(A) |
| 062 |
I8-97924 225-0 |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
FTR |
|
| 014 |
I8-98010 412-0 |
|
NUT; S/ABS,UPR |
4 |
2203- |
|
FTR |
M12 |
| 193 |
I8-98179 318-0 |
|
NUT; U BOLT |
8 |
2203- |
|
FTR |
M22 |
| 111 |
I8-97948 499-0 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
R |
FTR |
|
| 204 |
I0-90301 510-0 |
|
NIPPLE; GREASE,RR |
2 |
2203- |
|
FTR |
(B) PT1/8 ELBOW 67.5 DEGREES |
| 185 |
I8-98179 315-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
FTR |
(C) ID=12.2 |
| 168 |
I1-51681 306-0 |
|
BRACKET; S/ABS,FRT SUSP |
2 |
2203- |
|
FTR |
|
| 197 |
I8-97948 141-0 |
|
PIN; FRT SPR,FRT |
6 |
2203- |
|
FTR |
(D) |
| 066 |
I1-51631 020-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
FTR |
(E) ID=17 |
| 185 |
I8-98179 315-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
FTR |
(C) ID=12.2 |
| 188 |
I1-51172 096-A |
|
RUBBER; CLAMP,U-BOLT,FRT SPR |
2 |
2203- |
|
FTR |
|
| 066 |
I1-51631 019-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
FTR |
(D) ID=23 |
| 205 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
6 |
2203- |
|
FTR |
|
| 188 |
I1-51172 096-A |
|
RUBBER; CLAMP,U-BOLT,FRT SPR |
2 |
2203- |
|
FTR |
|
| 066 |
I0-91610 516-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
FTR |
(B) ID=17 OD=30 |
| 002 |
I7-65020 318-A |
|
SPRING ASM; LEAF,FRT |
2 |
2203- |
|
FTR |
|
| 185 |
I1-51169 018-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
FTR |
(D) ID=32.4 |
| 073 |
I0-91110 516-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
FTR |
(D) M16 |
| 066 |
I1-51631 019-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
FTR |
(D) ID=23 |
| 186 |
I1-51351 009-B |
|
BUSHING; SHACKLE |
2 |
2203- |
|
FTR |
OD=38 |
| 201 |
I0-91110 512-0 |
|
NUT; PIN LK |
12 |
2203- |
|
FTR |
M12 |
| 066 |
I1-51631 020-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
FTR |
(E) ID=17 |
| 062 |
I8-97924 225-0 |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
FTR |
|
