PORTAL SPAREPART

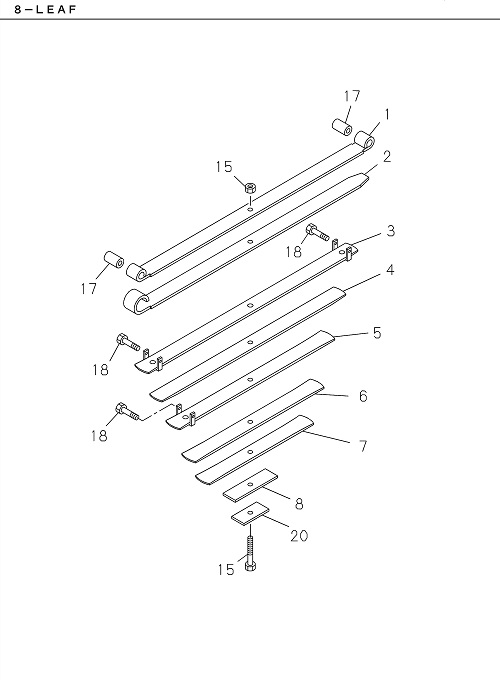

4-55 | FRONT LEAF SPRING

Partial Engine

GIGA E4

GIGA FTR E4

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
007 I7-66001 337-A SPRING; LEAF,NO 7,FRT 2 2203- FTR
018 I1-09000 328-A BOLT; CLIP,LEAF SPR,FRT 4 2203- FTR
005 I7-66001 335-A SPRING; LEAF,NO 5,FRT 2 2203- FTR
003 I7-66001 333-A SPRING; LEAF,NO 3,FRT 2 2203- FTR
017 I1-51351 009-A BUSHING; LEAF SPR,FRT 4 2203- FTR
018 I1-09000 328-A BOLT; CLIP,LEAF SPR,FRT 4 2203- FTR
004 I7-66001 334-A SPRING; LEAF,NO 4,FRT 2 2203- FTR
015 I1-51156 333-A BOLT; CENTER,LEAF SPR,FRT 2 2203- FTR
008 I7-66001 338-A SPRING; LEAF,NO 8,FRT 2 2203- FTR
017 I1-51351 009-A BUSHING; LEAF SPR,FRT 4 2203- FTR
001 I7-66001 331-A SPRING; LEAF,NO 1, FRT 2 2203- FTR
001 I7-66001 331-A SPRING; LEAF,NO 1, FRT 2 2203- FTR
006 I7-66001 336-A SPRING; LEAF,NO 6,FRT 2 2203- FTR
002 I7-66001 332-A SPRING; LEAF,NO 2,FRT 2 2203- FTR
015 I1-51156 333-A BOLT; CENTER,LEAF SPR,FRT 2 2203- FTR
006 I7-66001 336-A SPRING; LEAF,NO 6,FRT 2 2203- FTR
003 I7-66001 333-A SPRING; LEAF,NO 3,FRT 2 2203- FTR
020 I1-51177 295-A SEAT; LEAF SPR,FRT 2 2203- FTR
005 I7-66001 335-A SPRING; LEAF,NO 5,FRT 2 2203- FTR
004 I7-66001 334-A SPRING; LEAF,NO 4,FRT 2 2203- FTR
008 I7-66001 338-A SPRING; LEAF,NO 8,FRT 2 2203- FTR
020 I1-51177 295-A SEAT; LEAF SPR,FRT 2 2203- FTR
007 I7-66001 337-A SPRING; LEAF,NO 7,FRT 2 2203- FTR
002 I7-66001 332-A SPRING; LEAF,NO 2,FRT 2 2203- FTR
