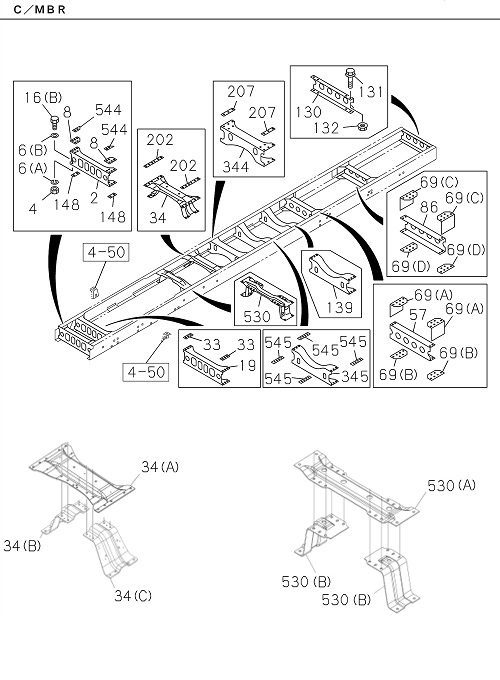

5-01 | FRAME AND OTHER PARTS
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 069 | I8-97695 126-A | GUSSET; RR SUSP,UPR | 1 | 2203- | FTR | (A) | ||
| 033 | I8-97948 140-0 | SPACER; 2ND C/MBR,UPR | 2 | 2203- | FTR | |||
| 034 | I8-97695 016-A | MEMBER; CROSS,3RD | 1 | 2203- | FTR | (A) | ||
| 130 | I8-97695 020-A | MEMBER; CROSS,END | 1 | 2203- | FTR | |||
| 544 | I8-97617 891-0 | PLATE; CAB FRT MTG | 2 | 2203- | FTR | |||
| 130 | I8-97695 020-A | MEMBER; CROSS,END | 1 | 2203- | FTR | |||
| 545 | I8-97611 244-0 | SPACER; 5TH C/MBR | 2 | 2203- | FTR | LOWER; FTR90 S | ||
| 345 | I8-97695 004-A | MEMBER; CROSS,5TH | 1 | 2203- | FTR | |||
| 069 | I8-97695 029-A | GUSSET; RR SUSP,UPR | 1 | 2203- | FTR | (C) | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 2203- | FTR | (B) ID=16.2 | ||
| 544 | I8-97617 891-0 | PLATE; CAB FRT MTG | 2 | 2203- | FTR | |||
| 033 | I8-97948 140-0 | SPACER; 2ND C/MBR,UPR | 2 | 2203- | FTR | |||
| 069 | I8-97695 127-A | GUSSET; RR SUSP,UPR | 1 | 2203- | FTR | (A) | ||
| 086 | I8-97695 019-A | MEMBER; CROSS,RR SUSP RR | 1 | 2203- | FTR | |||
| 039 | I8-97924 626-0 | BRACKET; FRT SPR,RR | 1 | 2203- | FTR | |||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 2203- | FTR | (B) M16 | ||
| 024 | I8-98018 840-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FTR | (D) | ||
| 039 | I8-97924 626-0 | BRACKET; FRT SPR,RR | 1 | 2203- | FTR | |||
| 006 | I8-98010 627-1 | WASHER; LK,1ST C/MBR | 2 | 2203- | FTR | (B) ID=15 | ||
| 344 | I8-97695 004-A | MEMBER; CROSS,4TH | 1 | 2203- | FTR | |||
| 138 | I0-91510 814-0 | WASHER; LK,BRKT | 20 | 2203- | FTR | ID=14.2 | ||
| 139 | I8-97695 004-A | MEMBER; CROSS,6TH | 1 | 2203- | FTR | |||
| 545 | I8-97611 245-0 | SPACER; 5TH C/MBR | 2 | 2203- | FTR | UPPER; FTR90 S; FTR90 T | ||
| 117 | I0-20951 450-0 | BOLT; STOPPER | 16 | 2203- | FTR | M14X50 | ||
| 103 | I1-53356 038-1 | STOPPER; SUB SPR | 2 | 2203- | FTR | (A) | ||
| 131 | I0-50541 230-0 | BOLT; END C/MBR | 4 | 2203- | FTR | M12X30 W/LK WASHER | ||
| 545 | I8-97611 245-0 | SPACER; 5TH C/MBR | 2 | 2203- | FTR | UPPER; FTR90 S; FTR90 T | ||
| 148 | I8-97611 039-0 | SPACER; C/MBR | 2 | 2203- | FTR | |||
| 024 | I8-98018 841-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FTR | (D) | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 2203- | FTR | (B) ID=16.2 | ||
| 008 | I8-97611 027-0 | GUSSET; 1ST C/MBR | 2 | 2203- | FTR | |||
| 103 | I1-53357 029-1 | STOPPER; SUB SPR | 2 | 2203- | FTR | (B) | ||
| 082 | I0-91110 514-0 | NUT; BRKT | 20 | 2203- | FTR | M14 | ||
| 202 | I8-97610 872-0 | SPACER; 3RD C/MBR | 2 | 2203- | FTR | |||
| 069 | I8-97695 026-A | GUSSET; RR SUSP,UPR | 2 | 2203- | FTR | (D) | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 28 | 2203- | FTR | (A) ID=15 | ||
| 039 | I8-97924 625-0 | BRACKET; FRT SPR,RR | 1 | 2203- | FTR | |||
| 544 | I8-97695 133-A | PLATE; CAB FRT MTG | 2 | 2203- | FTR | |||
| 069 | I8-97695 030-A | GUSSET; RR SUSP,UPR | 1 | 2203- | FTR | (C) | ||
| 105 | I1-53353 072-1 | BRACKET; RR SPR,RR | 2 | 2203- | FTR | |||
| 069 | I8-97695 025-A | GUSSET; RR SUSP,UPR | 2 | 2203- | FTR | (B) | ||
| 024 | I8-98018 840-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FTR | (D) | ||
| 019 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 2203- | FTR | |||
| 034 | I8-97695 017-A | MEMBER; CROSS,3RD | 1 | 2203- | FTR | (B) | ||
| 207 | I8-97611 244-0 | SPACER; 4TH C/MBR | 2 | 2203- | FTR | |||
| 069 | I8-97695 127-A | GUSSET; RR SUSP,UPR | 1 | 2203- | FTR | (A) | ||
| 011 | I8-97639 386-1 | BRACKET; ENG MTG | 1 | 2203- | FTR | (A) | ||
| 034 | I8-97695 017-A | MEMBER; CROSS,3RD | 1 | 2203- | FTR | (B) | ||
| 016 | I0-20851 440-0 | BOLT; 1ST C/MBR TO S/MBR | 2 | 2203- | FTR | (B) M14X40 | ||
| 011 | I8-97639 385-1 | BRACKET; ENG MTG | 1 | 2203- | FTR | (A) | ||
| 103 | I1-53357 029-1 | STOPPER; SUB SPR | 2 | 2203- | FTR | (B) | ||
| 023 | I0-20951 450-0 | BOLT; BRKT,SPR | 6 | 2203- | FTR | (C) M14X50 | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 28 | 2203- | FTR | (A) ID=15 | ||
| 057 | I8-97695 019-A | MEMBER; CROSS,RR SUSP FRT | 1 | 2203- | FTR | |||
| 118 | I0-91110 514-0 | NUT; STOPPER | 16 | 2203- | FTR | M14 | ||
| 023 | I0-20951 660-0 | BOLT; BRKT,SPR | 4 | 2203- | FTR | (D) M16X60 | ||
| 057 | I8-97695 019-A | MEMBER; CROSS,RR SUSP FRT | 1 | 2203- | FTR | |||
| 148 | I8-97611 039-0 | SPACER; C/MBR | 2 | 2203- | FTR | |||
| 018 | I0-91180 212-0 | NUT; BRKT,ENG MTG | 12 | 2203- | FTR | M12 FLANGE | ||
| 098 | I0-91510 814-0 | WASHER; LK,STOPPER | 16 | 2203- | FTR | ID=14.2 | ||
| 139 | I8-97695 004-A | MEMBER; CROSS,6TH | 1 | 2203- | FTR | |||
| 016 | I0-20851 440-0 | BOLT; 1ST C/MBR TO S/MBR | 2 | 2203- | FTR | (B) M14X40 | ||
| 117 | I0-20951 450-0 | BOLT; STOPPER | 16 | 2203- | FTR | M14X50 | ||
| 345 | I8-97695 004-A | MEMBER; CROSS,5TH | 1 | 2203- | FTR | |||
| 034 | I8-97695 018-A | MEMBER; CROSS,3RD | 1 | 2203- | FTR | (C) | ||
| 106 | I0-20951 450-0 | BOLT; BRKT | 20 | 2203- | FTR | M14X50 | ||
| 069 | I8-97695 025-A | GUSSET; RR SUSP,UPR | 2 | 2203- | FTR | (B) | ||
| 103 | I1-53356 038-1 | STOPPER; SUB SPR | 2 | 2203- | FTR | (A) | ||
| 069 | I8-97695 029-A | GUSSET; RR SUSP,UPR | 1 | 2203- | FTR | (C) | ||
| 002 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 2203- | FTR | |||
| 131 | I0-50541 230-0 | BOLT; END C/MBR | 4 | 2203- | FTR | M12X30 W/LK WASHER | ||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 2203- | FTR | (B) M16 | ||
| 039 | I8-97924 625-0 | BRACKET; FRT SPR,RR | 1 | 2203- | FTR | |||
| 024 | I8-98018 841-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FTR | (D) | ||
| 207 | I8-97611 244-0 | SPACER; 4TH C/MBR | 2 | 2203- | FTR | |||
| 101 | I1-53353 072-1 | BRACKET; RR SPR,FRT | 2 | 2203- | FTR | |||
| 002 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 2203- | FTR | |||
| 013 | I0-28661 235-0 | BOLT; BRKT,ENG MTG | 12 | 2203- | FTR | M12X35 FLANGE | ||
| 069 | I8-97695 126-A | GUSSET; RR SUSP,UPR | 1 | 2203- | FTR | (A) | ||
| 026 | I0-91110 514-0 | NUT; BRKT,SPR | 14 | 2203- | FTR | (A) M14 | ||
| 202 | I8-97610 872-0 | SPACER; 3RD C/MBR | 2 | 2203- | FTR | |||
| 008 | I8-97611 027-0 | GUSSET; 1ST C/MBR | 2 | 2203- | FTR | |||
| 105 | I1-53353 072-1 | BRACKET; RR SPR,RR | 2 | 2203- | FTR | |||
| 344 | I8-97695 004-A | MEMBER; CROSS,4TH | 1 | 2203- | FTR | |||
| 004 | I0-91110 514-0 | NUT; 1ST C/MBR TO S/MBR | 2 | 2203- | FTR | M14 | ||
| 106 | I0-20951 450-0 | BOLT; BRKT | 20 | 2203- | FTR | M14X50 | ||
| 019 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 2203- | FTR | |||
| 098 | I0-91510 814-0 | WASHER; LK,STOPPER | 16 | 2203- | FTR | ID=14.2 | ||
| 069 | I8-97695 030-A | GUSSET; RR SUSP,UPR | 1 | 2203- | FTR | (C) | ||
| 530 | I8-97695 024-A | MEMBER; CROSS,T/M | 1 | 2203- | FTR | (B) | ||
| 046 | I0-20951 450-0 | BOLT; BRKT FIX | 8 | 2203- | FTR | M14X50 | ||
| 004 | I0-91110 514-0 | NUT; 1ST C/MBR TO S/MBR | 2 | 2203- | FTR | M14 | ||
| 018 | I0-91180 212-0 | NUT; BRKT,ENG MTG | 12 | 2203- | FTR | M12 FLANGE | ||
| 069 | I8-97695 026-A | GUSSET; RR SUSP,UPR | 2 | 2203- | FTR | (D) | ||
| 082 | I0-91110 514-0 | NUT; BRKT | 20 | 2203- | FTR | M14 | ||
| 023 | I0-20951 660-0 | BOLT; BRKT,SPR | 4 | 2203- | FTR | (D) M16X60 | ||
| 132 | I0-91110 512-0 | NUT; END C/MBR | 4 | 2203- | FTR | M12 | ||
| 034 | I8-97695 016-A | MEMBER; CROSS,3RD | 1 | 2203- | FTR | (A) | ||
| 132 | I0-91110 512-0 | NUT; END C/MBR | 4 | 2203- | FTR | M12 | ||
| 530 | I8-97695 023-A | MEMBER; CROSS,T/M | 1 | 2203- | FTR | (A) | ||
| 011 | I8-97639 385-1 | BRACKET; ENG MTG | 1 | 2203- | FTR | (A) | ||
| 530 | I8-97695 023-A | MEMBER; CROSS,T/M | 1 | 2203- | FTR | (A) | ||
| 544 | I8-97695 133-A | PLATE; CAB FRT MTG | 2 | 2203- | FTR | |||
| 006 | I8-98010 627-1 | WASHER; LK,1ST C/MBR | 2 | 2203- | FTR | (B) ID=15 | ||
| 101 | I1-53353 072-1 | BRACKET; RR SPR,FRT | 2 | 2203- | FTR | |||
| 086 | I8-97695 019-A | MEMBER; CROSS,RR SUSP RR | 1 | 2203- | FTR | |||
| 011 | I8-97639 386-1 | BRACKET; ENG MTG | 1 | 2203- | FTR | (A) | ||
| 023 | I0-20951 450-0 | BOLT; BRKT,SPR | 6 | 2203- | FTR | (C) M14X50 | ||
| 545 | I8-97611 244-0 | SPACER; 5TH C/MBR | 2 | 2203- | FTR | LOWER; FTR90 S | ||
| 006 | I0-91510 814-0 | WASHER; LK,1ST C/MBR | 2 | 2203- | FTR | (A) ID=14.2 | ||
| 013 | I0-28661 235-0 | BOLT; BRKT,ENG MTG | 12 | 2203- | FTR | M12X35 FLANGE | ||
| 138 | I0-91510 814-0 | WASHER; LK,BRKT | 20 | 2203- | FTR | ID=14.2 | ||
| 046 | I0-20951 450-0 | BOLT; BRKT FIX | 8 | 2203- | FTR | M14X50 | ||
| 530 | I8-97695 024-A | MEMBER; CROSS,T/M | 1 | 2203- | FTR | (B) | ||
| 006 | I0-91510 814-0 | WASHER; LK,1ST C/MBR | 2 | 2203- | FTR | (A) ID=14.2 | ||
| 034 | I8-97695 018-A | MEMBER; CROSS,3RD | 1 | 2203- | FTR | (C) | ||
| 118 | I0-91110 514-0 | NUT; STOPPER | 16 | 2203- | FTR | M14 | ||
| 026 | I0-91110 514-0 | NUT; BRKT,SPR | 14 | 2203- | FTR | (A) M14 |
