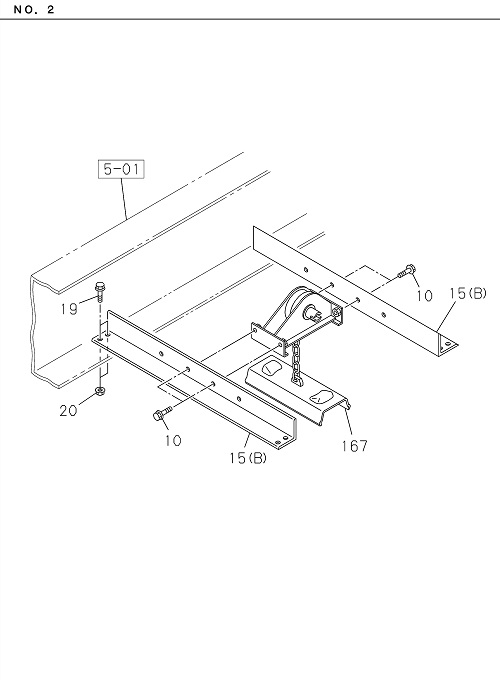

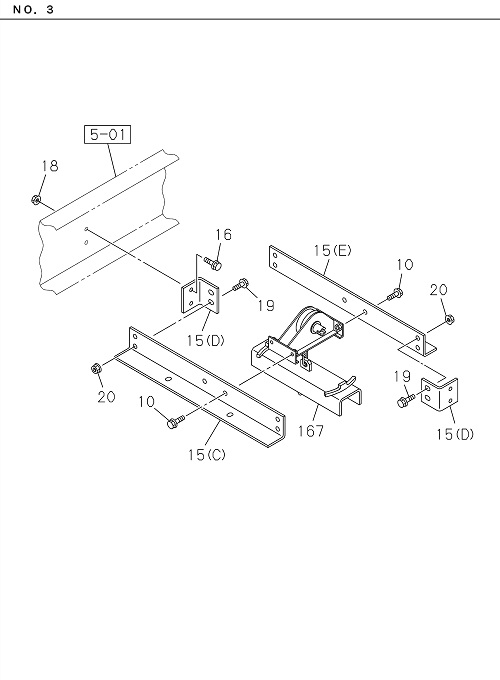

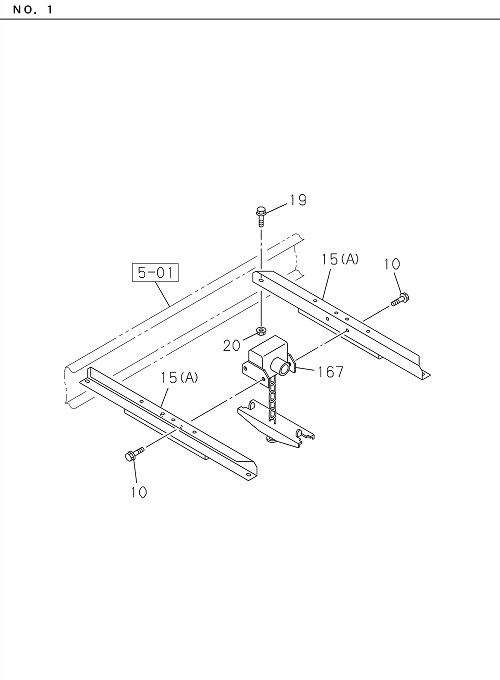

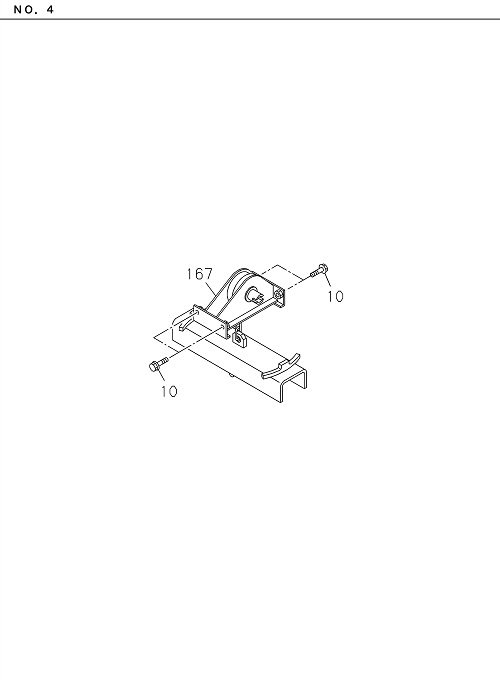

5-30 | SPARE TIRE CARRIER AND COVER
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 167 | I8-97948 022-0 | HANGER; TIRE | 1 | 2203- | FTR | |||
| 020 | I7-05110 010-A | NUT; C/MBR | 8 | 2203- | FTR | M10 FLANGE | ||
| 010 | I0-28651 230-0 | BOLT; TIRE HANGER | 4 | 2203- | FTR | M12X30 FLANGE | ||
| 010 | I0-28651 230-0 | BOLT; TIRE HANGER | 4 | 2203- | FTR | M12X30 FLANGE | ||
| 167 | I8-97948 022-0 | HANGER; TIRE | 1 | 2203- | FTR | |||
| 020 | I7-05110 010-A | NUT; C/MBR | 8 | 2203- | FTR | M10 FLANGE | ||
| 019 | I0-28051 025-0 | BOLT; C/MBR | 8 | 2203- | FTR | M10X25 FLANGE | ||
| 015 | I1-53631 394-0 | MEMBER; CROSS,SPARE TIRE | 2 | 2203- | FTR | (B) | ||
| 019 | I0-28051 025-0 | BOLT; C/MBR | 8 | 2203- | FTR | M10X25 FLANGE | ||
| 015 | I1-53631 394-0 | MEMBER; CROSS,SPARE TIRE | 2 | 2203- | FTR | (B) |
