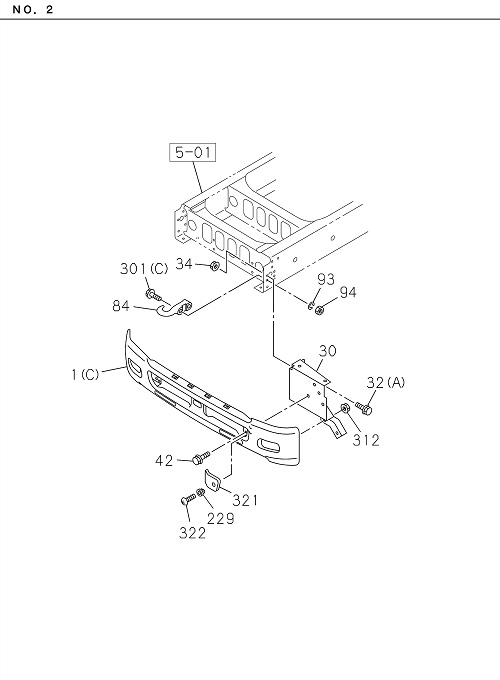

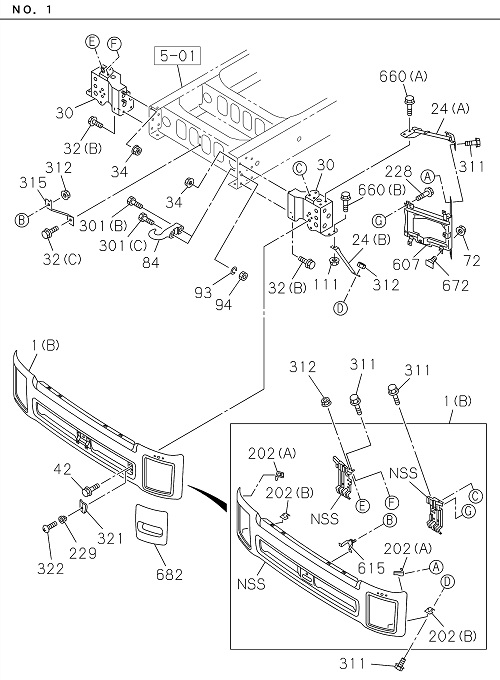

6-01 | FRONT BUMPER
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97675 445-0 | BUMPER ASM; FRT | 1 | 2203- | FTR | (C) | ||
| 034 | I0-91180 212-0 | NUT; BRKT,BUMPER | 8 | 2203- | FTR | M12 FLANGE | ||
| 094 | I0-91110 516-0 | NUT; HOOK | 2 | 2203- | FTR | M16 | ||
| 321 | I8-97616 291-1 | COVER; BUMPER FRT SIDE | 1 | 2203- | FTR | |||
| 321 | I8-97616 290-1 | COVER; BUMPER FRT SIDE | 1 | 2203- | FTR | |||
| 042 | I8-94324 205-0 | BOLT; BUMPER | 6 | 2203- | FTR | M10X30 | ||
| 042 | I8-94324 205-0 | BOLT; BUMPER | 6 | 2203- | FTR | M10X30 | ||
| 321 | I8-97616 291-1 | COVER; BUMPER FRT SIDE | 1 | 2203- | FTR | |||
| 094 | I0-91110 516-0 | NUT; HOOK | 2 | 2203- | FTR | M16 | ||
| 093 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 2203- | FTR | ID=16.2 | ||
| 032 | I0-28651 035-0 | BOLT; BRKT,BUMPER | 8 | 2203- | FTR | (A) M10X35 FLANGE | ||
| 322 | I0-72180 516-0 | SCREW; COVER FIX | 2 | 2203- | FTR | M5X16 TAPPING HEXALOBULAR | ||
| 030 | I8-98205 744-A | BRACKET; FRT BUMPER | 1 | 2203- | FTR | |||
| 030 | I8-98205 745-A | BRACKET; FRT BUMPER | 1 | 2203- | FTR | |||
| 034 | I0-91180 212-0 | NUT; BRKT,BUMPER | 8 | 2203- | FTR | M12 FLANGE | ||
| 032 | I0-28651 035-0 | BOLT; BRKT,BUMPER | 8 | 2203- | FTR | (A) M10X35 FLANGE | ||
| 301 | I0-10961 670-0 | BOLT; HOOK TO FRAME | 2 | 2203- | FTR | (C) M16X70 | ||
| 321 | I8-97616 290-1 | COVER; BUMPER FRT SIDE | 1 | 2203- | FTR | |||
| 312 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FTR | M10 FLANGE | ||
| 030 | I8-98205 745-A | BRACKET; FRT BUMPER | 1 | 2203- | FTR | |||
| 093 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 2203- | FTR | ID=16.2 | ||
| 229 | I5-09983 007-0 | GROMMET | 2 | 2203- | FTR | D=7X7 L=7.5 | ||
| 229 | I5-09983 007-0 | GROMMET | 2 | 2203- | FTR | D=7X7 L=7.5 | ||
| 001 | I8-97675 445-0 | BUMPER ASM; FRT | 1 | 2203- | FTR | (C) | ||
| 301 | I0-10961 670-0 | BOLT; HOOK TO FRAME | 2 | 2203- | FTR | (C) M16X70 | ||
| 312 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FTR | M10 FLANGE | ||
| 030 | I8-98205 744-A | BRACKET; FRT BUMPER | 1 | 2203- | FTR | |||
| 322 | I0-72180 516-0 | SCREW; COVER FIX | 2 | 2203- | FTR | M5X16 TAPPING HEXALOBULAR |
