8-10 | WIRING HARNESS AND FUSE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 693 | I6-97173 035-0 | RELAY; FUSE BOX | AR | 2203- | FTR | (IADG) 24V 10A | ||
| 005 | I8-98054 258-0 | FUSE; FACIA HARNESS | AR | 2203- | FTR | 15A BLUE | ||
| 639 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | FTR | (A) M8X20 FLANGE | ||
| 668 | I8-98362 020-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (O) | ||
| 694 | I8-98057 771-0 | BOX ASM; CONNECTOR | 1 | 2203- | FTR | |||
| 453 | I1-82699 709-0 | PROTECTOR; HARNESS | 1 | 2203- | FTR | (A) | ||
| 548 | I1-09332 011-1 | GROMMET | 1 | 2203- | FTR | (B) ID=28 OD=35 T=25 | ||
| 027 | I8-98054 257-0 | FUSE UNIT | AR | 2203- | FTR | 10A RED | ||
| 533 | I1-09701 214-0 | CLIP | 1 | 2203- | FTR | (R) ID=35 L=50 | ||
| 408 | I8-97544 566-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | FTR | (B) | ||
| 639 | I0-28650 830-0 | BOLT; CLIP | 3 | 2203- | FTR | (C) M8X30 FLANGE | ||
| 002 | I8-94416 438-1 | DIODE; CABLE HARNESS | 2 | 2203- | FTR | (A) BLACK 3P-1.5A | ||
| 028 | I0-28050 616-0 | SCREW; FUSE BOX | 1 | 2203- | FTR | (B) M6X16 FLANGE | ||
| 004 | I8-98065 666-0 | BOX ASM; FUSE,HARNESS | 1 | 2203- | FTR | (A) | ||
| 261 | I8-98065 986-1 | COVER; CONNECTOR BOX | 1 | 2203- | FTR | |||
| 668 | I8-98024 765-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (H) | ||
| 005 | I8-98062 982-0 | FUSE; FACIA HARNESS | AR | 2203- | FTR | 25A WHITE | ||
| 013 | I8-98171 638-0 | HARNESS; ENG | 1 | 2203- | FTR | (B) | ||
| 533 | I1-09700 905-0 | CLIP | 2 | 2203- | FTR | (D) ID=34.5 H=23 L=27.5 | ||
| 639 | I0-28650 830-0 | BOLT; CLIP | 3 | 2203- | FTR | (C) M8X30 FLANGE | ||
| 005 | I8-98054 257-0 | FUSE; FACIA HARNESS | AR | 2203- | FTR | 10A RED | ||
| 533 | I5-09707 030-1 | CLIP | 2 | 2203- | FTR | (A) L=250 | ||
| 005 | I8-98054 258-0 | FUSE; FACIA HARNESS | AR | 2203- | FTR | 15A BLUE | ||
| 002 | I8-94416 438-1 | DIODE; CABLE HARNESS | 2 | 2203- | FTR | (A) BLACK 3P-1.5A | ||
| 174 | I8-98079 193-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | 50A RED | ||
| 668 | I8-98305 105-1 | BRACKET; HARNESS | 1 | 2203- | FTR | (N) | ||
| 534 | I1-09030 073-0 | BOLT | 3 | 2203- | FTR | (C) M8X35 W/LK&PL WASHER | ||
| 005 | I8-98054 259-0 | FUSE; FACIA HARNESS | AR | 2203- | FTR | 20A YELLOW | ||
| 174 | I8-98079 192-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | 40A GREEN | ||
| 639 | I0-28650 830-0 | BOLT; CLIP | 1 | 2203- | FTR | (C) M8X30 FLANGE | ||
| 027 | I8-98054 257-0 | FUSE UNIT | AR | 2203- | FTR | 10A RED | ||
| 267 | I0-28651 025-0 | BOLT; BRKT | 2 | 2203- | FTR | (E) M10X25 FLANGE | ||
| 001 | I7-42040 320-A | HARNESS; CAB | 1 | 2203- | FTR | |||
| 666 | I8-98234 808-0 | BRACKET; CLIP | 1 | 2203- | FTR | |||
| 388 | I8-94422 639-1 | DIODE; RELAY BOX | AR | 2203- | FTR | BLACK 2P-1.5A | ||
| 533 | I5-09707 030-1 | CLIP | 3 | 2203- | FTR | (A) L=250 | ||
| 029 | I8-98056 968-0 | COVER; FUSE BOX | 1 | 2203- | FTR | |||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | FTR | (B) | ||
| 548 | I1-09332 011-1 | GROMMET | 1 | 2203- | FTR | (B) ID=28 OD=35 T=25 | ||
| 293 | I7-05108 010-A | NUT | 1 | 2203- | FTR | M8 FLANGE | ||
| 558 | I1-82690 668-0 | CONNECTOR; HARNESS | 1 | 2203- | FTR | |||
| 534 | I0-28650 830-0 | BOLT | 1 | 2203- | FTR | (D) M8X30 FLANGE | ||
| 267 | I0-28650 835-0 | BOLT; BRKT | 2 | 2203- | FTR | (D) M8X35 FLANGE | ||
| 542 | I9-09956 092-A | GROMMET; HARNESS | 1 | 2203- | FTR | (A) ID=24 OD=30 T=17 | ||
| 102 | I0-28050 612-0 | BOLT; BRKT,HARNESS CONNECTOR | 1 | 2203- | FTR | (C) M6X12 FLANGE | ||
| 029 | I8-98056 968-0 | COVER; FUSE BOX | 1 | 2203- | FTR | |||
| 005 | I8-98054 257-0 | FUSE; FACIA HARNESS | AR | 2203- | FTR | 10A RED | ||
| 002 | I8-94422 640-1 | DIODE; CABLE HARNESS | 1 | 2203- | FTR | (C) BLACK 3P-1.5A | ||
| 541 | I5-09707 030-1 | CLIP | 1 | 2203- | FTR | (B) L=250 | ||
| 027 | I8-98054 258-0 | FUSE UNIT | AR | 2203- | FTR | 15A BLUE | ||
| 639 | I0-28650 825-0 | BOLT; CLIP | 1 | 2203- | FTR | (B) M8X25 FLANGE | ||
| 640 | I7-05108 010-A | NUT; CLIP | 3 | 2203- | FTR | M8 FLANGE | ||
| 184 | I8-98030 766-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | FTR | (A) | ||
| 028 | I0-28050 616-0 | SCREW; FUSE BOX | 1 | 2203- | FTR | (B) M6X16 FLANGE | ||
| 006 | I7-42060 310-A | HARNESS; FRAME | 1 | 2203- | FTR | |||
| 002 | I8-94422 639-A | DIODE; CABLE HARNESS | 2 | 2203- | FTR | (B) BLACK 2P-1.5A | ||
| 533 | I1-09700 466-0 | CLIP | 23 | 2203- | FTR | (C) ID=15 L=65; FTR90T | ||
| 668 | I8-98205 089-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (G) | ||
| 668 | I8-98212 082-1 | BRACKET; HARNESS | 1 | 2203- | FTR | (L) | ||
| 668 | I8-98011 484-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (K) | ||
| 693 | I8-97173 035-1 | RELAY; FUSE BOX | AR | 2203- | FTR | 24V 10A | ||
| 009 | I8-97695 220-A | HARNESS; FRAME,RR | 1 | 2203-2412 | FTR | FTR90S; WB 6050MM | ||
| 533 | I0-95235 025-0 | CLIP | 3 | 2203- | FTR | (P) ID=11 L=16 | ||
| 041 | I8-98054 260-0 | PULLER; FUSE | 1 | 2203- | FTR | |||
| 668 | I8-98097 674-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (D) | ||
| 668 | I8-98254 592-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (M) | ||
| 005 | I8-98054 259-0 | FUSE; FACIA HARNESS | AR | 2203- | FTR | 20A YELLOW | ||
| 010 | I8-98030 762-0 | BOX; FUSE,HARNESS | 1 | 2203- | FTR | (A) | ||
| 533 | I1-09700 863-0 | CLIP | 2 | 2203- | FTR | (Q) ID=27.5 H=23 L=24 | ||
| 009 | I8-97696 005-A | HARNESS; FRAME,RR | 1 | 2203-2412 | FTR | FTR90T; WB 6500MM | ||
| 009 | I8-97695 220-A | HARNESS; FRAME,RR | 1 | 2203- | FTR | FTR90S; WB 6050MM | ||
| 267 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | FTR | (B) M8X25 FLANGE | ||
| 535 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 2203- | FTR | M8X30 FLANGE | ||
| 009 | I7-42060 353-A | HARNESS; FRAME,RR | 1 | 2501- | FTR | FTR90T; WB 6500MM | ||
| 700 | I1-11369 157-0 | TUBE; DISTANCE | 1 | 2203- | FTR | L=51 | ||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 2203- | FTR | |||
| 267 | I0-28651 025-0 | BOLT; BRKT | 2 | 2203- | FTR | (E) M10X25 FLANGE | ||
| 174 | I8-98079 191-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | 30A PINK | ||
| 293 | I7-05108 010-A | NUT | 1 | 2203- | FTR | M8 FLANGE | ||
| 534 | I8-97365 449-0 | BOLT | 3 | 2203- | FTR | (A) M10X55 FLANGE | ||
| 668 | I8-98095 653-2 | BRACKET; HARNESS | 1 | 2203- | FTR | (E) | ||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 2203- | FTR | |||
| 276 | I8-98034 039-1 | COVER; BOX,FRAME HARNESS | 1 | 2203- | FTR | |||
| 102 | I0-28151 016-0 | BOLT; BRKT,HARNESS CONNECTOR | 3 | 2203- | FTR | (B) M10X16 FLANGE | ||
| 174 | I6-98079 193-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | (IADG) 50A RED | ||
| 002 | I8-94422 639-1 | DIODE; CABLE HARNESS | 2 | 2203- | FTR | (B) BLACK 2P-1.5A | ||
| 541 | I5-09707 030-1 | CLIP | 1 | 2203- | FTR | (B) L=250 | ||
| 668 | I8-98273 295-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (J) | ||
| 668 | I8-98212 082-1 | BRACKET; HARNESS | 1 | 2203- | FTR | (L) | ||
| 261 | I8-98065 986-1 | COVER; CONNECTOR BOX | 1 | 2203- | FTR | |||
| 267 | I0-28650 835-0 | BOLT; BRKT | 2 | 2203- | FTR | (D) M8X35 FLANGE | ||
| 534 | I8-97365 449-0 | BOLT | 3 | 2203- | FTR | (A) M10X55 FLANGE | ||
| 525 | I7-05108 010-A | NUT; CLIP | 2 | 2203- | FTR | M8 FLANGE | ||
| 174 | I6-98079 191-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | (IADG) 30A PINK | ||
| 009 | I7-42060 352-A | HARNESS; FRAME,RR | 1 | 2501- | FTR | FTR90S; WB 6050MM | ||
| 533 | I1-09701 214-0 | CLIP | 1 | 2203- | FTR | (R) ID=35 L=50 | ||
| 204 | I8-98182 447-A | HARNESS; CABLE,FLOOR | 1 | 2203- | FTR | |||
| 280 | I0-91180 106-0 | NUT; BOX ASM FIX | 4 | 2203- | FTR | M6 FLANGE | ||
| 693 | I8-97173 035-1 | RELAY; FUSE BOX | AR | 2203- | FTR | 24V 10A | ||
| 525 | I7-05108 010-A | NUT; CLIP | 2 | 2203- | FTR | M8 FLANGE | ||
| 533 | I1-09700 863-0 | CLIP | 2 | 2203- | FTR | (Q) ID=27.5 H=23 L=24 | ||
| 542 | I1-09332 011-1 | GROMMET; HARNESS | 1 | 2203- | FTR | (C) ID=28 OD=35 T=25 | ||
| 534 | I1-09030 073-0 | BOLT | 3 | 2203- | FTR | (C) M8X35 W/LK&PL WASHER | ||
| 639 | I0-28650 830-0 | BOLT; CLIP | 1 | 2203- | FTR | (C) M8X30 FLANGE | ||
| 533 | I1-09707 107-1 | CLIP | 1 | 2203- | FTR | (F) L=600 | ||
| 533 | I1-09700 466-0 | CLIP | 16 | 2203- | FTR | (C) ID=15 L=65; FTR90P | ||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | 60A YELLOW | ||
| 102 | I0-28151 016-0 | BOLT; BRKT,HARNESS CONNECTOR | 3 | 2203- | FTR | (B) M10X16 FLANGE | ||
| 668 | I8-98097 674-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (D) | ||
| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | FTR | (A) | ||
| 005 | I8-98062 982-0 | FUSE; FACIA HARNESS | AR | 2203- | FTR | 25A WHITE | ||
| 534 | I0-28650 830-0 | BOLT | 1 | 2203- | FTR | (D) M8X30 FLANGE | ||
| 533 | I5-09707 030-1 | CLIP | 3 | 2203- | FTR | (A) L=250 | ||
| 388 | I8-94422 639-A | DIODE; RELAY BOX | AR | 2203- | FTR | BLACK 2P-1.5A | ||
| 102 | I0-28050 612-0 | BOLT; BRKT,HARNESS CONNECTOR | 1 | 2203- | FTR | (C) M6X12 FLANGE | ||
| 533 | I1-09707 183-0 | CLIP | 1 | 2203- | FTR | (O) L=350 | ||
| 018 | I8-98076 304-A | HARNESS; DOOR | 1 | 2203- | FTR | |||
| 012 | I8-98315 510-A | HARNESS; ROOF | 1 | 2203- | FTR | |||
| 533 | I1-09700 466-0 | CLIP | 21 | 2203- | FTR | (C) ID=15 L=65; FTR90S | ||
| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | FTR | (A) | ||
| 174 | I6-98079 192-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | (IADG) 40A GREEN | ||
| 004 | I8-98065 666-0 | BOX ASM; FUSE,HARNESS | 1 | 2203- | FTR | (A) | ||
| 595 | I8-97620 487-A | HARNESS; WARNING,BRK | 1 | 2203- | FTR | |||
| 668 | I8-98061 780-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (F) | ||
| 009 | I8-97696 005-A | HARNESS; FRAME,RR | 1 | 2203- | FTR | FTR90T; WB 6500MM | ||
| 533 | I1-09707 183-0 | CLIP | 1 | 2203- | FTR | (O) L=350 | ||
| 640 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FTR | M8 FLANGE | ||
| 668 | I8-98254 592-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (M) | ||
| 668 | I8-98205 089-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (G) | ||
| 668 | I8-98061 780-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (F) | ||
| 290 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FTR | (B) M10 FLANGE | ||
| 668 | I8-98095 653-2 | BRACKET; HARNESS | 1 | 2203- | FTR | (E) | ||
| 010 | I8-98030 762-0 | BOX; FUSE,HARNESS | 1 | 2203- | FTR | (A) | ||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 2203- | FTR | |||
| 640 | I7-05108 010-A | NUT; CLIP | 3 | 2203- | FTR | M8 FLANGE | ||
| 639 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | FTR | (A) M8X20 FLANGE | ||
| 009 | I8-97695 219-A | HARNESS; FRAME,RR | 1 | 2203- | FTR | FTR90P; WB 5050MM | ||
| 533 | I1-09700 466-0 | CLIP | 23 | 2203- | FTR | (C) ID=15 L=65; FTR90T | ||
| 535 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 2203- | FTR | M8X30 FLANGE | ||
| 668 | I1-47475 304-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (I) L=55 H=25 | ||
| 204 | I8-98182 447-A | HARNESS; CABLE,FLOOR | 1 | 2203- | FTR | |||
| 012 | I8-98315 510-A | HARNESS; ROOF | 1 | 2203- | FTR | |||
| 666 | I8-98234 808-0 | BRACKET; CLIP | 1 | 2203- | FTR | |||
| 693 | I6-97173 035-0 | RELAY; FUSE BOX | AR | 2203- | FTR | (IADG) 24V 10A | ||
| 640 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FTR | M8 FLANGE | ||
| 174 | I6-98079 192-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | (IADG) 40A GREEN | ||
| 027 | I8-98054 258-0 | FUSE UNIT | AR | 2203- | FTR | 15A BLUE | ||
| 174 | I8-98079 192-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | 40A GREEN | ||
| 639 | I0-28650 825-0 | BOLT; CLIP | 1 | 2203- | FTR | (B) M8X25 FLANGE | ||
| 041 | I8-98054 260-0 | PULLER; FUSE | 1 | 2203- | FTR | |||
| 595 | I8-97620 487-A | HARNESS; WARNING,BRK | 1 | 2203- | FTR | |||
| 184 | I8-98030 766-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | FTR | (A) | ||
| 102 | I0-28050 816-0 | BOLT; BRKT,HARNESS CONNECTOR | 4 | 2203- | FTR | (A) M8X16 FLANGE | ||
| 668 | I8-98362 020-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (O) | ||
| 668 | I8-97609 110-1 | BRACKET; HARNESS | 1 | 2203- | FTR | (B) | ||
| 408 | I8-97544 566-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | FTR | (B) | ||
| 542 | I9-09956 092-A | GROMMET; HARNESS | 1 | 2203- | FTR | (A) ID=24 OD=30 T=17 | ||
| 267 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | FTR | (B) M8X25 FLANGE | ||
| 668 | I8-98011 484-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (K) | ||
| 018 | I8-98076 305-A | HARNESS; DOOR | 1 | 2203- | FTR | |||
| 102 | I0-28050 816-0 | BOLT; BRKT,HARNESS CONNECTOR | 4 | 2203- | FTR | (A) M8X16 FLANGE | ||
| 006 | I7-42060 310-A | HARNESS; FRAME | 1 | 2203- | FTR | |||
| 668 | I8-98273 295-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (J) | ||
| 533 | I0-95235 025-0 | CLIP | 3 | 2203- | FTR | (P) ID=11 L=16 | ||

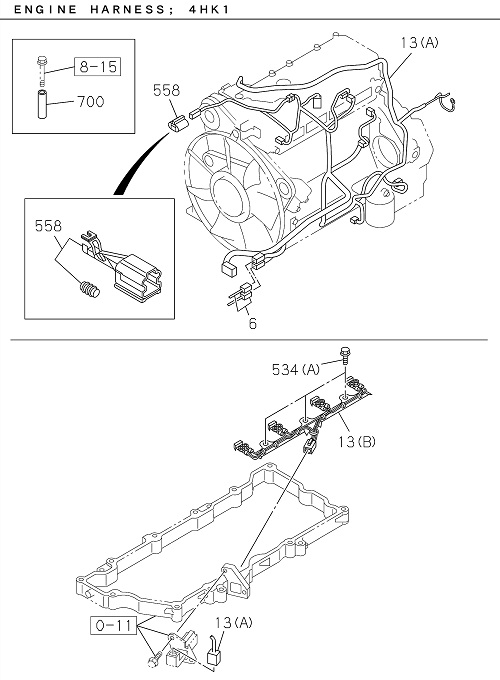

| 013 | I8-98274 071-0 | HARNESS; ENG | 1 | 2203- | FTR | (A) | ||
| 453 | I1-82699 709-0 | PROTECTOR; HARNESS | 1 | 2203- | FTR | (A) | ||
| 668 | I8-98305 105-1 | BRACKET; HARNESS | 1 | 2203- | FTR | (N) | ||
| 290 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | FTR | (A) M8 FLANGE | ||
| 558 | I1-82690 668-0 | CONNECTOR; HARNESS | 1 | 2203- | FTR | |||

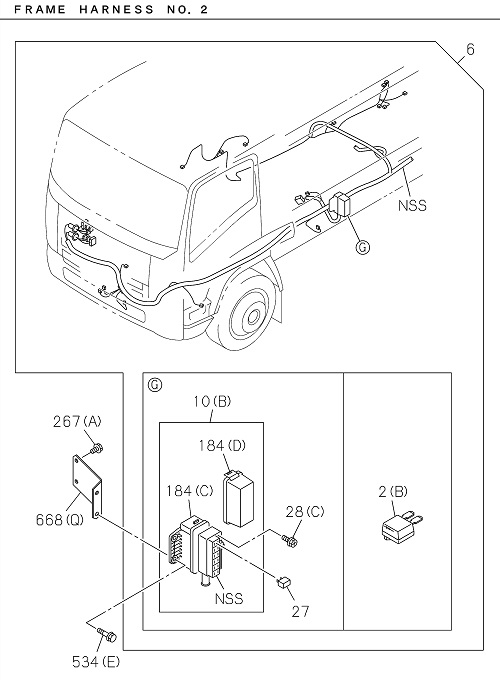

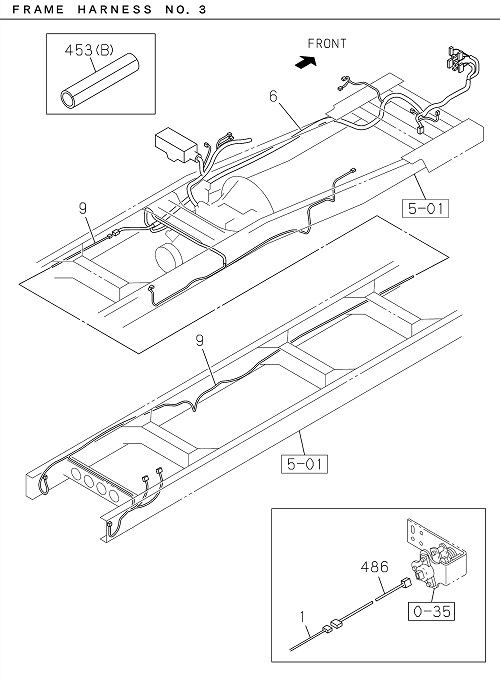

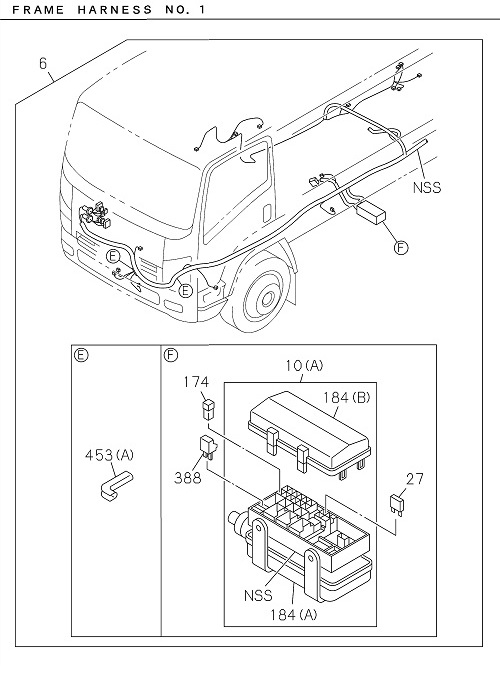

| 009 | I7-42060 351-A | HARNESS; FRAME,RR | 1 | 2203- | FTR | FTR90P; WB 5050MM | ||
| 694 | I8-98057 771-0 | BOX ASM; CONNECTOR | 1 | 2203- | FTR | |||
| 533 | I1-09700 905-0 | CLIP | 2 | 2203- | FTR | (D) ID=34.5 H=23 L=27.5 | ||
| 290 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FTR | (B) M10 FLANGE | ||
| 002 | I8-94422 640-1 | DIODE; CABLE HARNESS | 1 | 2203- | FTR | (C) BLACK 3P-1.5A | ||
| 668 | I1-47475 304-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (I) L=55 H=25 | ||
| 533 | I1-09700 466-0 | CLIP | 21 | 2203- | FTR | (C) ID=15 L=65; FTR90S | ||
| 533 | I1-09707 107-1 | CLIP | 1 | 2203- | FTR | (F) L=600 | ||

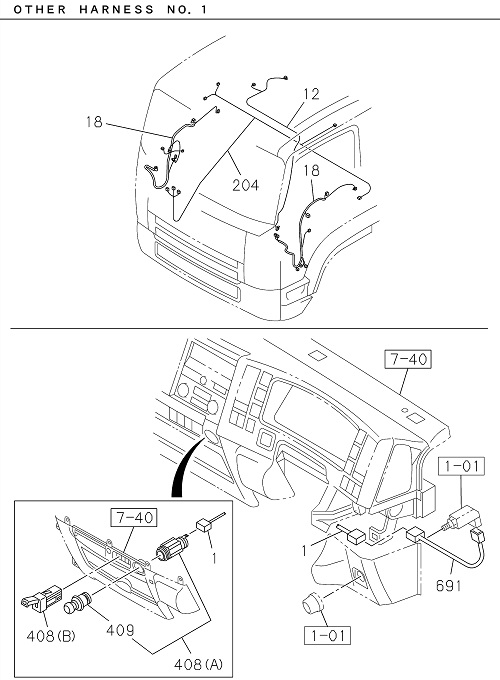

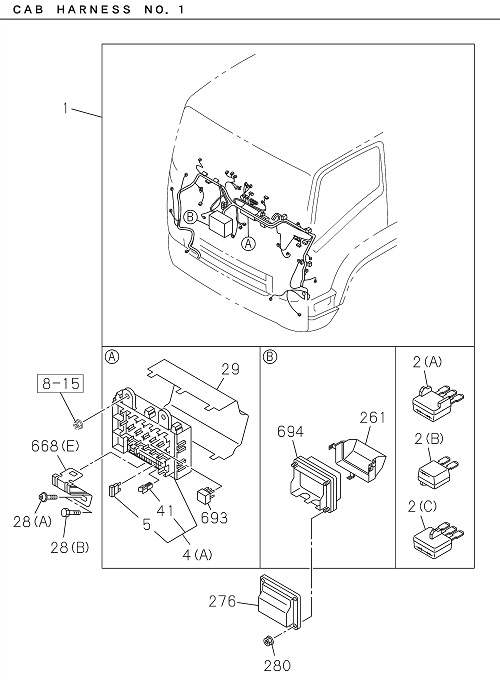

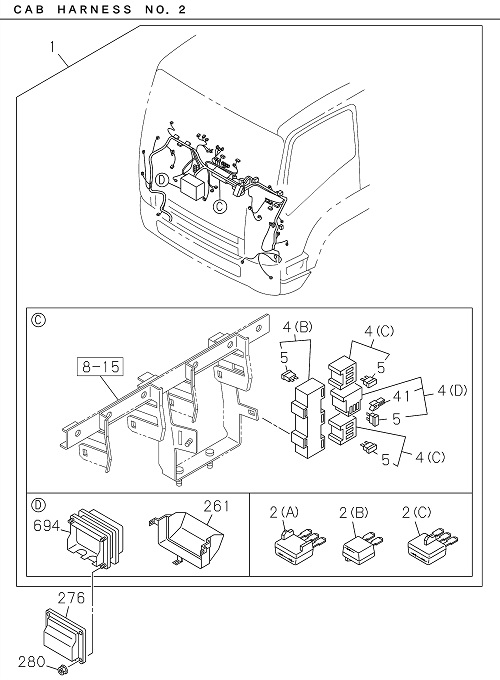

| 001 | I7-42040 320-A | HARNESS; CAB | 1 | 2203- | FTR | |||
| 542 | I9-09956 256-2 | GROMMET; HARNESS | 1 | 2203- | FTR | (B) ID=28 OD=35 T=17 | ||
| 174 | I6-98079 193-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | (IADG) 50A RED | ||
| 174 | I8-98079 193-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | 50A RED | ||
| 018 | I8-98076 304-A | HARNESS; DOOR | 1 | 2203- | FTR | |||
| 276 | I8-98034 039-1 | COVER; BOX,FRAME HARNESS | 1 | 2203- | FTR | |||
| 290 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | FTR | (A) M8 FLANGE | ||
| 700 | I1-11369 157-0 | TUBE; DISTANCE | 1 | 2203- | FTR | L=51 | ||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | 60A YELLOW | ||
| 280 | I0-91180 106-0 | NUT; BOX ASM FIX | 4 | 2203- | FTR | M6 FLANGE | ||
| 174 | I8-98079 191-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | 30A PINK | ||
| 533 | I1-09700 466-0 | CLIP | 16 | 2203- | FTR | (C) ID=15 L=65; FTR90P | ||
| 174 | I6-98079 191-0 | FUSE; SLOW BLOW | AR | 2203- | FTR | (IADG) 30A PINK | ||
| 013 | I8-98274 071-0 | HARNESS; ENG | 1 | 2203- | FTR | (A) | ||
| 542 | I1-09332 011-1 | GROMMET; HARNESS | 1 | 2203- | FTR | (C) ID=28 OD=35 T=25 | ||
| 018 | I8-98076 305-A | HARNESS; DOOR | 1 | 2203- | FTR | |||
| 542 | I9-09956 256-2 | GROMMET; HARNESS | 1 | 2203- | FTR | (B) ID=28 OD=35 T=17 | ||
| 668 | I8-98024 765-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (H) | ||
| 668 | I8-97609 110-1 | BRACKET; HARNESS | 1 | 2203- | FTR | (B) | ||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 2203- | FTR | |||
| 533 | I5-09707 030-1 | CLIP | 2 | 2203- | FTR | (A) L=250 | ||
| 013 | I8-98171 638-0 | HARNESS; ENG | 1 | 2203- | FTR | (B) | ||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | FTR | (B) |
