8-15 | FIXING PARTS; WIRING HARNESS
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

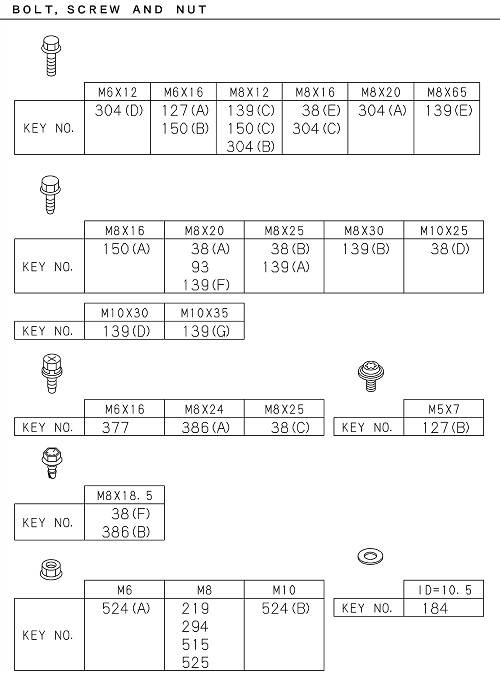

| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 2203- | FTR | M6X16 W/LK&PL WASHER | ||
| 386 | I8-98141 255-0 | BOLT; GRAND HARNESS | 2 | 2203- | FTR | (B) M8X18.5 W/PL WASHER | ||

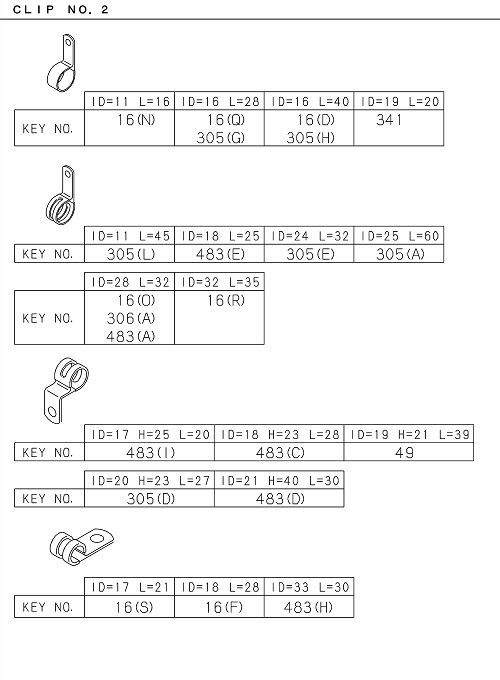

| 049 | I1-09700 972-1 | CLIP; GEN HARNESS | 1 | 2203- | FTR | ID=19 H=21 L=39 | ||
| 184 | I1-09503 265-0 | WASHER; PL,STARTER EARTH | 1 | 2203- | FTR | ID=10.5 OD=22 T=2.0 | ||

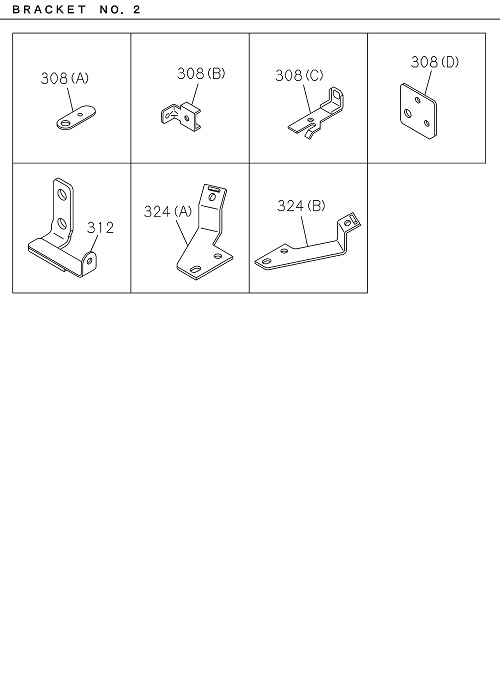

| 312 | I8-98094 804-0 | BRACKET; CLIP HARNESS | 1 | 2203- | FTR | |||
| 483 | I8-97619 250-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (H) ID=33 L=30 | ||
| 016 | I0-95235 556-0 | CLIP; HARNESS | 2 | 2203- | FTR | (Q) ID=16 L=28 | ||
| 524 | I7-05110 010-A | NUT; HARNESS | 1 | 2203- | FTR | (B) M10 FLANGE | ||
| 038 | I8-98141 255-0 | BOLT; CLIP,HARNESS | 2 | 2203- | FTR | (F) M8X18.5 W/PL WASHER | ||
| 016 | I1-09701 244-0 | CLIP; HARNESS | 1 | 2203- | FTR | (R) ID=32 L=35 | ||
| 171 | I1-09709 309-0 | CLIP; STARTER HARNESS | 1 | 2203- | FTR | (A) OD=8 H=3.8 | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 2203- | FTR | OD=25 | ||
| 016 | I8-97229 357-0 | CLIP; HARNESS | 2 | 2203- | FTR | (I) L=40.6 | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 2203- | FTR | (C) M8X12 FLANGE | ||
| 483 | I8-94224 891-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (F) L=36 | ||
| 483 | I8-94225 185-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (B) ID=12 B=13 L=18 ID=6.5 | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 6 | 2203- | FTR | 180X40 | ||
| 483 | I8-94178 108-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (G) ID=21 L=47.5 | ||
| 483 | I1-09700 860-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (C) ID=18 H=23 L=28 | ||
| 305 | I5-09707 030-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (C) L=250 | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 2203- | FTR | (B) M5X7 HEXALOBULAR SOCKET | ||

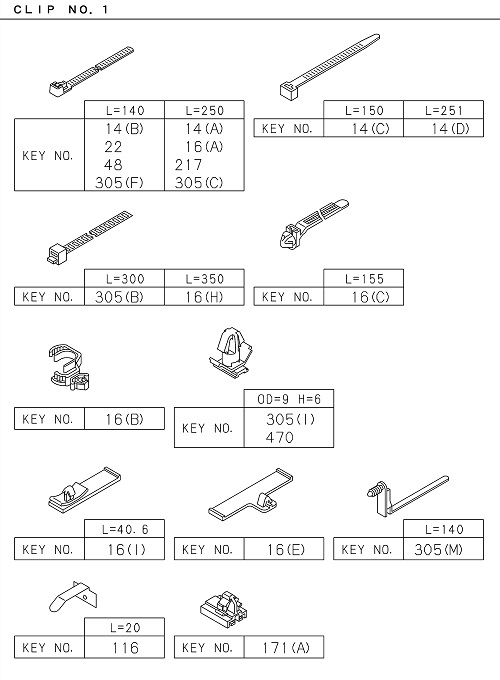

| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 4 | 2203- | FTR | L=20 | ||
| 483 | I8-94225 185-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (B) ID=12 B=13 L=18 ID=6.5 | ||
| 217 | I5-09707 030-1 | CLIP; RR BODY HARNESS | 2 | 2203- | FTR | L=250 | ||
| 014 | I5-09707 031-1 | CLIP; BAND,HARNESS | 2 | 2203- | FTR | (B) L=140 | ||
| 016 | I8-98052 679-0 | CLIP; HARNESS | 2 | 2203- | FTR | (E) | ||
| 483 | I8-94224 891-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (F) L=36 | ||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | L=140 | ||
| 014 | I8-97619 917-0 | CLIP; BAND,HARNESS | 1 | 2203- | FTR | (D) L=251 | ||
| 219 | I7-05108 010-A | NUT | 3 | 2203- | FTR | M8 FLANGE | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS,LICENSE LAMP | 1 | 2203- | FTR | OD=9 H=6 | ||
| 483 | I8-94178 108-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (G) ID=21 L=47.5 | ||
| 483 | I1-09987 281-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (I) ID=17 H=25 L=20 | ||

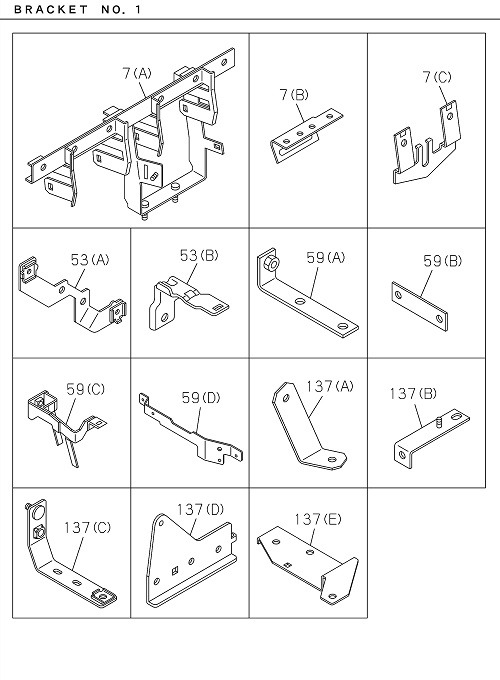

| 137 | I8-98193 417-0 | BRACKET; HARNESS CLAMP | 1 | 2203- | FTR | (E) | ||
| 294 | I7-05108 010-A | NUT | 1 | 2203- | FTR | M8 FLANGE | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 4 | 2203- | FTR | L=20 | ||
| 171 | I8-97101 436-0 | CLIP; STARTER HARNESS | 1 | 2203- | FTR | (B) ID=16 L=60 | ||

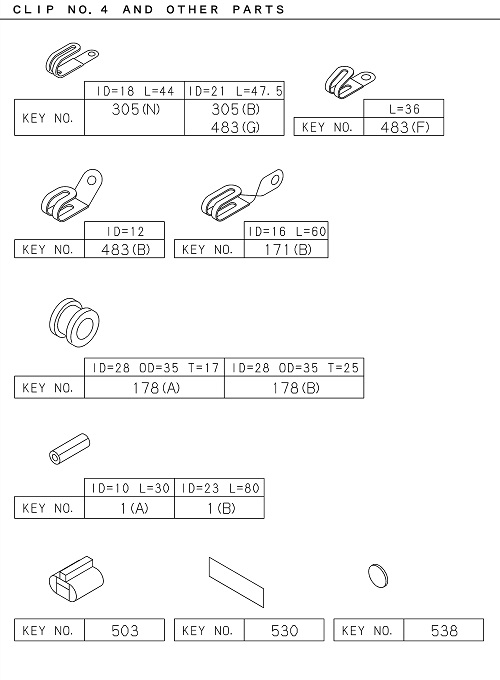

| 178 | I1-09332 011-1 | GROMMET; HARNESS | 2 | 2203- | FTR | (B) ID=28 OD=35 T=25 | ||
| 038 | I8-98141 255-0 | BOLT; CLIP,HARNESS | 2 | 2203- | FTR | (F) M8X18.5 W/PL WASHER | ||
| 016 | I1-09701 244-0 | CLIP; HARNESS | 1 | 2203- | FTR | (R) ID=32 L=35 | ||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 18 | 2203- | FTR | (C) L=155 | ||
| 016 | I8-98082 035-0 | CLIP; HARNESS | 1 | 2203- | FTR | (S) ID=17 L=21 | ||
| 305 | I1-09707 188-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (J) L=121.2 & 121.2 | ||
| 483 | I8-97619 250-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (H) ID=33 L=30 | ||
| 139 | I7-04508 025-A | BOLT; BRKT | 1 | 2203- | FTR | (F) M8X20 FLANGE | ||
| 137 | I8-98193 417-0 | BRACKET; HARNESS CLAMP | 1 | 2203- | FTR | (E) | ||
| 312 | I8-98094 804-0 | BRACKET; CLIP HARNESS | 1 | 2203- | FTR | |||
| 525 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FTR | T=8.0 M8 FLANGE | ||
| 503 | I1-82690 668-0 | CONNECTOR | 2 | 2203- | FTR | |||
| 048 | I5-09707 031-1 | CLIP; FRAME HARNESS | 2 | 2203- | FTR | L=140 | ||
| 016 | I0-95235 556-0 | CLIP; HARNESS | 2 | 2203- | FTR | (Q) ID=16 L=28 | ||
| 483 | I1-09700 860-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (C) ID=18 H=23 L=28 | ||
| 483 | I1-09700 991-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (D) ID=21 H=40 L=30 | ||
| 525 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FTR | T=8.0 M8 FLANGE | ||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | L=140 | ||
| 150 | I0-28050 612-0 | BOLT; CLIP | 2 | 2203- | FTR | (B) M6X12 FLANGE | ||
| 171 | I8-97101 436-0 | CLIP; STARTER HARNESS | 1 | 2203- | FTR | (B) ID=16 L=60 | ||
| 049 | I1-09700 972-1 | CLIP; GEN HARNESS | 1 | 2203- | FTR | ID=19 H=21 L=39 | ||
| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 2203- | FTR | M6X16 W/LK&PL WASHER | ||
| 014 | I5-09707 031-1 | CLIP; BAND,HARNESS | 2 | 2203- | FTR | (B) L=140 | ||
| 014 | I8-97355 273-0 | CLIP; BAND,HARNESS | 2 | 2203- | FTR | (C) L=150 | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | FTR | (B) ID=10 & 16 | ||
| 150 | I0-28650 616-0 | BOLT; CLIP | 1 | 2203- | FTR | (A) M6X16 FLANGE | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 2203- | FTR | (C) M8X12 FLANGE | ||
| 219 | I7-05108 010-A | NUT | 3 | 2203- | FTR | M8 FLANGE | ||
| 038 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 3 | 2203- | FTR | (B) M8X25 FLANGE | ||
| 184 | I1-09503 265-0 | WASHER; PL,STARTER EARTH | 1 | 2203- | FTR | ID=10.5 OD=22 T=2.0 | ||
| 305 | I5-09707 030-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (C) L=250 | ||
| 386 | I8-98141 255-0 | BOLT; GRAND HARNESS | 2 | 2203- | FTR | (B) M8X18.5 W/PL WASHER | ||
| 038 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 3 | 2203- | FTR | (B) M8X25 FLANGE | ||
| 171 | I1-09709 309-0 | CLIP; STARTER HARNESS | 1 | 2203- | FTR | (A) OD=8 H=3.8 | ||
| 483 | I1-09987 281-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (I) ID=17 H=25 L=20 | ||
| 483 | I1-09700 991-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (D) ID=21 H=40 L=30 | ||
| 139 | I7-04508 025-A | BOLT; BRKT | 1 | 2203- | FTR | (F) M8X20 FLANGE | ||
| 139 | I0-28651 035-0 | BOLT; BRKT | 1 | 2203- | FTR | (G) M10X35 FLANGE | ||
| 294 | I7-05108 010-A | NUT | 1 | 2203- | FTR | M8 FLANGE | ||
| 341 | I0-95235 836-0 | CLIP; BAND,STARTER RELAY | 1 | 2203- | FTR | ID=19 L=20 | ||
| 305 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (F) L=140 | ||
| 305 | I1-09707 188-0 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (J) L=121.2 & 121.2 | ||
| 305 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (F) L=140 | ||
| 150 | I0-28650 616-0 | BOLT; CLIP | 1 | 2203- | FTR | (A) M6X16 FLANGE | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 6 | 2203- | FTR | 180X40 | ||
| 217 | I5-09707 030-1 | CLIP; RR BODY HARNESS | 2 | 2203- | FTR | L=250 | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | FTR | (B) ID=10 & 16 | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS,LICENSE LAMP | 1 | 2203- | FTR | OD=9 H=6 | ||
| 178 | I1-09332 011-1 | GROMMET; HARNESS | 2 | 2203- | FTR | (B) ID=28 OD=35 T=25 | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 2203- | FTR | OD=25 | ||
| 014 | I8-97355 273-0 | CLIP; BAND,HARNESS | 2 | 2203- | FTR | (C) L=150 | ||
| 150 | I0-28050 612-0 | BOLT; CLIP | 2 | 2203- | FTR | (B) M6X12 FLANGE | ||
| 016 | I8-97229 357-0 | CLIP; HARNESS | 2 | 2203- | FTR | (I) L=40.6 | ||
| 305 | I1-09707 001-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (B) L=300 | ||
| 305 | I1-09707 001-1 | CLIP; ENG HARNESS | 1 | 2203- | FTR | (B) L=300 | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 2203- | FTR | (B) M5X7 HEXALOBULAR SOCKET | ||
| 341 | I0-95235 836-0 | CLIP; BAND,STARTER RELAY | 1 | 2203- | FTR | ID=19 L=20 | ||
| 139 | I1-09044 072-1 | BOLT; BRKT | 1 | 2203- | FTR | (E) M8X65 FLANGE | ||
| 053 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (B) | ||
| 014 | I8-97619 917-0 | CLIP; BAND,HARNESS | 1 | 2203- | FTR | (D) L=251 | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 2 | 2203- | FTR | (A) M6 FLANGE | ||
| 053 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 2203- | FTR | (B) | ||
| 524 | I7-05110 010-A | NUT; HARNESS | 1 | 2203- | FTR | (B) M10 FLANGE | ||
| 150 | I0-28050 812-A | BOLT; CLIP | 1 | 2203- | FTR | (C) M8X12 FLANGE | ||
| 016 | I8-98052 679-0 | CLIP; HARNESS | 2 | 2203- | FTR | (E) | ||
| 059 | I8-98099 963-0 | BRACKET; FRAME HARNESS | 1 | 2203- | FTR | (C) | ||
| 139 | I0-28651 035-0 | BOLT; BRKT | 1 | 2203- | FTR | (G) M10X35 FLANGE | ||
| 150 | I0-28050 812-A | BOLT; CLIP | 1 | 2203- | FTR | (C) M8X12 FLANGE | ||
| 016 | I8-98082 035-0 | CLIP; HARNESS | 1 | 2203- | FTR | (S) ID=17 L=21 | ||
| 059 | I8-98099 963-0 | BRACKET; FRAME HARNESS | 1 | 2203- | FTR | (C) | ||
| 503 | I1-82690 668-0 | CONNECTOR | 2 | 2203- | FTR | |||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 18 | 2203- | FTR | (C) L=155 | ||
| 139 | I1-09044 072-1 | BOLT; BRKT | 1 | 2203- | FTR | (E) M8X65 FLANGE | ||
| 048 | I5-09707 031-1 | CLIP; FRAME HARNESS | 2 | 2203- | FTR | L=140 | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 2 | 2203- | FTR | (A) M6 FLANGE |
