8-28 | CHASSIS ELECTRICAL
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

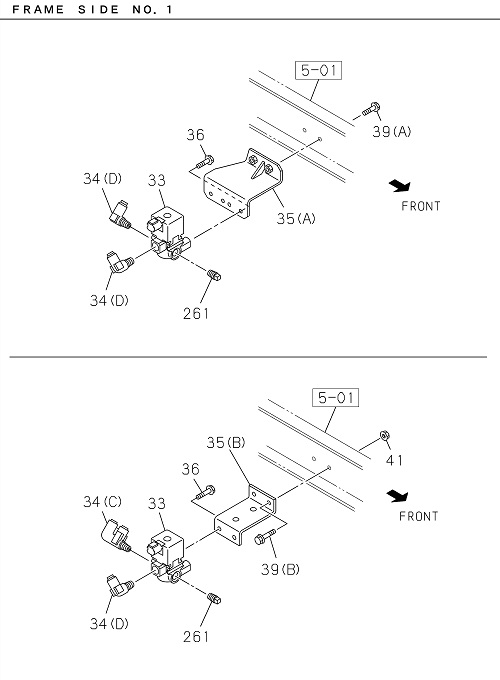

| 039 | I0-28650 835-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | FTR | (B) M8X35 FLANGE | ||

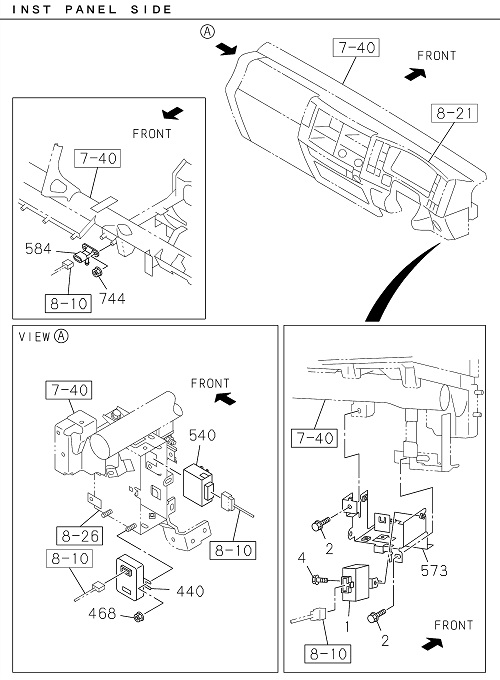

| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | FTR | |||
| 531 | I8-97833 987-0 | RELAY; MAIN | 1 | 2203- | FTR | 24V 30A | ||
| 036 | I7-04508 025-A | BOLT; MAG VLV,PTO CONT | 2 | 2203- | FTR | M8X20 FLANGE | ||

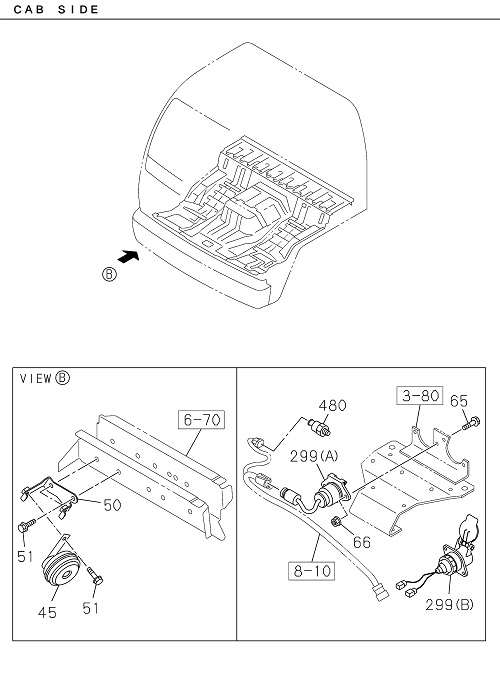

| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | FTR | |||
| 034 | I8-98179 708-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | FTR | (C) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 041 | I7-05108 010-A | NUT; BRKT,MAG VLV | 2 | 2203- | FTR | M8 FLANGE | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | FTR | M6X16 FLANGE | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | FTR | M8X20 W/LK&PL WASHER | ||
| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 2203- | FTR | |||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | FTR | |||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | FTR | M6X16 FLANGE | ||
| 034 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 2 | 2203- | FTR | (D) M12 & PT1/4 ELBOW | ||
| 284 | I7-04508 025-A | BOLT; MAG VLV | 2 | 2203- | FTR | M8X20 FLANGE | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | FTR | M6X16 FLANGE | ||
| 036 | I7-04508 025-A | BOLT; MAG VLV,PTO CONT | 2 | 2203- | FTR | M8X20 FLANGE | ||
| 022 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 2203- | FTR | (A) 24V 12.5A | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | FTR | |||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2203- | FTR | |||
| 035 | I1-47471 374-1 | BRACKET; MAG VLV,PTO CONT | 1 | 2203- | FTR | (B) | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | FTR | |||
| 039 | I0-28650 830-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | FTR | (C) M8X30 FLANGE | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | FTR | M8X20 W/LK&PL WASHER | ||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2203- | FTR | |||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | FTR | M6 FLANGE | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | FTR | |||
| 022 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 2203- | FTR | (A) 24V 12.5A | ||
| 034 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 2 | 2203- | FTR | (D) M12 & PT1/4 ELBOW | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | FTR | |||
| 034 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | FTR | (D) M12 & PT1/4 ELBOW | ||
| 039 | I0-28650 835-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | FTR | (B) M8X35 FLANGE | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 2203- | FTR | PT1/4 | ||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | FTR | |||
| 034 | I8-98179 708-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | FTR | (C) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | FTR | |||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | FTR | M6 FLANGE | ||
| 041 | I7-05108 010-A | NUT; BRKT,MAG VLV | 2 | 2203- | FTR | M8 FLANGE | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 2203- | FTR | PT1/4 | ||
| 035 | I1-47471 374-1 | BRACKET; MAG VLV,PTO CONT | 1 | 2203- | FTR | (B) | ||
| 531 | I8-97833 987-0 | RELAY; MAIN | 1 | 2203- | FTR | 24V 30A | ||
| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 2203- | FTR | |||
| 039 | I0-28650 830-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | FTR | (C) M8X30 FLANGE | ||
| 284 | I7-04508 025-A | BOLT; MAG VLV | 2 | 2203- | FTR | M8X20 FLANGE | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | FTR | M6X16 FLANGE | ||
| 034 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | FTR | (D) M12 & PT1/4 ELBOW | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | FTR |
