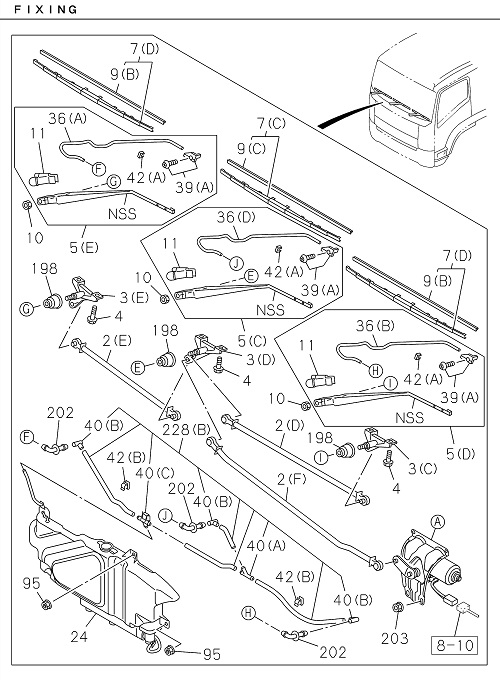

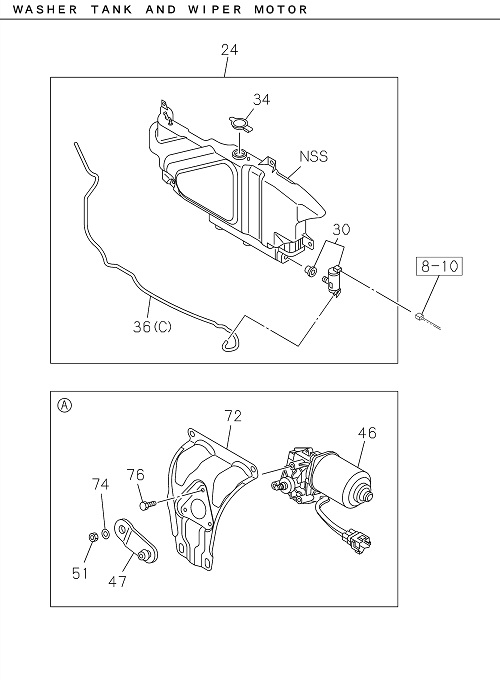

8-80 | WINDSHIELD WIPER AND WASHER
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 036 | I8-98336 024-0 | HOSE; WASHER | 1 | 2203- | FTR | (A) | ||
| 040 | I8-97167 258-0 | JOINT; WASHER HOSE | 1 | 2203- | FTR | (C) | ||
| 030 | I8-97927 042-0 | MOTOR ASM; FRT WASHER TANK | 1 | 2203- | FTR | |||
| 039 | I1-83315 085-0 | NOZZLE; WINDSHIELD WASHER | 3 | 2203- | FTR | (A) | ||
| 024 | I8-97927 039-0 | TANK ASM; WASHER | 1 | 2203- | FTR | |||
| 007 | I6-83315 048-0 | BLADE; WIPER | 2 | 2203- | FTR | (IADG) (D) MIDDLE | ||
| 005 | I8-98336 020-0 | ARM; WIPER | 1 | 2203- | FTR | (D) | ||
| 040 | I8-97167 258-0 | JOINT; WASHER HOSE | 1 | 2203- | FTR | (C) | ||
| 042 | I8-98336 027-0 | CLIP; WASHER HOSE | 3 | 2203- | FTR | (A) | ||
| 007 | I1-83315 047-2 | BLADE; WIPER | 1 | 2203- | FTR | (C) | ||
| 202 | I1-86815 003-2 | GROMMET; WIPER | 3 | 2203- | FTR | |||
| 002 | I8-98078 812-0 | LINK; FRT WIPER | 1 | 2203- | FTR | (D) | ||
| 003 | I8-98078 817-1 | PIVOT ASM; FRT WIPER | 1 | 2203- | FTR | (D) | ||
| 228 | I8-98039 703-2 | HOSE ASM; WASHER | 1 | 2203- | FTR | (B) | ||
| 036 | I8-97927 045-0 | HOSE; WASHER | 1 | 2203- | FTR | (C) | ||
| 076 | I1-86810 062-0 | SCREW; BRKT TO WIPER MOTOR | 3 | 2203- | FTR | M6X14 W/WASHER | ||
| 009 | I1-83355 015-0 | RUBBER; FRT WIPER BLADE | 2 | 2203- | FTR | (B) L=500 | ||
| 004 | I7-04508 025-A | BOLT; WIPER LINK TO BODY | 6 | 2203- | FTR | M8X20 FLANGE | ||
| 007 | I1-83315 048-2 | BLADE; WIPER | 2 | 2203- | FTR | (D) MIDDLE | ||
| 005 | I8-98336 020-0 | ARM; WIPER | 1 | 2203- | FTR | (D) | ||
| 005 | I8-98336 019-0 | ARM; WIPER | 1 | 2203- | FTR | (C) | ||
| 040 | I8-97307 026-0 | JOINT; WASHER HOSE | 3 | 2203- | FTR | (B) | ||
| 011 | I8-98320 027-0 | COVER; WIPER ARM | 3 | 2203- | FTR | |||
| 198 | I8-98038 892-1 | COVER; PIVOT,WIPER | 3 | 2203- | FTR | |||
| 095 | I0-91180 106-0 | NUT; WASHER TANK | 4 | 2203- | FTR | M6 FLANGE | ||
| 003 | I8-98068 140-1 | PIVOT ASM; FRT WIPER | 1 | 2203- | FTR | (C) | ||
| 228 | I8-98039 703-2 | HOSE ASM; WASHER | 1 | 2203- | FTR | (B) | ||
| 202 | I1-86815 003-2 | GROMMET; WIPER | 3 | 2203- | FTR | |||
| 036 | I8-98336 025-0 | HOSE; WASHER | 1 | 2203- | FTR | (D) | ||
| 036 | I8-98336 026-0 | HOSE; WASHER | 1 | 2203- | FTR | (B) | ||
| 030 | I8-97927 042-0 | MOTOR ASM; FRT WASHER TANK | 1 | 2203- | FTR | |||
| 002 | I8-98078 813-0 | LINK; FRT WIPER | 1 | 2203- | FTR | (E) | ||
| 007 | I6-83315 047-0 | BLADE; WIPER | 1 | 2203- | FTR | (IADG) (C) | ||
| 005 | I8-98336 018-0 | ARM; WIPER | 1 | 2203- | FTR | (E) | ||
| 005 | I8-98336 019-0 | ARM; WIPER | 1 | 2203- | FTR | (C) | ||
| 036 | I8-98336 024-0 | HOSE; WASHER | 1 | 2203- | FTR | (A) | ||
| 203 | I0-91180 208-0 | NUT; WIPER MOTOR | 4 | 2203- | FTR | M8 FLANGE | ||
| 034 | I8-97927 044-0 | CAP; WASHER TANK | 1 | 2203- | FTR | |||
| 036 | I8-98336 025-0 | HOSE; WASHER | 1 | 2203- | FTR | (D) | ||
| 072 | I8-98078 807-0 | BRACKET; WIPER MOTOR | 1 | 2203- | FTR | |||
| 010 | I0-91111 510-0 | NUT; WIPER ARM TO WIPER PIVOT | 3 | 2203- | FTR | M10 | ||
| 003 | I8-98068 140-1 | PIVOT ASM; FRT WIPER | 1 | 2203- | FTR | (C) | ||
| 046 | I8-98078 808-1 | MOTOR ASM; FRT WINDSHIELD WIPER | 1 | 2203- | FTR | |||
| 047 | I8-98078 805-0 | ARM; CRANK,WIPER MOTOR | 1 | 2203- | FTR | |||
| 007 | I1-83315 048-2 | BLADE; WIPER | 2 | 2203- | FTR | (D) MIDDLE | ||
| 046 | I8-98078 808-1 | MOTOR ASM; FRT WINDSHIELD WIPER | 1 | 2203- | FTR | |||
| 009 | I1-83355 015-0 | RUBBER; FRT WIPER BLADE | 2 | 2203- | FTR | (B) L=500 | ||
| 011 | I8-98320 027-0 | COVER; WIPER ARM | 3 | 2203- | FTR | |||
| 074 | I1-83319 011-0 | WASHER; ARM TO MOTOR | 1 | 2203- | FTR | ID=8.4 OD=22 | ||
| 003 | I8-98078 818-1 | PIVOT ASM; FRT WIPER | 1 | 2203- | FTR | (E) | ||
| 009 | I1-83355 016-0 | RUBBER; FRT WIPER BLADE | 1 | 2203- | FTR | (C) L=475 | ||
| 076 | I1-86810 062-0 | SCREW; BRKT TO WIPER MOTOR | 3 | 2203- | FTR | M6X14 W/WASHER | ||
| 036 | I8-97927 045-0 | HOSE; WASHER | 1 | 2203- | FTR | (C) | ||
| 051 | I1-83319 012-0 | NUT; WIPER MOTOR LINK | 1 | 2203- | FTR | M8 | ||
| 002 | I8-98078 814-1 | LINK; FRT WIPER | 1 | 2203- | FTR | (F) | ||
| 198 | I8-98038 892-1 | COVER; PIVOT,WIPER | 3 | 2203- | FTR | |||
| 040 | I8-97855 163-0 | JOINT; WASHER HOSE | 1 | 2203- | FTR | (A) 3WAY W/CLIP | ||
| 036 | I8-98336 026-0 | HOSE; WASHER | 1 | 2203- | FTR | (B) | ||
| 002 | I8-98078 812-0 | LINK; FRT WIPER | 1 | 2203- | FTR | (D) | ||
| 002 | I8-98078 813-0 | LINK; FRT WIPER | 1 | 2203- | FTR | (E) | ||
| 009 | I1-83355 016-0 | RUBBER; FRT WIPER BLADE | 1 | 2203- | FTR | (C) L=475 | ||
| 002 | I8-98078 814-1 | LINK; FRT WIPER | 1 | 2203- | FTR | (F) | ||
| 051 | I1-83319 012-0 | NUT; WIPER MOTOR LINK | 1 | 2203- | FTR | M8 | ||
| 003 | I8-98078 817-1 | PIVOT ASM; FRT WIPER | 1 | 2203- | FTR | (D) | ||
| 010 | I0-91111 510-0 | NUT; WIPER ARM TO WIPER PIVOT | 3 | 2203- | FTR | M10 | ||
| 042 | I8-98039 708-0 | CLIP; WASHER HOSE | 2 | 2203- | FTR | (B) | ||
| 072 | I8-98078 807-0 | BRACKET; WIPER MOTOR | 1 | 2203- | FTR | |||
| 074 | I1-83319 011-0 | WASHER; ARM TO MOTOR | 1 | 2203- | FTR | ID=8.4 OD=22 | ||
| 039 | I1-83315 085-0 | NOZZLE; WINDSHIELD WASHER | 3 | 2203- | FTR | (A) | ||
| 047 | I8-98078 805-0 | ARM; CRANK,WIPER MOTOR | 1 | 2203- | FTR | |||
| 007 | I6-83315 048-0 | BLADE; WIPER | 2 | 2203- | FTR | (IADG) (D) MIDDLE | ||
| 024 | I8-97927 039-0 | TANK ASM; WASHER | 1 | 2203- | FTR | |||
| 042 | I8-98336 027-0 | CLIP; WASHER HOSE | 3 | 2203- | FTR | (A) | ||
| 095 | I0-91180 106-0 | NUT; WASHER TANK | 4 | 2203- | FTR | M6 FLANGE | ||
| 005 | I8-98336 018-0 | ARM; WIPER | 1 | 2203- | FTR | (E) | ||
| 040 | I8-97307 026-0 | JOINT; WASHER HOSE | 3 | 2203- | FTR | (B) | ||
| 040 | I8-97855 163-0 | JOINT; WASHER HOSE | 1 | 2203- | FTR | (A) 3WAY W/CLIP | ||
| 203 | I0-91180 208-0 | NUT; WIPER MOTOR | 4 | 2203- | FTR | M8 FLANGE | ||
| 007 | I1-83315 047-2 | BLADE; WIPER | 1 | 2203- | FTR | (C) | ||
| 007 | I6-83315 047-0 | BLADE; WIPER | 1 | 2203- | FTR | (IADG) (C) | ||
| 042 | I8-98039 708-0 | CLIP; WASHER HOSE | 2 | 2203- | FTR | (B) | ||
| 003 | I8-98078 818-1 | PIVOT ASM; FRT WIPER | 1 | 2203- | FTR | (E) | ||
| 034 | I8-97927 044-0 | CAP; WASHER TANK | 1 | 2203- | FTR | |||
| 004 | I7-04508 025-A | BOLT; WIPER LINK TO BODY | 6 | 2203- | FTR | M8X20 FLANGE |
