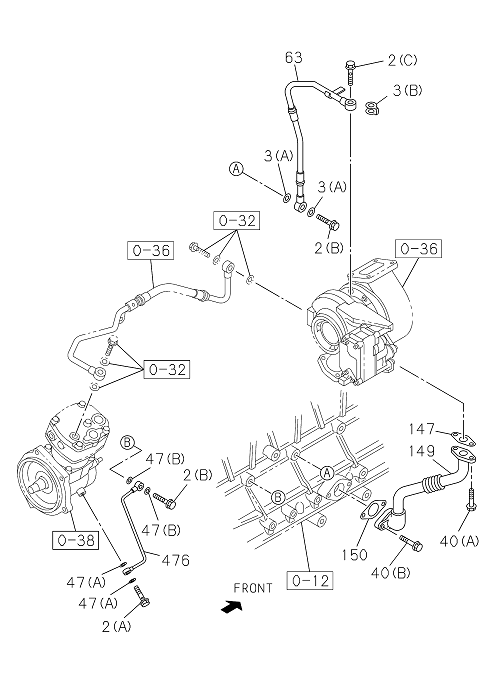

0-52 | OIL AND VACUUM PIPING; ENGINE
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 040 | I0-28650 830-0 | BOLT; OIL PIPE | 2 | 2203- | FVM | (A) M8X30 FLANGE | ||
| 047 | I8-98251 345-0 | GASKET; OIL PIPE | 2 | 2203- | FVM | (B) ID=14.2 OD=19.2 | ||
| 002 | I8-98037 826-0 | BOLT; EYE,OIL PIPE | 1 | 2203- | FVM | (C) M12X27 EYE-BOLT | ||
| 002 | I1-09675 086-0 | BOLT; EYE,OIL PIPE | 2 | 2203- | FVM | (B) M14X27 EYE-BOLT | ||
| 040 | I0-28650 825-0 | BOLT; OIL PIPE | 2 | 2203- | FVM | (B) M8X25 FLANGE | ||
| 003 | I8-98251 345-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 2203- | FVM | (A) ID=14.2 OD=19.2 | ||
| 047 | I1-09630 083-0 | GASKET; OIL PIPE | 2 | 2203- | FVM | (A) ID=10.2 OD=15.2 | ||
| 476 | I8-97610 075-0 | PIPE; OIL,C/BL TO AIR CMPR | 1 | 2203- | FVM | |||
| 150 | I8-94394 671-0 | GASKET; OIL PIPE TO C/BL | 1 | 2203- | FVM | ID=30 | ||
| 002 | I8-97372 238-0 | BOLT; EYE,OIL PIPE | 1 | 2203- | FVM | (A) M10X21 EYE-BOLT | ||
| 063 | I8-97606 204-0 | PIPE; OIL,TURBOCHARGER FEED | 1 | 2203- | FVM | |||
| 147 | I8-94390 641-1 | GASKET; OIL PIPE TO TURBOCHARGER | 1 | 2203- | FVM | |||
| 149 | I8-97606 205-3 | PIPE; OIL RETURN,TURBOCHARGER | 1 | 2203- | FVM | |||
| 003 | I8-97331 137-1 | GASKET; EYE BOLT,OIL PIPE | 1 | 2203- | FVM | (B) ID=12.6 OD=17.6 |
