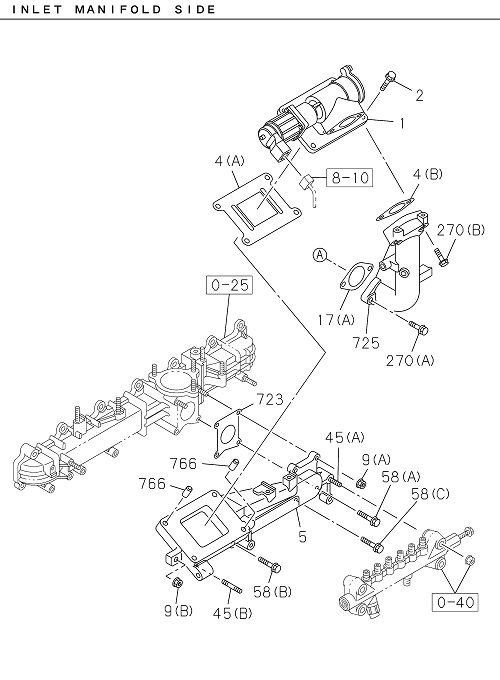

0-57 | EMISSION PIPING
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 766 | I9-11319 065-3 | DOWEL; EGR VLV | 2 | 2203- | FVM | OD=14 L=10 | ||
| 009 | I7-05108 010-A | NUT; EGR ADAPTER | 2 | 2203- | FVM | (A) M8 FLANGE | ||
| 270 | I8-98043 528-0 | BOLT | 3 | 2203- | FVM | (D) M8X28 FLANGE | ||
| 725 | I8-98240 120-1 | DUCT; EGR VLV | 1 | 2203- | FVM | |||
| 017 | I8-97600 167-0 | GASKET; EGR PIPE | 1 | 2203- | FVM | (B) ID=55 | ||
| 472 | I0-28050 830-0 | BOLT; BRKT | 2 | 2203- | FVM | (B) M8X30 FLANGE | ||
| 005 | I8-98239 839-1 | ADAPTER ASM | 1 | 2203- | FVM | |||
| 270 | I0-28050 835-0 | BOLT | 2 | 2203- | FVM | (C) M8X35 FLANGE | ||
| 577 | I8-97604 968-1 | PIPE; AIR,EGR | 1 | 2203- | FVM | |||
| 472 | I0-28060 835-0 | BOLT; BRKT | 3 | 2203- | FVM | (A) M8X35 FLANGE | ||
| 045 | I0-44011 030-0 | STUD; ADAPTER,EGR | 1 | 2203- | FVM | (B) M10X30 L=45 | ||
| 720 | I8-98046 192-1 | GASKET; COOLER | 1 | 2203- | FVM | (A) ID=51.5 | ||
| 004 | I8-97608 423-0 | GASKET; EGR VLV | 1 | 2203- | FVM | (A) | ||
| 720 | I8-97603 889-0 | GASKET; COOLER | 1 | 2203- | FVM | (B) ID=80 | ||
| 058 | I0-28051 035-0 | BOLT; PIPE | 4 | 2203- | FVM | (E) M10X35 FLANGE | ||
| 270 | I0-28050 825-0 | BOLT | 2 | 2203- | FVM | (A) M8X25 FLANGE | ||
| 001 | I8-98238 267-1 | VALVE; EGR | 1 | 2203- | FVM | |||
| 710 | I8-98186 437-0 | BRACKET; EGR COOLER | 1 | 2203- | FVM | (A) | ||
| 009 | I0-91180 110-0 | NUT; EGR ADAPTER | 2 | 2203- | FVM | (B) M10 FLANGE | ||
| 045 | I0-44011 060-0 | STUD; ADAPTER,EGR | 1 | 2203- | FVM | (A) M10X60 L=75 | ||
| 710 | I8-98030 584-0 | BRACKET; EGR COOLER | 1 | 2203- | FVM | (B) | ||
| 058 | I8-98034 764-0 | BOLT; PIPE | 1 | 2203- | FVM | (A) M8X30 FLANGE | ||
| 718 | I8-98030 583-1 | COOLER; EGR | 1 | 2203- | FVM | (B) | ||
| 270 | I0-28051 045-0 | BOLT | 2 | 2203- | FVM | (B) M10X45 FLANGE | ||
| 017 | I8-97601 144-0 | GASKET; EGR PIPE | 2 | 2203- | FVM | (A) ID=44.5 | ||
| 004 | I8-97603 282-0 | GASKET; EGR VLV | 1 | 2203- | FVM | (B) ID=47 | ||
| 002 | I0-28051 035-0 | BOLT; EGR VLV | 4 | 2203- | FVM | M10X35 FLANGE | ||
| 058 | I0-28151 030-0 | BOLT; PIPE | 1 | 2203- | FVM | (B) M10X30 FLANGE | ||
| 718 | I8-98250 860-0 | COOLER; EGR | 1 | 2203- | FVM | (A) | ||
| 058 | I0-28050 860-0 | BOLT; PIPE | 5 | 2203- | FVM | (D) M8X60 FLANGE | ||
| 723 | I8-97605 995-0 | GASKET; REED VLV | 1 | 2203- | FVM | ID=52 | ||
| 058 | I0-28650 830-0 | BOLT; PIPE | 1 | 2203- | FVM | (C) M8X30 FLANGE |
