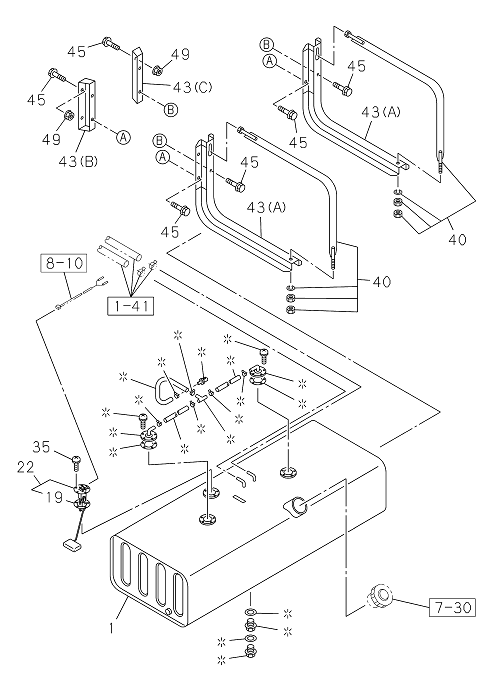

1-40 | FUEL TANK
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 049 | I0-91180 212-0 | NUT; BRKT | 12 | 2203- | FVM | M12 FLANGE | ||
| 022 | I8-98099 320-0 | UNIT; FUEL TANK | 1 | 2203- | FVM | |||
| 049 | I0-91180 212-0 | NUT; BRKT | 12 | 2203- | FVM | M12 FLANGE | ||
| 019 | I5-83148 001-0 | GASKET; FUEL TANK UNIT | 1 | 2203- | FVM | ID=42 OD=71 | ||
| 040 | I8-97520 472-A | BELT; SUPPORT,FUEL TANK | 2 | 2203- | FVM | L=869 | ||
| 022 | I8-98099 320-0 | UNIT; FUEL TANK | 1 | 2203- | FVM | |||
| 043 | I8-97520 474-A | BRACKET; FUEL TANK | 2 | 2203- | FVM | (A) | ||
| 043 | I7-56401 303-A | BRACKET; FUEL TANK | 2 | 2203- | FVM | (C) | ||
| 035 | I0-36220 512-0 | SCREW; FUEL TANK UNIT | 5 | 2203- | FVM | M5X12 W/LK WASHER | ||
| 001 | I7-56200 321-A | TANK; FUEL | 1 | 2203- | FVM | 1345X532X322 200L | ||
| 040 | I8-97520 472-A | BELT; SUPPORT,FUEL TANK | 2 | 2203- | FVM | L=869 | ||
| 043 | I7-56401 302-A | BRACKET; FUEL TANK | 2 | 2203- | FVM | (B) | ||
| 043 | I7-56401 302-A | BRACKET; FUEL TANK | 2 | 2203- | FVM | (B) | ||
| 045 | I0-28651 240-0 | BOLT; BRKT,FUEL TANK | 20 | 2203- | FVM | M12X40 FLANGE | ||
| 035 | I0-36220 512-0 | SCREW; FUEL TANK UNIT | 5 | 2203- | FVM | M5X12 W/LK WASHER | ||
| 043 | I8-97520 474-A | BRACKET; FUEL TANK | 2 | 2203- | FVM | (A) | ||
| 019 | I5-83148 001-0 | GASKET; FUEL TANK UNIT | 1 | 2203- | FVM | ID=42 OD=71 | ||
| 001 | I7-56200 321-A | TANK; FUEL | 1 | 2203- | FVM | 1345X532X322 200L | ||
| 043 | I7-56401 303-A | BRACKET; FUEL TANK | 2 | 2203- | FVM | (C) | ||
| 045 | I0-28651 240-0 | BOLT; BRKT,FUEL TANK | 20 | 2203- | FVM | M12X40 FLANGE |
