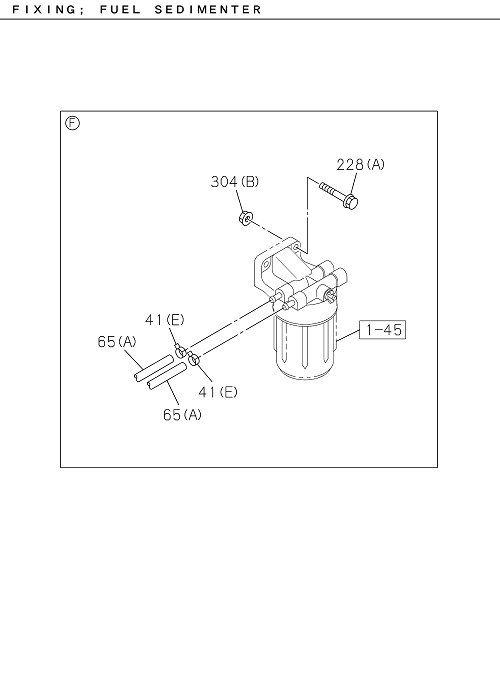

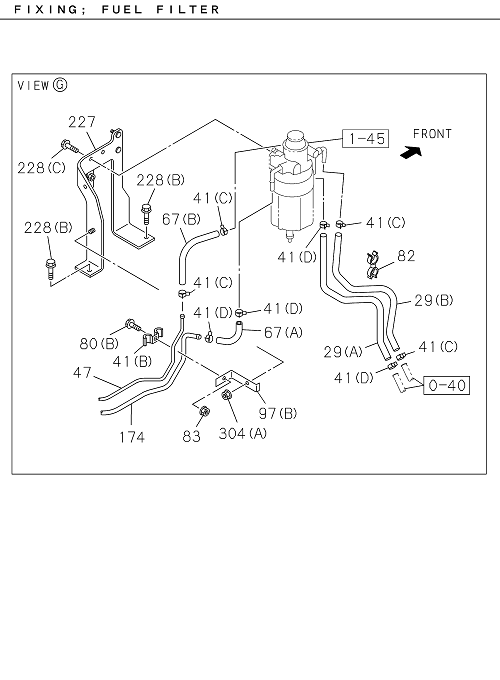

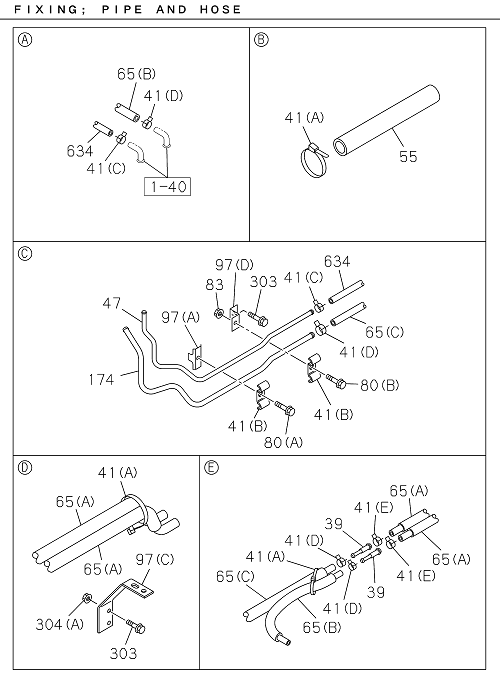

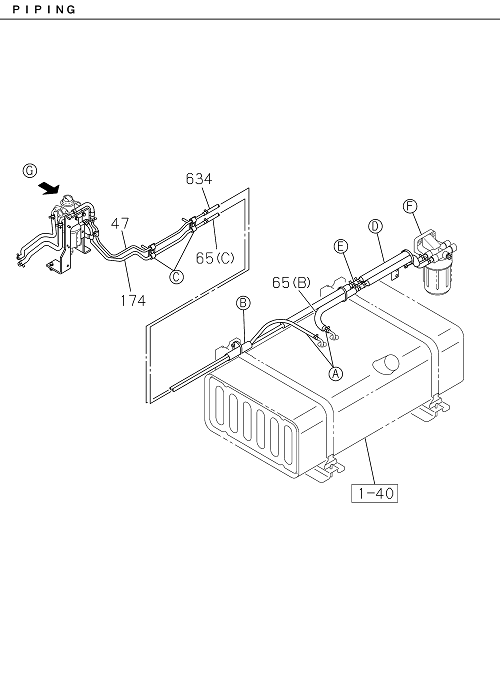

1-41 | FUEL PIPING; CHASSIS
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 080 | I0-28050 845-0 | BOLT; CLIP,FUEL TANK | 1 | 2203- | FVM | (A) M8X45 FLANGE | ||
| 067 | I8-98336 357-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FVM | (B) L=210 | ||
| 174 | I8-97650 547-0 | PIPE; FUEL,FEED,FRT | 1 | 2203- | FVM | |||
| 303 | I0-28650 830-0 | BOLT; BRKT | 3 | 2203- | FVM | M8X30 FLANGE | ||
| 055 | I1-09360 677-1 | COVER; PIPE,FUEL TANK | 1 | 2203- | FVM | L=150 SERVICED BY L=1300 | ||
| 228 | I7-04508 025-A | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FVM | (C) M8X20 FLANGE | ||
| 041 | I5-09707 030-1 | CLIP; FUEL PIPE,FUEL TANK | 3 | 2203- | FVM | (A) L=250 | ||
| 634 | I8-98336 355-0 | HOSE; RUBBER RETURN | 1 | 2203- | FVM | L=700 | ||
| 041 | I8-97173 220-0 | CLIP; FUEL PIPE,FUEL TANK | 6 | 2203- | FVM | (C) ID=13 | ||
| 228 | I0-28050 830-0 | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FVM | (B) M8X30 FLANGE | ||
| 067 | I0-01859 300-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FVM | (A) L=110 SERVICED BY L=3000 | ||
| 039 | I8-98359 701-0 | PIPE; FUEL | 2 | 2203- | FVM | |||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FVM | (B) M10 FLANGE | ||
| 227 | I8-98329 122-0 | BRACKET; FUEL SEDIMENTER | 1 | 2203- | FVM | |||
| 083 | I7-05108 010-A | NUT; CLIP,FUEL TANK | 2 | 2203- | FVM | M8 FLANGE | ||
| 047 | I8-97650 546-0 | PIPE; FUEL,RETURN | 1 | 2203- | FVM | L=632 | ||
| 080 | I0-28050 845-0 | BOLT; CLIP,FUEL TANK | 1 | 2203- | FVM | (A) M8X45 FLANGE | ||
| 041 | I5-09707 030-1 | CLIP; FUEL PIPE,FUEL TANK | 3 | 2203- | FVM | (A) L=250 | ||
| 029 | I8-98309 530-0 | HOSE; FUEL | 1 | 2203- | FVM | (A) | ||
| 228 | I0-28051 050-0 | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FVM | (A) M10X50 FLANGE | ||
| 080 | I7-04508 025-A | BOLT; CLIP,FUEL TANK | 2 | 2203- | FVM | (B) M8X20 FLANGE | ||
| 097 | I8-97650 545-0 | BRACKET; CLIP | 1 | 2203- | FVM | (D) | ||
| 029 | I8-98309 531-0 | HOSE; FUEL | 1 | 2203- | FVM | (B) | ||
| 634 | I8-98336 355-0 | HOSE; RUBBER RETURN | 1 | 2203- | FVM | L=700 | ||
| 097 | I8-98379 567-0 | BRACKET; CLIP | 1 | 2203- | FVM | (C) | ||
| 029 | I8-98309 531-0 | HOSE; FUEL | 1 | 2203- | FVM | (B) | ||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 8 | 2203- | FVM | (D) ID=16 | ||
| 083 | I7-05108 010-A | NUT; CLIP,FUEL TANK | 2 | 2203- | FVM | M8 FLANGE | ||
| 067 | I8-98336 357-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FVM | (B) L=210 | ||
| 041 | I8-98150 356-0 | CLIP; FUEL PIPE,FUEL TANK | 4 | 2203- | FVM | (E) ID=19 | ||
| 227 | I8-98329 122-0 | BRACKET; FUEL SEDIMENTER | 1 | 2203- | FVM | |||
| 039 | I8-98359 701-0 | PIPE; FUEL | 2 | 2203- | FVM | |||
| 228 | I0-28051 050-0 | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FVM | (A) M10X50 FLANGE | ||
| 041 | I8-97173 220-0 | CLIP; FUEL PIPE,FUEL TANK | 6 | 2203- | FVM | (C) ID=13 | ||
| 303 | I0-28650 830-0 | BOLT; BRKT | 3 | 2203- | FVM | M8X30 FLANGE | ||
| 065 | I8-98359 648-0 | HOSE; FUEL,DELIVERY PIPE | 2 | 2203- | FVM | (A) L=422 | ||
| 228 | I0-28050 830-0 | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FVM | (B) M8X30 FLANGE | ||
| 080 | I7-04508 025-A | BOLT; CLIP,FUEL TANK | 2 | 2203- | FVM | (B) M8X20 FLANGE | ||
| 097 | I1-47475 427-1 | BRACKET; CLIP | 1 | 2203- | FVM | (A) | ||
| 029 | I8-98309 530-0 | HOSE; FUEL | 1 | 2203- | FVM | (A) | ||
| 065 | I8-98353 050-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | FVM | (B) L=470 | ||
| 228 | I7-04508 025-A | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FVM | (C) M8X20 FLANGE | ||
| 082 | I8-94169 028-0 | CLIP; FUEL HOSE | 1 | 2203- | FVM | ID=13 & 16.5 | ||
| 174 | I8-97650 547-0 | PIPE; FUEL,FEED,FRT | 1 | 2203- | FVM | |||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 8 | 2203- | FVM | (D) ID=16 | ||
| 065 | I8-98353 050-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | FVM | (B) L=470 | ||
| 097 | I8-97650 545-0 | BRACKET; CLIP | 1 | 2203- | FVM | (D) | ||
| 047 | I8-97650 546-0 | PIPE; FUEL,RETURN | 1 | 2203- | FVM | L=632 | ||
| 097 | I1-47475 427-1 | BRACKET; CLIP | 1 | 2203- | FVM | (A) | ||
| 041 | I1-09700 688-0 | CLIP; FUEL PIPE,FUEL TANK | 3 | 2203- | FVM | (B) ID=11 & 9 L=17.5 & 17.5 | ||
| 055 | I1-09360 677-1 | COVER; PIPE,FUEL TANK | 1 | 2203- | FVM | L=150 SERVICED BY L=1300 | ||
| 065 | I8-98359 648-0 | HOSE; FUEL,DELIVERY PIPE | 2 | 2203- | FVM | (A) L=422 | ||
| 097 | I8-98379 567-0 | BRACKET; CLIP | 1 | 2203- | FVM | (C) | ||
| 082 | I8-94169 028-0 | CLIP; FUEL HOSE | 1 | 2203- | FVM | ID=13 & 16.5 | ||
| 041 | I1-09700 688-0 | CLIP; FUEL PIPE,FUEL TANK | 3 | 2203- | FVM | (B) ID=11 & 9 L=17.5 & 17.5 | ||
| 304 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | FVM | (A) M8 FLANGE | ||
| 097 | I8-98053 654-0 | BRACKET; CLIP | 1 | 2203- | FVM | (B) | ||
| 067 | I0-01859 300-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FVM | (A) L=110 SERVICED BY L=3000 | ||
| 304 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | FVM | (A) M8 FLANGE | ||
| 065 | I8-98353 051-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | FVM | (C) L=1040 | ||
| 041 | I8-98150 356-0 | CLIP; FUEL PIPE,FUEL TANK | 4 | 2203- | FVM | (E) ID=19 | ||
| 065 | I8-98353 051-A | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | FVM | (C) L=1040 | ||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FVM | (B) M10 FLANGE | ||
| 097 | I8-98053 654-0 | BRACKET; CLIP | 1 | 2203- | FVM | (B) | ||
| 304 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | FVM | (A) M8 FLANGE |
