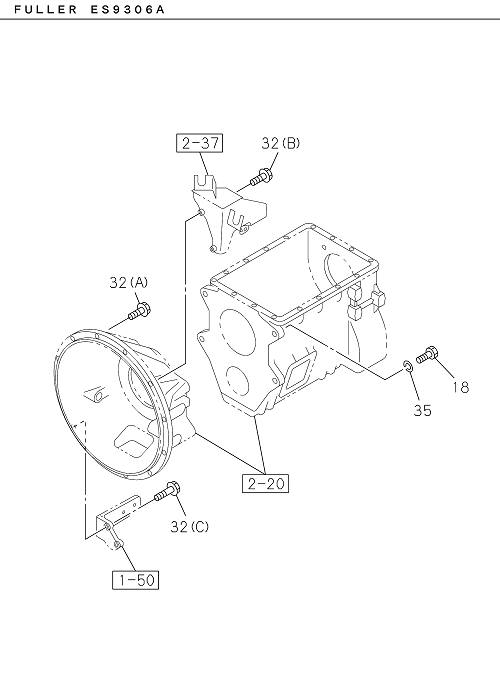

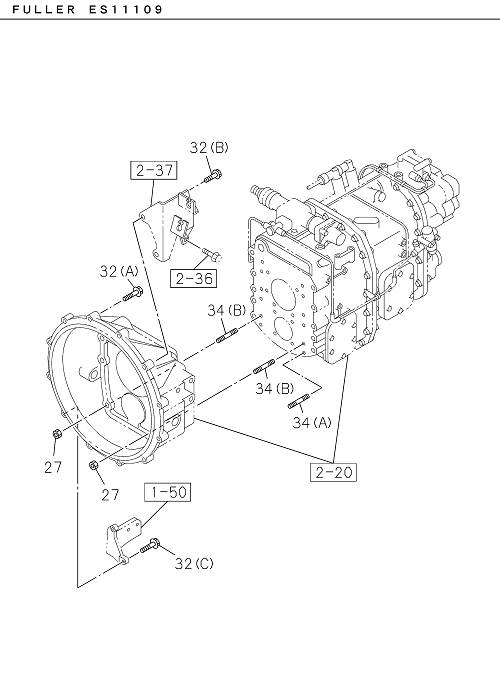

2-25 | SPEEDOMETER DRIVEN GEAR
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 034 | I1-33119 581-0 | STUD; CLU HSG | 10 | 2203- | FVM 280 | (A) | ||
| 034 | I1-33119 581-0 | STUD; CLU HSG | 10 | 2203- | FVM 280 | (A) | ||
| 018 | IE-33054 800-0 | BOLT; CLU HSG TO TRANS | 4 | 2203- | FVM 245 | |||
| 035 | IE-31000 000-0 | WASHER; LK,CLU HSG TO TRANS | 4 | 2203- | FVM 245 | |||
| 018 | IE-33054 800-0 | BOLT; CLU HSG TO TRANS | 4 | 2203- | FVM 245 | |||
| 032 | I0-28051 045-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FVM 245 | (B) M10X45 FLANGE | ||
| 032 | I0-28161 050-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FVM 280 | (B) M10X50 FLANGE | ||
| 027 | IE-91204 000-0 | NUT; CLU HSG TO TRANS | 12 | 2203- | FVM 280 | |||
| 032 | I0-28051 035-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 8 | 2203- | FVM 245 | (A) M10X35 FLANGE | ||
| 032 | I0-28161 050-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FVM 280 | (B) M10X50 FLANGE | ||
| 032 | I0-28051 045-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FVM 245 | (B) M10X45 FLANGE | ||
| 034 | IE-88746 990-0 | STUD; CLU HSG | 2 | 2203- | FVM 280 | (B) | ||
| 034 | IE-88746 990-0 | STUD; CLU HSG | 2 | 2203- | FVM 280 | (B) | ||
| 032 | I8-98234 152-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FVM 280 | (C) M10X53 FLANGE | ||
| 032 | I8-98234 150-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FVM 245 | (C) M10X45 FLANGE | ||
| 032 | I0-28161 040-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 8 | 2203- | FVM 280 | (A) M10X40 FLANGE | ||
| 032 | I0-28051 035-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 8 | 2203- | FVM 245 | (A) M10X35 FLANGE | ||
| 032 | I0-28161 040-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 8 | 2203- | FVM 280 | (A) M10X40 FLANGE | ||
| 035 | IE-31000 000-0 | WASHER; LK,CLU HSG TO TRANS | 4 | 2203- | FVM 245 | |||
| 032 | I8-98234 152-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FVM 280 | (C) M10X53 FLANGE | ||
| 032 | I8-98234 150-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FVM 245 | (C) M10X45 FLANGE | ||
| 027 | IE-91204 000-0 | NUT; CLU HSG TO TRANS | 12 | 2203- | FVM 280 |
