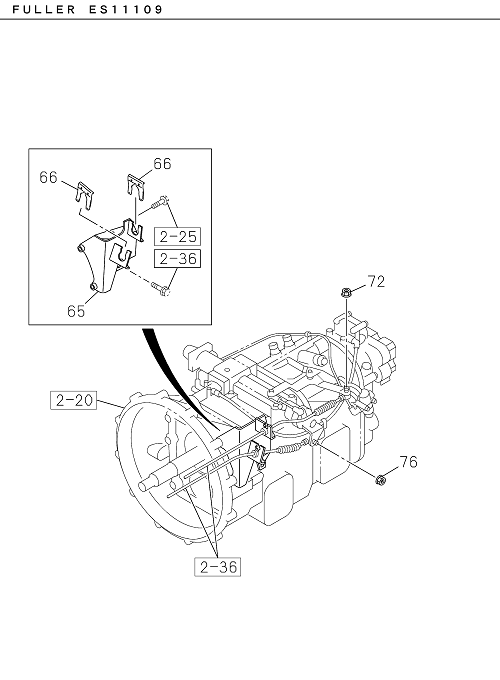

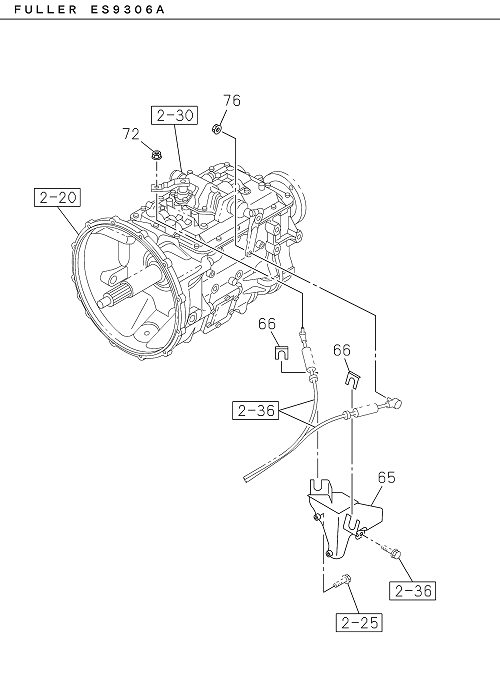

2-37 | MANUAL TRANSMISSION CONT; MISSION SIDE
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 065 | I8-98311 314-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FVM 245 | |||
| 076 | I1-09440 061-0 | NUT; BALL JOINT,SELECT WIRE | 1 | 2203- | FVM 245 | M10 FLANGE | ||
| 072 | I1-09440 062-1 | NUT; TRANS CONT,SELECT | 1 | 2203- | FVM | M8 FLANGE | ||
| 065 | I8-98131 609-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FVM 280 | |||
| 065 | I8-98311 314-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FVM 245 | |||
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 2203- | FVM | ID=22.2 | ||
| 072 | I1-09440 062-1 | NUT; TRANS CONT,SELECT | 1 | 2203- | FVM | M8 FLANGE | ||
| 076 | I1-09440 061-0 | NUT; BALL JOINT,SELECT WIRE | 1 | 2203- | FVM 245 | M10 FLANGE | ||
| 065 | I8-98131 609-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FVM 280 | |||
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 2203- | FVM | ID=22.2 | ||
| 076 | I1-09440 062-1 | NUT; BALL JOINT,SELECT WIRE | 1 | 2203- | FVM 280 | M8 FLANGE |
