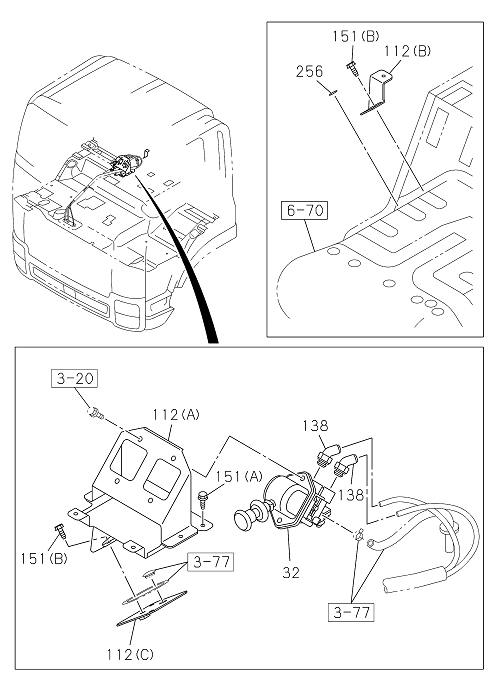

3-26 | TRAILER CONTROL
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 138 | I1-09661 520-0 | CONNECTOR; DELIVERY | 2 | 2203- | FVM | DIN8 & M16 ELBOW | ||
| 112 | I8-98314 604-1 | BRACKET; CONT VLV | 1 | 2203- | FVM | (A) | ||
| 256 | I1-76798 029-0 | SEAL | 6 | 2203- | FVM | OD=25 BLACK | ||
| 032 | I8-98299 003-0 | VALVE; BRK,HAND CONT | 1 | 2203- | FVM | |||
| 112 | I8-98314 605-0 | BRACKET; CONT VLV | 1 | 2203- | FVM | (B) | ||
| 112 | I8-98314 607-1 | BRACKET; CONT VLV | 1 | 2203- | FVM | (C) | ||
| 151 | I0-52000 820-0 | BOLT; VLV BRKT | 4 | 2203- | FVM | (B) M8X20 W/LK&PL WASHER | ||
| 151 | I0-52000 616-0 | BOLT; VLV BRKT | 2 | 2203- | FVM | (A) M6X16 | ||
| 151 | I0-52000 820-0 | BOLT; VLV BRKT | 4 | 2203- | FVM | (B) M8X20 W/LK&PL WASHER | ||
| 112 | I8-98314 604-1 | BRACKET; CONT VLV | 1 | 2203- | FVM | (A) | ||
| 112 | I8-98314 605-0 | BRACKET; CONT VLV | 1 | 2203- | FVM | (B) | ||
| 256 | I1-76798 029-0 | SEAL | 6 | 2203- | FVM | OD=25 BLACK | ||
| 112 | I8-98314 607-1 | BRACKET; CONT VLV | 1 | 2203- | FVM | (C) | ||
| 032 | I8-98299 003-0 | VALVE; BRK,HAND CONT | 1 | 2203- | FVM | |||
| 138 | I1-09661 520-0 | CONNECTOR; DELIVERY | 2 | 2203- | FVM | DIN8 & M16 ELBOW | ||
| 151 | I0-52000 616-0 | BOLT; VLV BRKT | 2 | 2203- | FVM | (A) M6X16 |
