PORTAL SPAREPART

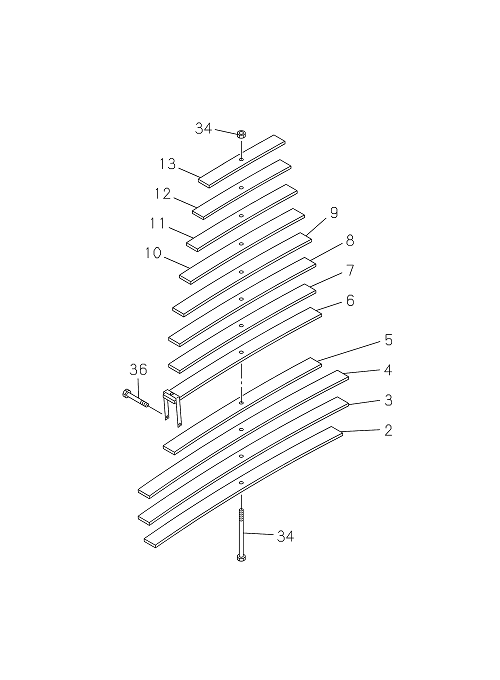

4-65 | REAR LEAF SPRING

Partial Engine

GIGA E4

GIGA FVM E4

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
034 I7-00187 100-A BOLT; CENTER,LEAF SPR,RR MAIN 2 2203-2207 FVM
010 I8-97187 009-A SPRING; LEAF,NO 9,RR MAIN 2 2203-2207 FVM
009 I7-66002 326-A SPRING; LEAF,NO 8,RR MAIN 2 2208- FVM T= 18; 90X990
012 I7-66002 329-A SPRING; LEAF,NO 11,RR MAIN 2 2208- FVM T= 18; 90X640
012 I7-66002 329-A SPRING; LEAF,NO 11,RR MAIN 2 2208- FVM T= 18; 90X640
004 I6-97187 003-0 SPRING; LEAF,NO 3,RR MAIN 2 2203-2207 FVM (IADG)
007 I7-66002 324-A SPRING; LEAF,NO 6,RR MAIN 2 2208- FVM T= 18; 90X1120
008 I8-97187 007-A SPRING; LEAF,NO 7,RR MAIN 2 2203-2207 FVM
002 I6-97187 001-0 SPRING; LEAF,NO 1,RR MAIN 2 2203-2207 FVM (IADG)
013 I6-97187 012-0 SPRING; LEAF,NO 12,RR MAIN 2 2203-2207 FVM (IADG)
011 I7-66002 328-A SPRING; LEAF,NO 10,RR MAIN 2 2208- FVM T= 18; 90X750
012 I6-97187 011-0 SPRING; LEAF,NO 11,RR MAIN 2 2203-2207 FVM (IADG)
007 I7-66002 324-A SPRING; LEAF,NO 6,RR MAIN 2 2208- FVM T= 18; 90X1120
006 I7-66002 323-A SPRING; LEAF,NO 5,RR MAIN 2 2208- FVM T= 18; 90X1210
010 I6-97187 009-0 SPRING; LEAF,NO 9,RR MAIN 2 2203-2207 FVM (IADG)
011 I8-97187 010-A SPRING; LEAF,NO 10,RR MAIN 2 2203-2207 FVM
005 I8-97187 004-A SPRING; LEAF,NO 4,RR MAIN 2 2203-2207 FVM
013 I7-66002 330-A SPRING; LEAF,NO 12,RR MAIN 2 2208- FVM T= 18; 90X510
002 I8-97187 001-A SPRING; LEAF,NO 1,RR MAIN 2 2203-2207 FVM
013 I8-97187 012-A SPRING; LEAF,NO 12,RR MAIN 2 2203-2207 FVM
005 I8-97187 004-A SPRING; LEAF,NO 4,RR MAIN 2 2203-2207 FVM
011 I8-97187 010-A SPRING; LEAF,NO 10,RR MAIN 2 2203-2207 FVM
009 I7-66002 326-A SPRING; LEAF,NO 8,RR MAIN 2 2208- FVM T= 18; 90X990
007 I6-97187 006-0 SPRING; LEAF,NO 6,RR MAIN 2 2203-2207 FVM (IADG)
003 I6-97187 002-0 SPRING; LEAF,NO 2,RR MAIN 2 2203-2207 FVM (IADG)
004 I8-97187 003-A SPRING; LEAF,NO 3,RR MAIN 2 2203-2207 FVM
008 I7-66002 325-A SPRING; LEAF,NO 7,RR MAIN 2 2208- FVM T= 18; 90X1120
059 I7-00018 340-A SPACER 2 2208- FVM T= 18; 90X340
012 I8-97187 011-A SPRING; LEAF,NO 11,RR MAIN 2 2203-2207 FVM
004 I7-66002 321-A SPRING; LEAF,NO 3,RR MAIN 2 2208- FVM T= 18; 90X1570
003 I6-97187 002-0 SPRING; LEAF,NO 2,RR MAIN 2 2203-2207 FVM (IADG)
004 I7-66002 321-A SPRING; LEAF,NO 3,RR MAIN 2 2208- FVM T= 18; 90X1570
011 I7-66002 328-A SPRING; LEAF,NO 10,RR MAIN 2 2208- FVM T= 18; 90X750
011 I6-97187 010-0 SPRING; LEAF,NO 10,RR MAIN 2 2203-2207 FVM (IADG)
007 I8-97187 006-A SPRING; LEAF,NO 6,RR MAIN 2 2203-2207 FVM
004 I8-97187 003-A SPRING; LEAF,NO 3,RR MAIN 2 2203-2207 FVM
009 I6-97187 008-0 SPRING; LEAF,NO 8,RR MAIN 2 2203-2207 FVM (IADG)
006 I6-97187 005-0 SPRING; LEAF,NO 5,RR MAIN 2 2203-2207 FVM (IADG)
034 I7-41917 250-A BOLT; CENTER,LEAF SPR,RR MAIN 2 2208- FVM
036 I7-00187 200-A BOLT; CLIP,LEAF SPR,RR 4 2203-2207 FVM
009 I8-97187 008-A SPRING; LEAF,NO 8,RR MAIN 2 2203-2207 FVM
007 I8-97187 006-A SPRING; LEAF,NO 6,RR MAIN 2 2203-2207 FVM
010 I6-97187 009-0 SPRING; LEAF,NO 9,RR MAIN 2 2203-2207 FVM (IADG)
008 I6-97187 007-0 SPRING; LEAF,NO 7,RR MAIN 2 2203-2207 FVM (IADG)
006 I8-97187 005-A SPRING; LEAF,NO 5,RR MAIN 2 2203-2207 FVM
006 I6-97187 005-0 SPRING; LEAF,NO 5,RR MAIN 2 2203-2207 FVM (IADG)
004 I6-97187 003-0 SPRING; LEAF,NO 3,RR MAIN 2 2203-2207 FVM (IADG)
005 I7-66002 322-A SPRING; LEAF,NO 4,RR MAIN 2 2208- FVM T= 18; 90X1210
012 I6-97187 011-0 SPRING; LEAF,NO 11,RR MAIN 2 2203-2207 FVM (IADG)
005 I7-66002 322-A SPRING; LEAF,NO 4,RR MAIN 2 2208- FVM T= 18; 90X1210
010 I7-66002 327-A SPRING; LEAF,NO 9,RR MAIN 2 2208- FVM T= 18; 90X990
003 I8-97187 002-A SPRING; LEAF,NO 2,RR MAIN 2 2203-2207 FVM
010 I7-66002 327-A SPRING; LEAF,NO 9,RR MAIN 2 2208- FVM T= 18; 90X990
008 I8-97187 007-A SPRING; LEAF,NO 7,RR MAIN 2 2203-2207 FVM
006 I8-97187 005-A SPRING; LEAF,NO 5,RR MAIN 2 2203-2207 FVM
034 I7-00187 100-A BOLT; CENTER,LEAF SPR,RR MAIN 2 2203-2207 FVM
008 I6-97187 007-0 SPRING; LEAF,NO 7,RR MAIN 2 2203-2207 FVM (IADG)
003 I8-97187 002-A SPRING; LEAF,NO 2,RR MAIN 2 2203-2207 FVM
013 I8-97187 012-A SPRING; LEAF,NO 12,RR MAIN 2 2203-2207 FVM
002 I7-66002 319-A SPRING; LEAF,NO 1,RR MAIN 2 2208- FVM T= 18; 90x1570
003 I7-66002 320-A SPRING; LEAF,NO 2,RR MAIN 2 2208- FVM T= 18; 90X1570
007 I6-97187 006-0 SPRING; LEAF,NO 6,RR MAIN 2 2203-2207 FVM (IADG)
034 I7-41917 250-A BOLT; CENTER,LEAF SPR,RR MAIN 2 2208- FVM
009 I8-97187 008-A SPRING; LEAF,NO 8,RR MAIN 2 2203-2207 FVM
009 I6-97187 008-0 SPRING; LEAF,NO 8,RR MAIN 2 2203-2207 FVM (IADG)
002 I6-97187 001-0 SPRING; LEAF,NO 1,RR MAIN 2 2203-2207 FVM (IADG)
010 I8-97187 009-A SPRING; LEAF,NO 9,RR MAIN 2 2203-2207 FVM
005 I6-97187 004-0 SPRING; LEAF,NO 4,RR MAIN 2 2203-2207 FVM (IADG)
059 I7-00018 340-A SPACER 2 2208- FVM T= 18; 90X340
008 I7-66002 325-A SPRING; LEAF,NO 7,RR MAIN 2 2208- FVM T= 18; 90X1120
011 I6-97187 010-0 SPRING; LEAF,NO 10,RR MAIN 2 2203-2207 FVM (IADG)
013 I7-66002 330-A SPRING; LEAF,NO 12,RR MAIN 2 2208- FVM T= 18; 90X510
006 I7-66002 323-A SPRING; LEAF,NO 5,RR MAIN 2 2208- FVM T= 18; 90X1210
013 I6-97187 012-0 SPRING; LEAF,NO 12,RR MAIN 2 2203-2207 FVM (IADG)
005 I6-97187 004-0 SPRING; LEAF,NO 4,RR MAIN 2 2203-2207 FVM (IADG)
002 I7-66002 319-A SPRING; LEAF,NO 1,RR MAIN 2 2208- FVM T= 18; 90x1570
002 I8-97187 001-A SPRING; LEAF,NO 1,RR MAIN 2 2203-2207 FVM
003 I7-66002 320-A SPRING; LEAF,NO 2,RR MAIN 2 2208- FVM T= 18; 90X1570
036 I7-00187 200-A BOLT; CLIP,LEAF SPR,RR 4 2203-2207 FVM
012 I8-97187 011-A SPRING; LEAF,NO 11,RR MAIN 2 2203-2207 FVM
