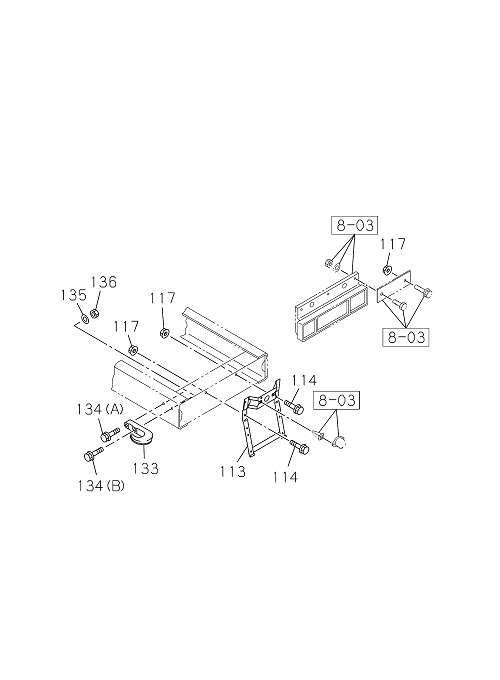

6-90 | REAR BUMPER
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 134 | I0-20851 660-0 | BOLT; HOOK | 1 | 2203- | FVM | (B) M16X60 | ||
| 113 | I8-97696 386-A | BRACKET; LICENSE PLATE | 1 | 2203- | FVM | |||
| 136 | I0-91110 516-0 | NUT; HOOK | 2 | 2203- | FVM | M16 | ||
| 133 | I1-57181 027-A | HOOK | 1 | 2203- | FVM | |||
| 136 | I0-91110 516-0 | NUT; HOOK | 2 | 2203- | FVM | M16 | ||
| 135 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 2203- | FVM | ID=16.2 | ||
| 134 | I0-20851 660-0 | BOLT; HOOK | 1 | 2203- | FVM | (B) M16X60 | ||
| 134 | I0-20851 650-0 | BOLT; HOOK | 1 | 2203- | FVM | (A) M16X50 | ||
| 134 | I0-20851 650-0 | BOLT; HOOK | 1 | 2203- | FVM | (A) M16X50 | ||
| 133 | I1-57181 027-A | HOOK | 1 | 2203- | FVM | |||
| 114 | I7-04508 025-A | BOLT; BRKT,LICENSE PLATE | 2 | 2203- | FVM | M8X20 FLANGE | ||
| 117 | I7-05108 010-A | NUT; BRKT | 4 | 2203- | FVM | M8 FLANGE | ||
| 117 | I7-05108 010-A | NUT; BRKT | 4 | 2203- | FVM | M8 FLANGE | ||
| 135 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 2203- | FVM | ID=16.2 | ||
| 113 | I8-97696 386-A | BRACKET; LICENSE PLATE | 1 | 2203- | FVM | |||
| 114 | I7-04508 025-A | BOLT; BRKT,LICENSE PLATE | 2 | 2203- | FVM | M8X20 FLANGE |
