| 086 |
I8-98368 235-0 |
|
BUSHING; GUIDE |
4 |
2405- |
|
FVM |
|
| 359 |
I8-97417 261-0 |
|

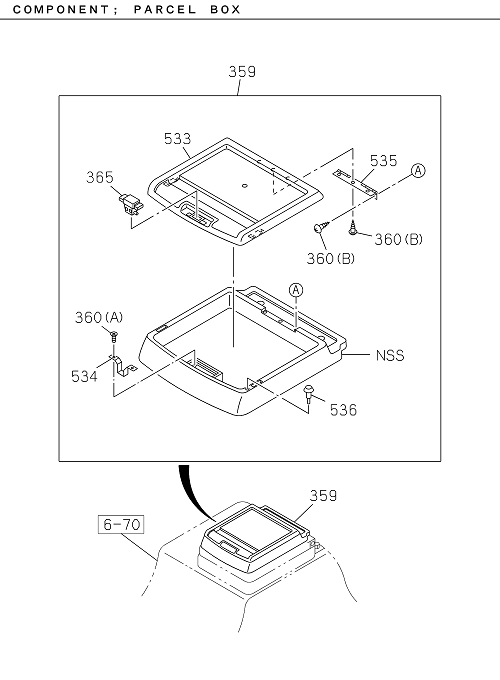

BOX; PARCEL |
1 |
2203-2303 |
|
FVM |
GRAY |
| 080 |
I8-98368 236-0 |
|
RUBBER; STOPPER |
1 |
2405- |
|
FVM |
(A) |
| 099 |
I8-98370 890-0 |
|
BUSHING; SEAT BACK |
1 |
2405- |
|
FVM |
(B) |
| 630 |
I8-98063 225-0 |
|
NUT; CAP |
1 |
2203- |
|
FVM |
M8 |
| 306 |
I0-91180 110-0 |
|
NUT; SEAT ADJ |
2 |
2203- |
|
FVM |
(B) M10 FLANGE |
| 018 |
I8-97469 306-0 |
|
COVER; RECLINING |
1 |
2405- |
|
FVM |
|
| 360 |
I0-70040 514-0 |
|
SCREW; PARCEL |
2 |
2203- |
|
FVM |
(A) M5X14 TAPPING CK-HEAD |
| 201 |
I1-75518 289-1 |
|
CABLE; ADJ |
1 |
2203- |
|
FVM |
(B) FOR RIGHT L=605 |
| 306 |
I1-75538 207-A |
|
NUT; SEAT ADJ |
8 |
2203- |
|
FVM |
(A) M8 FLANGE |
| 079 |
I8-98368 248-0 |
|
ROLLER ASM; AIR SUSP |
4 |
2405- |
|
FVM |
|
| 099 |
I8-98112 751-0 |
|
BUSHING; SEAT BACK |
1 |
2405- |
|
FVM |
(A) |
| 113 |
I7-31031 312-A |
|

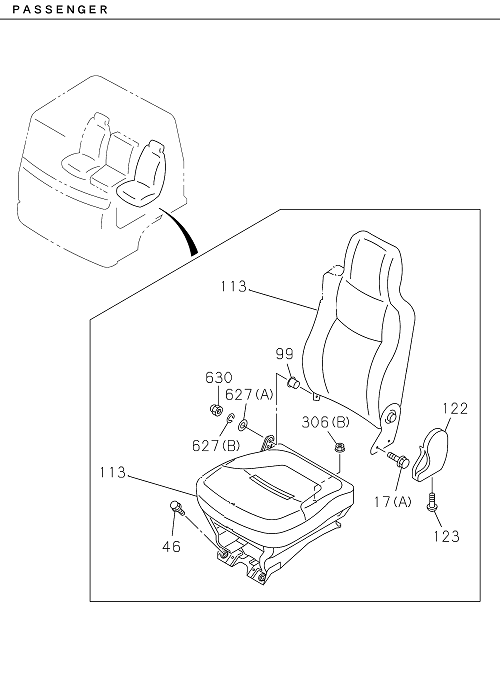

BACK ASM; SEAT |
1 |
2203- |
|
FVM |
DARK GRAY |
| 042 |
I1-75558 604-3 |
|
STAND; DRIVER SEAT |
1 |
2203- |
|
FVM |
|
| 471 |
I8-98107 869-0 |
|
LEVER; SEAT ADJ |
1 |
2203- |
|
FVM |
|
| 001 |
I7-31011 314-A |
|
SEAT ASM; DRVR |
1 |
2203- |
|
FVM |
DARK GRAY |
| 534 |
I1-72538 190-0 |
|
STRIKER; PARCEL BOX |
1 |
2203- |
|
FVM |
|
| 322 |
I8-98370 506-1 |
|
VALVE; AIR SPRING |
1 |
2405- |
|
FVM |
|
| 123 |
I8-98070 026-0 |
|
SCREW; COVER,RECLINING |
1 |
2203- |
|
FVM |
M5 |
| 100 |
I8-98286 009-0 |
|
COVER; HINGE |
1 |
2203- |
|
FVM |
|
| 122 |
I7-32221 311-A |
|
COVER; ADJ,RECLINING |
1 |
2203- |
|
FVM |
GRAY |
| 099 |
I8-98112 751-0 |
|
BUSHING; SEAT BACK |
1 |
2405- |
|
FVM |
(A) |
| 365 |
I1-72538 312-0 |
|
LOCK ASM; SEAT |
1 |
2203- |
|
FVM |
|
| 017 |
I8-98062 661-0 |
|
BOLT; RECLINING |
2 |
2203- |
|
FVM |
(B) M10X20 |
| 017 |
I8-98092 334-0 |
|
BOLT; RECLINING |
2 |
2203- |
|
FVM |
(A) M8X20 |
| 622 |
I8-98370 874-0 |
|
HANDLE; SEAT ADJUSTER |
1 |
2405- |
|
FVM |
|
| 069 |
I0-91180 110-0 |
|
NUT; FRT SEAT |
2 |
2203- |
|
FVM |
M10 FLANGE |
| 627 |
I8-98063 223-0 |
|
WASHER; FRT SEAT |
1 |
2203- |
|
FVM |
(A) |
| 630 |
I8-98063 225-0 |
|
NUT; CAP |
1 |
2203- |
|
FVM |
M8 |
| 081 |
I8-98368 247-0 |
|
SPRING; AIR |
1 |
2405- |
|
FVM |
|
| 322 |
I8-98370 506-1 |
|
VALVE; AIR SPRING |
1 |
2405- |
|
FVM |
|
| 017 |
I8-98092 334-0 |
|
BOLT; RECLINING |
2 |
2203- |
|
FVM |
(A) M8X20 |
| 016 |
I1-75418 062-1 |
|
ADJUSTER ASM; RECLINING |
1 |
2203- |
|
FVM |
|
| 536 |
I1-72538 187-0 |
|
RUBBER; CUSHION |
2 |
2203- |
|
FVM |
|
| 099 |
I8-98370 890-0 |
|
BUSHING; SEAT BACK |
1 |
2405- |
|
FVM |
(B) |
| 126 |
I8-97854 900-0 |
|
BUSHING; HINGE,RECLINING |
1 |
2203- |
|
FVM |
(B) |
| 175 |
I7-31021 312-A |
|

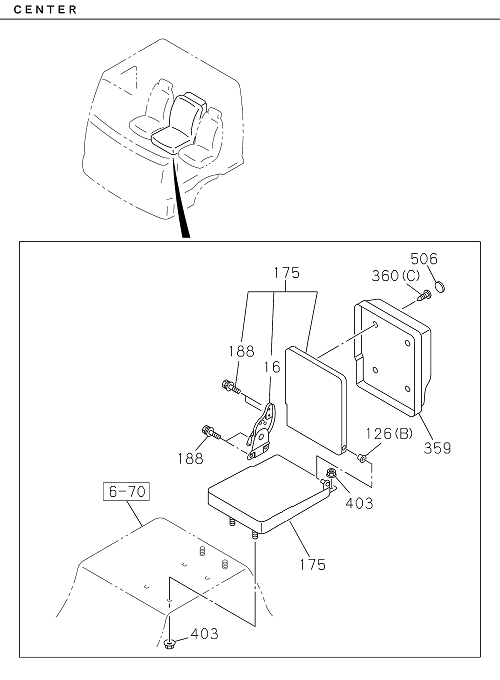

BACK ASM; PASSENGER CENTER SEAT |
1 |
2203- |
|
FVM |
DARK GRAY |
| 542 |
I8-98291 653-0 |
|

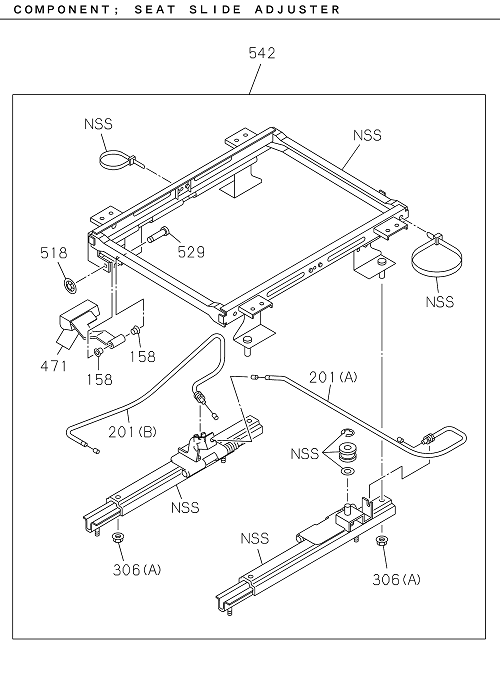

ADJUSTER ASM; SEAT SLIDE |
1 |
2203- |
|
FVM |
|
| 228 |
I8-98062 662-0 |
|
SCREW; KNOB |
1 |
2203- |
|
FVM |
M4 |
| 024 |
I7-32212 311-A |
|
KNOB; RECLINING,FRT,SEAT |
1 |
2203- |
|
FVM |
GRAY |
| 076 |
I8-98368 234-0 |
|
DAMPER; AIR SUSP |
1 |
2405- |
|
FVM |
|
| 062 |
I8-97523 709-0 |
|
DAMPER ASM; SEAT SUSP |
1 |
2405- |
|
FVM |
|
| 100 |
I8-98370 964-0 |
|
COVER; HINGE |
1 |
2405- |
|
FVM |
|
| 018 |
I8-97469 306-0 |
|
COVER; RECLINING |
1 |
2405- |
|
FVM |
|
| 306 |
I1-75538 207-A |
|
NUT; SEAT ADJ |
8 |
2203- |
|
FVM |
(A) M8 FLANGE |
| 063 |
I8-98370 873-0 |
|
ADJUSTER; SEAT SLIDE |
1 |
2405- |
L |
FVM |
|
| 365 |
I1-72538 312-0 |
|
LOCK ASM; SEAT |
1 |
2203- |
|
FVM |
|
| 506 |
I7-47500 660-0 |
|
CAP; PARCEL BOX |
2 |
2304- |
|
FVM |
GRAY |
| 079 |
I8-98368 248-0 |
|
ROLLER ASM; AIR SUSP |
4 |
2405- |
|
FVM |
|
| 518 |
I1-75518 263-0 |
|
NUT; TILT ADJ |
1 |
2203- |
|
FVM |
|
| 529 |
I1-75518 262-0 |
|
PIN; LINK |
1 |
2203- |
|
FVM |
|
| 632 |
I8-94119 796-0 |
|
GROMMET |
1 |
2203- |
|
FVM |
OD=24 |
| 359 |
I8-97417 261-0 |
|
BOX; PARCEL |
1 |
2203-2303 |
|
FVM |
GRAY |
| 506 |
I8-97409 980-1 |
|
CAP; PARCEL BOX |
2 |
2203-2303 |
|
FVM |
GRAY |
| 024 |
I7-32212 311-A |
|
KNOB; RECLINING,FRT,SEAT |
1 |
2203- |
|
FVM |
GRAY |
| 077 |
I8-98368 246-0 |
|
PIN; DAMPER |
2 |
2405- |
|
FVM |
|
| 099 |
I8-98370 890-0 |
|
BUSHING; SEAT BACK |
1 |
2405- |
|
FVM |
(B) |
| 100 |
I8-98370 964-0 |
|
COVER; HINGE |
1 |
2405- |
|
FVM |
|
| 076 |
I8-98368 234-0 |
|
DAMPER; AIR SUSP |
1 |
2405- |
|
FVM |
|
| 099 |
I8-98112 751-0 |
|
BUSHING; SEAT BACK |
1 |
2405- |
|
FVM |
(A) |
| 078 |
I8-98368 250-0 |
|
RING; SNAP |
2 |
2405- |
|
FVM |
|
| 113 |
I7-31031 312-A |
|
BACK ASM; SEAT |
1 |
2203- |
|
FVM |
DARK GRAY |
| 306 |
I8-98370 875-0 |
|
NUT; SEAT ADJ |
9 |
2405- |
|
FVM |
(C) M10 FLANGE |
| 126 |
I8-98286 007-0 |
|
BUSHING; HINGE,RECLINING |
1 |
2203- |
|
FVM |
(A) |
| 306 |
I8-98370 875-0 |
|
NUT; SEAT ADJ |
9 |
2405- |
|
FVM |
(C) M10 FLANGE |
| 123 |
I8-98070 026-0 |
|
SCREW; COVER,RECLINING |
1 |
2203- |
|
FVM |
M5 |
| 627 |
I8-98063 223-0 |
|
WASHER; FRT SEAT |
1 |
2203- |
|
FVM |
(A) |
| 016 |
I1-75418 062-1 |
|
ADJUSTER ASM; RECLINING |
1 |
2203- |
|
FVM |
|
| 533 |
I7-47500 658-0 |
|
LID; PARCEL BOX |
1 |
2304- |
|
FVM |
GRAY |
| 535 |
I1-72448 264-1 |
|
HINGE; PARCEL BOX |
1 |
2203- |
|
FVM |
|
| 348 |
I8-98286 008-0 |
|
BOLT; HINGE,SEAT |
1 |
2203- |
|
FVM |
|
| 632 |
I8-94119 796-0 |
|
GROMMET |
1 |
2203- |
|
FVM |
OD=24 |
| 016 |
I1-75418 062-1 |
|
ADJUSTER ASM; RECLINING |
1 |
2203- |
|
FVM |
|
| 348 |
I8-98286 008-0 |
|
BOLT; HINGE,SEAT |
1 |
2203- |
|
FVM |
|
| 306 |
I0-91180 110-0 |
|
NUT; SEAT ADJ |
2 |
2203- |
|
FVM |
(B) M10 FLANGE |
| 017 |
I8-98370 891-0 |
|
BOLT; RECLINING |
1 |
2405- |
|
FVM |
(C) |
| 536 |
I1-72538 187-0 |
|
RUBBER; CUSHION |
2 |
2203- |
|
FVM |
|
| 360 |
I0-70040 416-0 |
|
SCREW; PARCEL |
6 |
2203- |
|
FVM |
(B) M4X16 |
| 403 |
I7-05108 010-A |
|
NUT; CENTER SEAT |
4 |
2203- |
|
FVM |
M8 FLANGE |
| 001 |
I7-31011 314-A |
|
SEAT ASM; DRVR |
1 |
2203- |
|
FVM |
DARK GRAY |
| 001 |
I7-31011 310-A |
|
SEAT ASM; DRVR |
1 |
2405- |
|
FVM |
AIR SUSP DRIVER SEAT |
| 201 |
I1-75518 289-1 |
|
CABLE; ADJ |
1 |
2203- |
|
FVM |
(B) FOR RIGHT L=605 |
| 001 |
I7-31011 314-A |
|
SEAT ASM; DRVR |
1 |
2203- |
|
FVM |
DARK GRAY |
| 016 |
I1-75418 062-1 |
|
ADJUSTER ASM; RECLINING |
1 |
2203- |
|
FVM |
|
| 632 |
I8-94119 796-0 |
|
GROMMET |
1 |
2203- |
|
FVM |
OD=24 |
| 518 |
I1-75518 263-0 |
|
NUT; TILT ADJ |
1 |
2203- |
|
FVM |
|
| 533 |
I7-47500 658-0 |
|
LID; PARCEL BOX |
1 |
2304- |
|
FVM |
GRAY |
| 360 |
I0-70040 416-0 |
|
SCREW; PARCEL |
6 |
2203- |
|
FVM |
(B) M4X16 |
| 506 |
I8-97409 980-1 |
|
CAP; PARCEL BOX |
2 |
2203-2303 |
|
FVM |
GRAY |
| 067 |
I0-28451 020-0 |
|
BOLT; FRT SEAT TO BODY |
2 |
2203- |
|
FVM |
M10X20 FLANGE |
| 019 |
I8-98062 663-A |
|
SCREW; COVER |
1 |
2203- |
|
FVM |
M5 |
| 348 |
I8-98286 008-0 |
|
BOLT; HINGE,SEAT |
1 |
2203- |
|
FVM |
|
| 042 |
I1-75558 604-3 |
|
STAND; DRIVER SEAT |
1 |
2203- |
|
FVM |
|
| 063 |
I8-98370 872-0 |
|
ADJUSTER; SEAT SLIDE |
1 |
2405- |
R |
FVM |
|
| 529 |
I1-75518 262-0 |
|
PIN; LINK |
1 |
2203- |
|
FVM |
|
| 306 |
I0-91180 110-0 |
|
NUT; SEAT ADJ |
2 |
2203- |
|
FVM |
(B) M10 FLANGE |
| 518 |
I1-75518 263-0 |
|
NUT; TILT ADJ |
1 |
2203- |
|
FVM |
|
| 063 |
I8-98370 873-0 |
|
ADJUSTER; SEAT SLIDE |
1 |
2405- |
L |
FVM |
|
| 001 |
I7-31011 310-A |
|
SEAT ASM; DRVR |
1 |
2405- |
|
FVM |
AIR SUSP DRIVER SEAT |
| 348 |
I8-98286 008-0 |
|
BOLT; HINGE,SEAT |
1 |
2203- |
|
FVM |
|
| 506 |
I7-47500 660-0 |
|
CAP; PARCEL BOX |
2 |
2304- |
|
FVM |
GRAY |
| 018 |
I7-32211 311-A |
|
COVER; RECLINING |
1 |
2203- |
|
FVM |
GRAY |
| 201 |
I1-75518 288-0 |
|
CABLE; ADJ |
1 |
2203- |
|
FVM |
(A) FOR LEFT L=667 |
| 506 |
I8-97409 980-1 |
|
CAP; PARCEL BOX |
2 |
2203-2303 |
|
FVM |
GRAY |
| 403 |
I7-05108 010-A |
|
NUT; CENTER SEAT |
4 |
2203- |
|
FVM |
M8 FLANGE |
| 001 |
I7-31011 314-A |
|
SEAT ASM; DRVR |
1 |
2203- |
|
FVM |
DARK GRAY |
| 360 |
I0-70040 416-0 |
|
SCREW; PARCEL |
6 |
2203- |
|
FVM |
(B) M4X16 |
| 024 |
I8-97469 297-0 |
|
KNOB; RECLINING,FRT,SEAT |
1 |
2405- |
|
FVM |
|
| 339 |
I8-98370 503-0 |
|
UNION; DRIVER SEAT |
1 |
2405- |
|
FVM |
(B) |
| 080 |
I8-98368 236-0 |
|
RUBBER; STOPPER |
1 |
2405- |
|
FVM |
(A) |
| 471 |
I8-98107 869-0 |
|
LEVER; SEAT ADJ |
1 |
2203- |
|
FVM |
|
| 076 |
I8-98368 234-0 |
|
DAMPER; AIR SUSP |
1 |
2405- |
|
FVM |
|
| 175 |
I7-31021 312-A |
|
BACK ASM; PASSENGER CENTER SEAT |
1 |
2203- |
|
FVM |
DARK GRAY |
| 339 |
I8-98014 971-0 |
|
UNION; DRIVER SEAT |
1 |
2405- |
|
FVM |
(A) |
| 533 |
I7-47500 658-0 |
|
LID; PARCEL BOX |
1 |
2304- |
|
FVM |
GRAY |
| 017 |
I8-98062 661-0 |
|
BOLT; RECLINING |
2 |
2203- |
|
FVM |
(B) M10X20 |
| 595 |
I1-87411 001-0 |
|
TUBE; NYLON |
1 |
2405- |
|
FVM |
L=2000 OD=6 |
| 113 |
I7-31031 312-A |
|
BACK ASM; SEAT |
1 |
2203- |
|
FVM |
DARK GRAY |
| 632 |
I8-94119 796-0 |
|
GROMMET |
1 |
2203- |
|
FVM |
OD=24 |
| 534 |
I1-72538 190-0 |
|
STRIKER; PARCEL BOX |
1 |
2203- |
|
FVM |
|
| 122 |
I7-32221 311-A |
|
COVER; ADJ,RECLINING |
1 |
2203- |
|
FVM |
GRAY |
| 188 |
I1-75198 053-0 |
|
BOLT; BACK TO CUSHION |
4 |
2203- |
|
FVM |
M10X16 FLANGE |
| 001 |
I7-31011 310-A |
|
SEAT ASM; DRVR |
1 |
2405- |
|
FVM |
AIR SUSP DRIVER SEAT |
| 078 |
I8-98368 250-0 |
|
RING; SNAP |
2 |
2405- |
|
FVM |
|
| 360 |
I8-98062 663-A |
|
SCREW; PARCEL |
4 |
2203- |
|
FVM |
(C) M5 |
| 158 |
I1-75518 209-1 |
|
BUSHING; LINK ARM |
2 |
2203- |
|
FVM |
|
| 533 |
I7-47500 658-0 |
|
LID; PARCEL BOX |
1 |
2304- |
|
FVM |
GRAY |
| 228 |
I8-98062 662-0 |
|
SCREW; KNOB |
1 |
2203- |
|
FVM |
M4 |
| 113 |
I7-31031 312-A |
|
BACK ASM; SEAT |
1 |
2203- |
|
FVM |
DARK GRAY |
| 017 |
I8-98062 661-0 |
|
BOLT; RECLINING |
2 |
2203- |
|
FVM |
(B) M10X20 |
| 018 |
I7-32211 311-A |
|
COVER; RECLINING |
1 |
2203- |
|
FVM |
GRAY |
| 536 |
I1-72538 187-0 |
|
RUBBER; CUSHION |
2 |
2203- |
|
FVM |
|
| 099 |
I8-98370 890-0 |
|
BUSHING; SEAT BACK |
1 |
2405- |
|
FVM |
(B) |
| 024 |
I8-97469 297-0 |
|
KNOB; RECLINING,FRT,SEAT |
1 |
2405- |
|
FVM |
|
| 018 |
I7-32211 311-A |
|
COVER; RECLINING |
1 |
2203- |
|
FVM |
GRAY |
| 595 |
I1-87411 001-0 |
|
TUBE; NYLON |
1 |
2405- |
|
FVM |
L=2000 OD=6 |
| 201 |
I1-75518 289-1 |
|
CABLE; ADJ |
1 |
2203- |
|
FVM |
(B) FOR RIGHT L=605 |
| 360 |
I8-98062 663-A |
|
SCREW; PARCEL |
4 |
2203- |
|
FVM |
(C) M5 |
| 158 |
I1-75518 209-1 |
|
BUSHING; LINK ARM |
2 |
2203- |
|
FVM |
|
| 046 |
I0-28451 020-0 |
|
BOLT; STAND TO FLOOR |
2 |
2203- |
|
FVM |
M10X20 FLANGE |
| 360 |
I0-70040 514-0 |
|
SCREW; PARCEL |
2 |
2203- |
|
FVM |
(A) M5X14 TAPPING CK-HEAD |
| 339 |
I8-98014 971-0 |
|
UNION; DRIVER SEAT |
1 |
2405- |
|
FVM |
(A) |
| 024 |
I8-97469 297-0 |
|
KNOB; RECLINING,FRT,SEAT |
1 |
2405- |
|
FVM |
|
| 063 |
I8-98370 873-0 |
|
ADJUSTER; SEAT SLIDE |
1 |
2405- |
L |
FVM |
|
| 506 |
I8-97409 980-1 |
|
CAP; PARCEL BOX |
2 |
2203-2303 |
|
FVM |
GRAY |
| 158 |
I1-75518 209-1 |
|
BUSHING; LINK ARM |
2 |
2203- |
|
FVM |
|
| 100 |
I8-98286 009-0 |
|
COVER; HINGE |
1 |
2203- |
|
FVM |
|
| 080 |
I8-98368 236-0 |
|
RUBBER; STOPPER |
1 |
2405- |
|
FVM |
(A) |
| 062 |
I8-97523 709-0 |
|
DAMPER ASM; SEAT SUSP |
1 |
2405- |
|
FVM |
|
| 024 |
I7-32212 311-A |
|
KNOB; RECLINING,FRT,SEAT |
1 |
2203- |
|
FVM |
GRAY |
| 398 |
I1-75538 207-A |
|
NUT; STAND |
4 |
2203- |
|
FVM |
M8 FLANGE |
| 322 |
I8-98370 506-1 |
|
VALVE; AIR SPRING |
1 |
2405- |
|
FVM |
|
| 630 |
I8-98063 225-0 |
|
NUT; CAP |
1 |
2203- |
|
FVM |
M8 |
| 046 |
I0-28451 020-0 |
|
BOLT; STAND TO FLOOR |
2 |
2203- |
|
FVM |
M10X20 FLANGE |
| 339 |
I8-98370 503-0 |
|
UNION; DRIVER SEAT |
1 |
2405- |
|
FVM |
(B) |
| 201 |
I1-75518 289-1 |
|
CABLE; ADJ |
1 |
2203- |
|
FVM |
(B) FOR RIGHT L=605 |
| 535 |
I1-72448 264-1 |
|
HINGE; PARCEL BOX |
1 |
2203- |
|
FVM |
|
| 100 |
I8-98370 964-0 |
|
COVER; HINGE |
1 |
2405- |
|
FVM |
|
| 042 |
I1-75558 604-3 |
|
STAND; DRIVER SEAT |
1 |
2203- |
|
FVM |
|
| 100 |
I8-98286 009-0 |
|
COVER; HINGE |
1 |
2203- |
|
FVM |
|
| 535 |
I1-72448 264-1 |
|
HINGE; PARCEL BOX |
1 |
2203- |
|
FVM |
|
| 062 |
I8-97523 709-0 |
|
DAMPER ASM; SEAT SUSP |
1 |
2405- |
|
FVM |
|
| 086 |
I8-98368 235-0 |
|
BUSHING; GUIDE |
4 |
2405- |
|
FVM |
|
| 359 |
I8-97417 261-0 |
|
BOX; PARCEL |
1 |
2203-2303 |
|
FVM |
GRAY |
| 398 |
I1-75538 207-A |
|
NUT; STAND |
4 |
2203- |
|
FVM |
M8 FLANGE |
| 398 |
I1-75538 207-A |
|
NUT; STAND |
4 |
2203- |
|
FVM |
M8 FLANGE |
| 403 |
I7-05108 010-A |
|
NUT; CENTER SEAT |
4 |
2203- |
|
FVM |
M8 FLANGE |
| 627 |
I8-98063 224-0 |
|
WASHER; FRT SEAT |
1 |
2203- |
|
FVM |
(B) |
| 201 |
I1-75518 288-0 |
|
CABLE; ADJ |
1 |
2203- |
|
FVM |
(A) FOR LEFT L=667 |
| 046 |
I0-28451 020-0 |
|
BOLT; STAND TO FLOOR |
2 |
2203- |
|
FVM |
M10X20 FLANGE |
| 471 |
I8-98107 869-0 |
|
LEVER; SEAT ADJ |
1 |
2203- |
|
FVM |
|
| 126 |
I8-98286 007-0 |
|
BUSHING; HINGE,RECLINING |
1 |
2203- |
|
FVM |
(A) |
| 126 |
I8-97854 900-0 |
|
BUSHING; HINGE,RECLINING |
1 |
2203- |
|
FVM |
(B) |
| 627 |
I8-98063 223-0 |
|
WASHER; FRT SEAT |
1 |
2203- |
|
FVM |
(A) |
| 042 |
I1-75558 604-3 |
|
STAND; DRIVER SEAT |
1 |
2203- |
|
FVM |
|
| 622 |
I8-98370 874-0 |
|
HANDLE; SEAT ADJUSTER |
1 |
2405- |
|
FVM |
|
| 322 |
I8-98370 506-1 |
|
VALVE; AIR SPRING |
1 |
2405- |
|
FVM |
|
| 228 |
I8-98062 662-0 |
|
SCREW; KNOB |
1 |
2203- |
|
FVM |
M4 |
| 100 |
I8-98370 964-0 |
|
COVER; HINGE |
1 |
2405- |
|
FVM |
|
| 359 |
I7-47500 654-0 |
|
BOX; PARCEL |
1 |
2304- |
|
FVM |
GRAY |
| 533 |
I8-97417 263-0 |
|
LID; PARCEL BOX |
1 |
2203-2303 |
|
FVM |
GRAY |
| 228 |
I8-98062 662-0 |
|
SCREW; KNOB |
1 |
2203- |
|
FVM |
M4 |
| 063 |
I8-98370 872-0 |
|
ADJUSTER; SEAT SLIDE |
1 |
2405- |
R |
FVM |
|
| 019 |
I8-98062 663-A |
|
SCREW; COVER |
1 |
2203- |
|
FVM |
M5 |
| 595 |
I1-87411 001-0 |
|
TUBE; NYLON |
1 |
2405- |
|
FVM |
L=2000 OD=6 |
| 188 |
I1-75198 053-0 |
|
BOLT; BACK TO CUSHION |
4 |
2203- |
|
FVM |
M10X16 FLANGE |
| 188 |
I1-75198 053-0 |
|
BOLT; BACK TO CUSHION |
4 |
2203- |
|
FVM |
M10X16 FLANGE |
| 365 |
I1-72538 312-0 |
|
LOCK ASM; SEAT |
1 |
2203- |
|
FVM |
|
| 359 |
I8-97417 261-0 |
|
BOX; PARCEL |
1 |
2203-2303 |
|
FVM |
GRAY |
| 018 |
I8-97469 306-0 |
|
COVER; RECLINING |
1 |
2405- |
|
FVM |
|
| 365 |
I1-72538 312-0 |
|
LOCK ASM; SEAT |
1 |
2203- |
|
FVM |
|
| 188 |
I1-75198 053-0 |
|
BOLT; BACK TO CUSHION |
4 |
2203- |
|
FVM |
M10X16 FLANGE |
| 017 |
I8-98370 891-0 |
|
BOLT; RECLINING |
1 |
2405- |
|
FVM |
(C) |
| 398 |
I1-75538 207-A |
|
NUT; STAND |
4 |
2203- |
|
FVM |
M8 FLANGE |
| 024 |
I8-97469 297-0 |
|
KNOB; RECLINING,FRT,SEAT |
1 |
2405- |
|
FVM |
|
| 079 |
I8-98368 248-0 |
|
ROLLER ASM; AIR SUSP |
4 |
2405- |
|
FVM |
|
| 622 |
I8-98370 874-0 |
|
HANDLE; SEAT ADJUSTER |
1 |
2405- |
|
FVM |
|
| 529 |
I1-75518 262-0 |
|
PIN; LINK |
1 |
2203- |
|
FVM |
|
| 360 |
I0-70040 514-0 |
|
SCREW; PARCEL |
2 |
2203- |
|
FVM |
(A) M5X14 TAPPING CK-HEAD |
| 468 |
I8-98368 237-0 |
|
SPRING; RETURN |
1 |
2405- |
|
FVM |
|
| 175 |
I7-31021 312-A |
|
BACK ASM; PASSENGER CENTER SEAT |
1 |
2203- |
|
FVM |
DARK GRAY |
| 542 |
I8-98291 653-0 |
|
ADJUSTER ASM; SEAT SLIDE |
1 |
2203- |
|
FVM |
|
| 080 |
I8-98368 236-0 |
|
RUBBER; STOPPER |
1 |
2405- |
|
FVM |
(A) |
| 126 |
I8-98286 007-0 |
|
BUSHING; HINGE,RECLINING |
1 |
2203- |
|
FVM |
(A) |
| 468 |
I8-98368 237-0 |
|
SPRING; RETURN |
1 |
2405- |
|
FVM |
|
| 063 |
I8-98370 872-0 |
|
ADJUSTER; SEAT SLIDE |
1 |
2405- |
R |
FVM |
|
| 630 |
I8-98063 225-0 |
|
NUT; CAP |
1 |
2203- |
|
FVM |
M8 |
| 506 |
I7-47500 660-0 |
|
CAP; PARCEL BOX |
2 |
2304- |
|
FVM |
GRAY |
| 076 |
I8-98368 234-0 |
|
DAMPER; AIR SUSP |
1 |
2405- |
|
FVM |
|
| 535 |
I1-72448 264-1 |
|
HINGE; PARCEL BOX |
1 |
2203- |
|
FVM |
|
| 339 |
I8-98370 503-0 |
|
UNION; DRIVER SEAT |
1 |
2405- |
|
FVM |
(B) |
| 471 |
I8-98107 869-0 |
|
LEVER; SEAT ADJ |
1 |
2203- |
|
FVM |
|
| 339 |
I8-98370 503-0 |
|
UNION; DRIVER SEAT |
1 |
2405- |
|
FVM |
(B) |
| 359 |
I7-47500 654-0 |
|
BOX; PARCEL |
1 |
2304- |
|
FVM |
GRAY |
| 339 |
I8-98014 971-0 |
|
UNION; DRIVER SEAT |
1 |
2405- |
|
FVM |
(A) |
| 067 |
I0-28451 020-0 |
|
BOLT; FRT SEAT TO BODY |
2 |
2203- |
|
FVM |
M10X20 FLANGE |
| 468 |
I8-98368 237-0 |
|
SPRING; RETURN |
1 |
2405- |
|
FVM |
|
| 080 |
I8-98368 243-0 |
|
RUBBER; STOPPER |
2 |
2405- |
|
FVM |
(B) |
| 529 |
I1-75518 262-0 |
|
PIN; LINK |
1 |
2203- |
|
FVM |
|
| 063 |
I8-98370 873-0 |
|
ADJUSTER; SEAT SLIDE |
1 |
2405- |
L |
FVM |
|
| 542 |
I8-98291 653-0 |
|
ADJUSTER ASM; SEAT SLIDE |
1 |
2203- |
|
FVM |
|
| 080 |
I8-98368 243-0 |
|
RUBBER; STOPPER |
2 |
2405- |
|
FVM |
(B) |
| 077 |
I8-98368 246-0 |
|
PIN; DAMPER |
2 |
2405- |
|
FVM |
|
| 100 |
I8-98286 009-0 |
|
COVER; HINGE |
1 |
2203- |
|
FVM |
|
| 080 |
I8-98368 243-0 |
|
RUBBER; STOPPER |
2 |
2405- |
|
FVM |
(B) |
| 018 |
I8-97469 306-0 |
|
COVER; RECLINING |
1 |
2405- |
|
FVM |
|
| 468 |
I8-98368 237-0 |
|
SPRING; RETURN |
1 |
2405- |
|
FVM |
|
| 077 |
I8-98368 246-0 |
|
PIN; DAMPER |
2 |
2405- |
|
FVM |
|
| 534 |
I1-72538 190-0 |
|
STRIKER; PARCEL BOX |
1 |
2203- |
|
FVM |
|
| 627 |
I8-98063 224-0 |
|
WASHER; FRT SEAT |
1 |
2203- |
|
FVM |
(B) |
| 534 |
I1-72538 190-0 |
|
STRIKER; PARCEL BOX |
1 |
2203- |
|
FVM |
|
| 081 |
I8-98368 247-0 |
|
SPRING; AIR |
1 |
2405- |
|
FVM |
|
| 069 |
I0-91180 110-0 |
|
NUT; FRT SEAT |
2 |
2203- |
|
FVM |
M10 FLANGE |
| 201 |
I1-75518 288-0 |
|
CABLE; ADJ |
1 |
2203- |
|
FVM |
(A) FOR LEFT L=667 |
| 533 |
I8-97417 263-0 |
|
LID; PARCEL BOX |
1 |
2203-2303 |
|
FVM |
GRAY |
| 360 |
I0-70040 514-0 |
|
SCREW; PARCEL |
2 |
2203- |
|
FVM |
(A) M5X14 TAPPING CK-HEAD |
| 086 |
I8-98368 235-0 |
|
BUSHING; GUIDE |
4 |
2405- |
|
FVM |
|
| 017 |
I8-98092 334-0 |
|
BOLT; RECLINING |
2 |
2203- |
|
FVM |
(A) M8X20 |
| 360 |
I8-98062 663-A |
|
SCREW; PARCEL |
4 |
2203- |
|
FVM |
(C) M5 |
| 063 |
I8-98370 872-0 |
|
ADJUSTER; SEAT SLIDE |
1 |
2405- |
R |
FVM |
|
| 533 |
I8-97417 263-0 |
|
LID; PARCEL BOX |
1 |
2203-2303 |
|
FVM |
GRAY |
| 306 |
I8-98370 875-0 |
|
NUT; SEAT ADJ |
9 |
2405- |
|
FVM |
(C) M10 FLANGE |
| 126 |
I8-97854 900-0 |
|
BUSHING; HINGE,RECLINING |
1 |
2203- |
|
FVM |
(B) |
| 126 |
I8-98286 007-0 |
|
BUSHING; HINGE,RECLINING |
1 |
2203- |
|
FVM |
(A) |
| 081 |
I8-98368 247-0 |
|
SPRING; AIR |
1 |
2405- |
|
FVM |
|
| 077 |
I8-98368 246-0 |
|
PIN; DAMPER |
2 |
2405- |
|
FVM |
|
| 622 |
I8-98370 874-0 |
|
HANDLE; SEAT ADJUSTER |
1 |
2405- |
|
FVM |
|
| 542 |
I8-98291 653-0 |
|
ADJUSTER ASM; SEAT SLIDE |
1 |
2203- |
|
FVM |
|
| 017 |
I8-98062 661-0 |
|
BOLT; RECLINING |
2 |
2203- |
|
FVM |
(B) M10X20 |
| 627 |
I8-98063 223-0 |
|
WASHER; FRT SEAT |
1 |
2203- |
|
FVM |
(A) |
| 017 |
I8-98370 891-0 |
|
BOLT; RECLINING |
1 |
2405- |
|
FVM |
(C) |
| 533 |
I8-97417 263-0 |
|
LID; PARCEL BOX |
1 |
2203-2303 |
|
FVM |
GRAY |
| 069 |
I0-91180 110-0 |
|
NUT; FRT SEAT |
2 |
2203- |
|
FVM |
M10 FLANGE |
| 062 |
I8-97523 709-0 |
|
DAMPER ASM; SEAT SUSP |
1 |
2405- |
|
FVM |
|
| 024 |
I7-32212 311-A |
|
KNOB; RECLINING,FRT,SEAT |
1 |
2203- |
|
FVM |
GRAY |
| 627 |
I8-98063 224-0 |
|
WASHER; FRT SEAT |
1 |
2203- |
|
FVM |
(B) |
| 201 |
I1-75518 288-0 |
|
CABLE; ADJ |
1 |
2203- |
|
FVM |
(A) FOR LEFT L=667 |
| 123 |
I8-98070 026-0 |
|
SCREW; COVER,RECLINING |
1 |
2203- |
|
FVM |
M5 |
| 518 |
I1-75518 263-0 |
|
NUT; TILT ADJ |
1 |
2203- |
|
FVM |
|
| 067 |
I0-28451 020-0 |
|
BOLT; FRT SEAT TO BODY |
2 |
2203- |
|
FVM |
M10X20 FLANGE |
| 122 |
I7-32221 311-A |
|
COVER; ADJ,RECLINING |
1 |
2203- |
|
FVM |
GRAY |
| 001 |
I7-31011 310-A |
|
SEAT ASM; DRVR |
1 |
2405- |
|
FVM |
AIR SUSP DRIVER SEAT |
| 158 |
I1-75518 209-1 |
|
BUSHING; LINK ARM |
2 |
2203- |
|
FVM |
|
| 306 |
I0-91180 110-0 |
|
NUT; SEAT ADJ |
2 |
2203- |
|
FVM |
(B) M10 FLANGE |
| 078 |
I8-98368 250-0 |
|
RING; SNAP |
2 |
2405- |
|
FVM |
|
| 359 |
I7-47500 654-0 |
|
BOX; PARCEL |
1 |
2304- |
|
FVM |
GRAY |
| 017 |
I8-98092 334-0 |
|
BOLT; RECLINING |
2 |
2203- |
|
FVM |
(A) M8X20 |
| 017 |
I8-98370 891-0 |
|
BOLT; RECLINING |
1 |
2405- |
|
FVM |
(C) |
| 359 |
I7-47500 654-0 |
|
BOX; PARCEL |
1 |
2304- |
|
FVM |
GRAY |
| 018 |
I7-32211 311-A |
|
COVER; RECLINING |
1 |
2203- |
|
FVM |
GRAY |
| 019 |
I8-98062 663-A |
|
SCREW; COVER |
1 |
2203- |
|
FVM |
M5 |
| 175 |
I7-31021 312-A |
|
BACK ASM; PASSENGER CENTER SEAT |
1 |
2203- |
|
FVM |
DARK GRAY |
| 339 |
I8-98014 971-0 |
|
UNION; DRIVER SEAT |
1 |
2405- |
|
FVM |
(A) |
| 506 |
I7-47500 660-0 |
|
CAP; PARCEL BOX |
2 |
2304- |
|
FVM |
GRAY |
| 078 |
I8-98368 250-0 |
|
RING; SNAP |
2 |
2405- |
|
FVM |
|
| 595 |
I1-87411 001-0 |
|
TUBE; NYLON |
1 |
2405- |
|
FVM |
L=2000 OD=6 |
| 122 |
I7-32221 311-A |
|
COVER; ADJ,RECLINING |
1 |
2203- |
|
FVM |
GRAY |
| 086 |
I8-98368 235-0 |
|
BUSHING; GUIDE |
4 |
2405- |
|
FVM |
|
| 536 |
I1-72538 187-0 |
|
RUBBER; CUSHION |
2 |
2203- |
|
FVM |
|
| 627 |
I8-98063 224-0 |
|
WASHER; FRT SEAT |
1 |
2203- |
|
FVM |
(B) |
| 126 |
I8-97854 900-0 |
|
BUSHING; HINGE,RECLINING |
1 |
2203- |
|
FVM |
(B) |
| 306 |
I1-75538 207-A |
|
NUT; SEAT ADJ |
8 |
2203- |
|
FVM |
(A) M8 FLANGE |
| 360 |
I0-70040 416-0 |
|
SCREW; PARCEL |
6 |
2203- |
|
FVM |
(B) M4X16 |
| 080 |
I8-98368 243-0 |
|
RUBBER; STOPPER |
2 |
2405- |
|
FVM |
(B) |
| 360 |
I8-98062 663-A |
|
SCREW; PARCEL |
4 |
2203- |
|
FVM |
(C) M5 |
| 099 |
I8-98112 751-0 |
|
BUSHING; SEAT BACK |
1 |
2405- |
|
FVM |
(A) |
| 306 |
I8-98370 875-0 |
|
NUT; SEAT ADJ |
9 |
2405- |
|
FVM |
(C) M10 FLANGE |
| 079 |
I8-98368 248-0 |
|
ROLLER ASM; AIR SUSP |
4 |
2405- |
|
FVM |
|
| 081 |
I8-98368 247-0 |
|
SPRING; AIR |
1 |
2405- |
|
FVM |
|
| 123 |
I8-98070 026-0 |
|
SCREW; COVER,RECLINING |
1 |
2203- |
|
FVM |
M5 |
