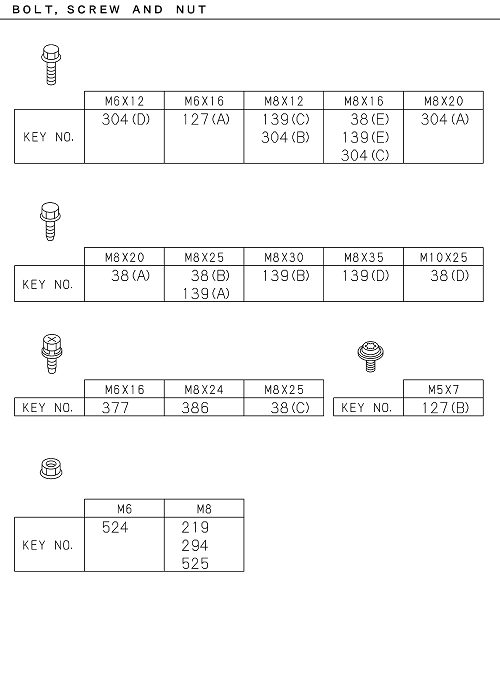

| 139 |
I0-28050 812-A |
|
BOLT; BRKT |
4 |
2203- |
|
FVM |
(C) M8X12 FLANGE |
| 304 |
I0-28050 612-0 |
|
BOLT; ENG HARNESS CLIP |
1 |
2203- |
|
FVM |
(D) M6X12 FLANGE |
| 001 |
I8-97608 976-0 |
|
SLEEVE; RUBBER |
6 |
2203- |
|
FVM |
(B) ID=23 OD=27 L=80 |
| 308 |
I8-97614 078-0 |
|
BRACKET; CLIP,ENG HARNESS |
1 |
2203- |
|
FVM |
(B) |
| 001 |
I8-97608 976-0 |
|
SLEEVE; RUBBER |
6 |
2203- |
|
FVM |
(B) ID=23 OD=27 L=80 |
| 377 |
I8-97086 823-0 |
|
BOLT; CAB EARTH |
2 |
2203- |
|
FVM |
M6X16 W/LK&PL WASHER |

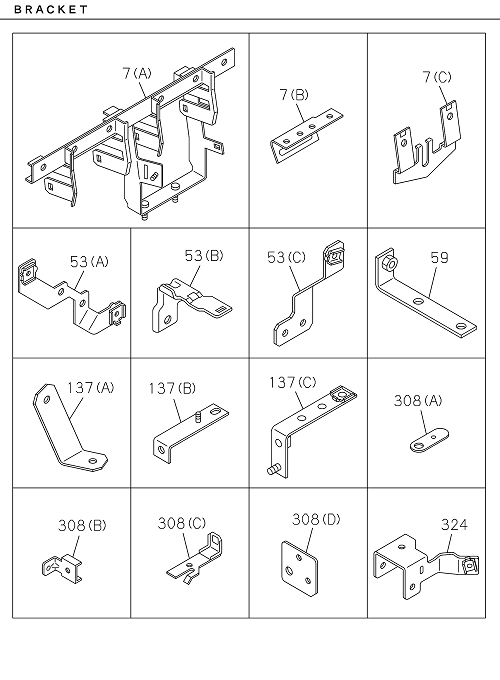

| 007 |
I8-98315 521-1 |
|
BRACKET; CONNECTOR |
1 |
2203- |
|
FVM |
(A) |
| 016 |
I1-09701 117-0 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM 280 |
(G) ID=16 |
| 038 |
I0-28651 025-0 |
|
BOLT; CLIP,HARNESS |
1 |
2203- |
|
FVM 280 |
(D) M10X25 FLANGE |
| 053 |
I8-98315 231-0 |
|
BRACKET; HARNESS |
1 |
2203- |
R |
FVM |
(A) |
| 053 |
I8-98326 422-0 |
|
BRACKET; HARNESS |
1 |
2203- |
|
FVM |
(C) |

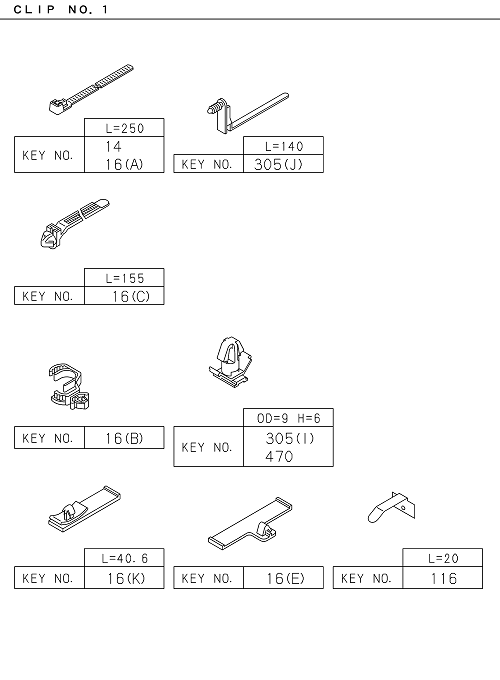

| 014 |
I8-98216 430-0 |
|
CLIP; BAND,HARNESS |
15 |
2203- |
|
FVM |
L=250 |
| 038 |
I7-04508 025-A |
|
BOLT; CLIP,HARNESS |
2 |
2203- |
|
FVM |
(A) M8X20 FLANGE; FVM-N HP ABS |
| 139 |
I0-28650 830-0 |
|
BOLT; BRKT |
4 |
2203- |
|
FVM |
(B) M8X30 FLANGE; FVM-N HP ABS |
| 139 |
I0-28050 816-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FVM |
(E) M8X16 FLANGE |

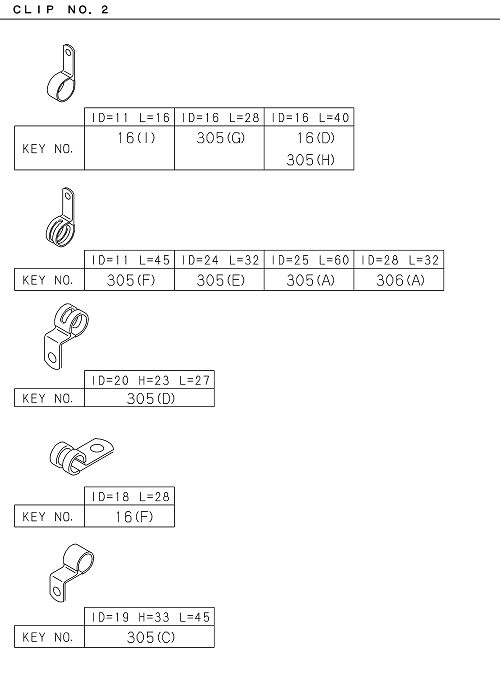

| 305 |
I1-09700 861-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(D) ID=20 H=23 L=27 |
| 324 |
I8-98377 689-0 |
|
BRACKET; CLIP |
1 |
2203- |
L |
FVM |
FVM-N HP ABS |
| 308 |
I8-97614 078-0 |
|
BRACKET; CLIP,ENG HARNESS |
1 |
2203- |
|
FVM |
(B) |
| 386 |
I8-98141 256-1 |
|
BOLT; GRAND HARNESS |
2 |
2203- |
|
FVM |
M8X24 W/PL WASHER |
| 503 |
I1-82690 668-0 |
|
CONNECTOR |
2 |
2203- |
|
FVM |
|
| 308 |
I8-98021 291-2 |
|
BRACKET; CLIP,ENG HARNESS |
1 |
2203- |
|
FVM |
(C) |
| 053 |
I8-98326 422-0 |
|
BRACKET; HARNESS |
1 |
2203- |
|
FVM |
(C) |
| 001 |
I9-09956 682-0 |
|
SLEEVE; RUBBER |
3 |
2203- |
|
FVM |
(A) ID=10 OD=14 L=30 |
| 530 |
I1-72498 019-1 |
|
SEAL; HARNESS |
6 |
2203- |
|
FVM |
180X40 |
| 139 |
I0-28650 830-0 |
|
BOLT; BRKT |
1 |
2203- |
|
FVM |
(B) M8X30 FLANGE |
| 305 |
I1-09700 861-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(D) ID=20 H=23 L=27 |
| 525 |
I7-05108 010-A |
|
NUT; CLIP |
3 |
2203- |
|
FVM |
T=8.0 M8 FLANGE |
| 308 |
I8-98021 692-1 |
|
BRACKET; CLIP,ENG HARNESS |
1 |
2203- |
|
FVM |
(D) |
| 139 |
I0-28650 835-0 |
|
BOLT; BRKT |
1 |
2203- |
|
FVM |
(D) M8X35 FLANGE; FVM-N HP ABS |
| 308 |
I8-97601 310-0 |
|
BRACKET; CLIP,ENG HARNESS |
2 |
2203- |
|
FVM |
(A) |

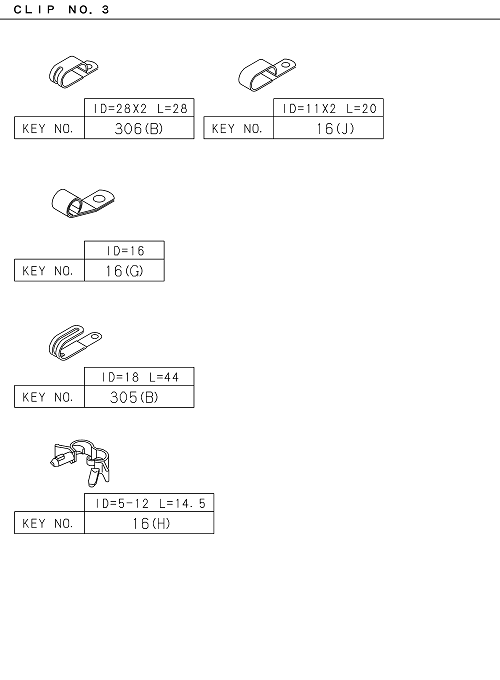

| 016 |
I1-09987 221-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM |
(H) ID=5-12 L=14.5; FVM-N HP ABS |
| 016 |
I8-94472 578-0 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM |
(B) ID=10 & 16 |
| 016 |
I0-95325 035-0 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM |
(J) ID=11X2 L=20; FVM-N HP ABS |
| 305 |
I0-95235 576-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(H) ID=16 L=40 |
| 038 |
I7-04508 025-A |
|
BOLT; CLIP,HARNESS |
1 |
2203- |
|
FVM |
(A) M8X20 FLANGE |
| 294 |
I7-05108 010-A |
|
NUT |
4 |
2203- |
|
FVM |
M8 FLANGE; FVM-N HP ABS |
| 127 |
I0-28050 616-0 |
|
SCREW; FACIA HARNESS CLIP |
1 |
2203- |
|
FVM |
(A) M6X16 FLANGE |
| 016 |
I8-97173 307-0 |
|
CLIP; HARNESS |
18 |
2203- |
|
FVM |
(C) L=155 |
| 116 |
I1-09987 246-2 |
|
CLIP; ROOF HARNESS |
4 |
2203- |
|
FVM |
L=20 |
| 038 |
I8-97087 203-0 |
|
BOLT; CLIP,HARNESS |
2 |
2203- |
|
FVM |
(C) M8X25 W/LK&PL WASHER |
| 007 |
I8-98315 521-1 |
|
BRACKET; CONNECTOR |
1 |
2203- |
|
FVM |
(A) |
| 305 |
I1-09701 041-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(A) ID=25 L=60 |
| 324 |
I8-98310 010-0 |
|
BRACKET; CLIP |
1 |
2203- |
R |
FVM |
FVM-N HP ABS |
| 001 |
I9-09956 682-0 |
|
SLEEVE; RUBBER |
3 |
2203- |
|
FVM |
(A) ID=10 OD=14 L=30 |
| 139 |
I0-28650 830-0 |
|
BOLT; BRKT |
1 |
2203- |
|
FVM |
(B) M8X30 FLANGE |
| 305 |
I8-97367 985-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(B) ID=18 L=44 |
| 139 |
I0-28650 825-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FVM |
(A) M8X25 FLANGE |
| 016 |
I8-98052 679-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM |
(E) |
| 038 |
I0-28050 816-0 |
|
BOLT; CLIP,HARNESS |
2 |
2203- |
|
FVM 245 |
(E) M8X16 FLANGE |
| 305 |
I1-09709 178-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(I) OD=9 H=6 |
| 007 |
I8-98315 522-0 |
|
BRACKET; CONNECTOR |
1 |
2203- |
|
FVM |
(B) |
| 306 |
I1-09701 107-1 |
|
CLIP; HARNESS,ELEC GOV |
1 |
2203- |
|
FVM |
(A) ID=28 L=32 |
| 007 |
I8-98315 522-0 |
|
BRACKET; CONNECTOR |
1 |
2203- |
|
FVM |
(B) |
| 525 |
I0-91180 208-0 |
|
NUT; CLIP |
1 |
2203- |
|
FVM |
T=8.5 M8 FLANGE |
| 016 |
I1-09701 067-0 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM |
(F) ID=18 L=28 |
| 016 |
I8-94472 578-0 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM |
(B) ID=10 & 16 |
| 139 |
I0-28050 812-A |
|
BOLT; BRKT |
1 |
2203- |
|
FVM |
(C) M8X12 FLANGE |
| 016 |
I0-95235 025-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM |
(I) ID=11 L=16; FVM-N HP ABS |
| 305 |
I8-97122 360-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(J) L=140 |
| 053 |
I8-98315 232-0 |
|
BRACKET; HARNESS |
1 |
2203- |
L |
FVM |
(A) |
| 305 |
I0-95235 556-0 |
|
CLIP; ENG HARNESS |
2 |
2203- |
|
FVM |
(G) ID=16 L=28 |
| 016 |
I5-09707 030-1 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM |
(A) L=250 |
| 016 |
I8-97173 307-0 |
|
CLIP; HARNESS |
18 |
2203- |
|
FVM |
(C) L=155 |
| 139 |
I0-28050 812-A |
|
BOLT; BRKT |
4 |
2203- |
|
FVM |
(C) M8X12 FLANGE |
| 305 |
I1-09700 766-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(E) ID=24 L=32 |
| 304 |
I0-28050 812-A |
|
BOLT; ENG HARNESS CLIP |
2 |
2203- |
|
FVM |
(B) M8X12 FLANGE |
| 538 |
I1-76798 029-0 |
|
SEAL; HOLE |
1 |
2203- |
|
FVM |
OD=25 BLACK |
| 038 |
I0-28050 816-0 |
|
BOLT; CLIP,HARNESS |
2 |
2203- |
|
FVM 245 |
(E) M8X16 FLANGE |
| 116 |
I1-09987 246-2 |
|
CLIP; ROOF HARNESS |
4 |
2203- |
|
FVM |
L=20 |
| 059 |
I1-82698 140-A |
|
BRACKET; FRAME HARNESS |
1 |
2203- |
|
FVM |
|
| 016 |
I0-95235 576-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM 245 |
(D) ID=16 L=40 |
| 219 |
I7-05108 010-A |
|
NUT |
1 |
2203- |
|
FVM |
M8 FLANGE |
| 305 |
I8-97122 360-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(J) L=140 |
| 294 |
I7-05108 010-A |
|
NUT |
2 |
2203- |
|
FVM |
M8 FLANGE |
| 324 |
I8-98310 010-0 |
|
BRACKET; CLIP |
1 |
2203- |
R |
FVM |
FVM-N HP ABS |
| 305 |
I1-09701 045-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(C) ID=19 H=33 L=45 |
| 137 |
I8-97624 013-0 |
|
BRACKET; HARNESS CLAMP |
1 |
2203- |
|
FVM |
(B) |
| 139 |
I0-28050 812-A |
|
BOLT; BRKT |
1 |
2203- |
|
FVM |
(C) M8X12 FLANGE |
| 530 |
I1-72498 019-1 |
|
SEAL; HARNESS |
6 |
2203- |
|
FVM |
180X40 |
| 304 |
I0-28050 816-0 |
|
BOLT; ENG HARNESS CLIP |
3 |
2203- |
|
FVM |
(C) M8X16 FLANGE |
| 016 |
I1-09701 067-0 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM |
(F) ID=18 L=28 |
| 305 |
I1-09701 041-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(A) ID=25 L=60 |
| 038 |
I0-28650 825-0 |
|
BOLT; CLIP,HARNESS |
3 |
2203- |
|
FVM |
(B) M8X25 FLANGE |
| 304 |
I0-28050 812-A |
|
BOLT; ENG HARNESS CLIP |
2 |
2203- |
|
FVM |
(B) M8X12 FLANGE |
| 305 |
I0-95235 556-0 |
|
CLIP; ENG HARNESS |
2 |
2203- |
|
FVM |
(G) ID=16 L=28 |
| 304 |
I0-28050 820-0 |
|
BOLT; ENG HARNESS CLIP |
2 |
2203- |
|
FVM |
(A) M8X20 FLANGE |
| 016 |
I0-95235 576-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM 245 |
(D) ID=16 L=40 |
| 014 |
I8-98216 430-0 |
|
CLIP; BAND,HARNESS |
15 |
2203- |
|
FVM |
L=250 |

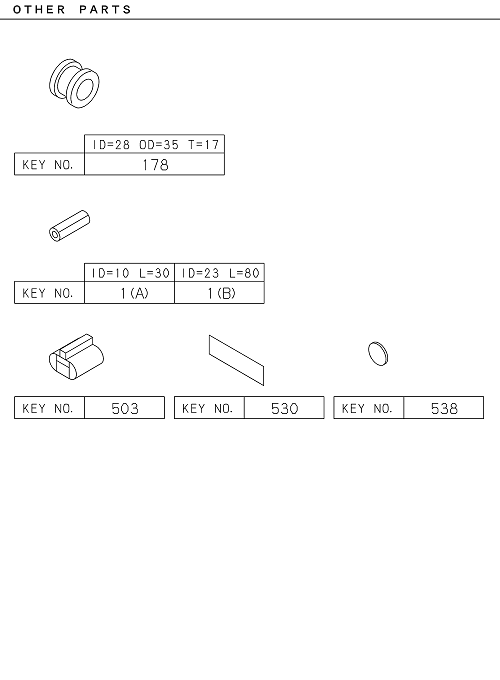

| 178 |
I9-09956 256-2 |
|
GROMMET; HARNESS |
1 |
2203- |
|
FVM |
ID=28 OD=35 T=17 |
| 016 |
I0-95235 025-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM |
(I) ID=11 L=16; FVM-N HP ABS |
| 007 |
I8-98315 523-2 |
|
BRACKET; CONNECTOR |
1 |
2203- |
|
FVM |
(C) |
| 304 |
I0-28050 612-0 |
|
BOLT; ENG HARNESS CLIP |
1 |
2203- |
|
FVM |
(D) M6X12 FLANGE |
| 305 |
I8-94296 897-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(F) ID=11 L=45 |
| 178 |
I9-09956 256-2 |
|
GROMMET; HARNESS |
1 |
2203- |
|
FVM |
ID=28 OD=35 T=17 |
| 139 |
I0-28650 830-0 |
|
BOLT; BRKT |
4 |
2203- |
|
FVM |
(B) M8X30 FLANGE; FVM-N HP ABS |
| 525 |
I0-91180 208-0 |
|
NUT; CLIP |
1 |
2203- |
|
FVM |
T=8.5 M8 FLANGE |
| 137 |
I8-98310 013-0 |
|
BRACKET; HARNESS CLAMP |
1 |
2203- |
|
FVM |
(C); FVM-N HP ABS |
| 038 |
I8-97087 203-0 |
|
BOLT; CLIP,HARNESS |
2 |
2203- |
|
FVM |
(C) M8X25 W/LK&PL WASHER |
| 308 |
I8-98021 291-2 |
|
BRACKET; CLIP,ENG HARNESS |
1 |
2203- |
|
FVM |
(C) |
| 306 |
I1-09701 302-0 |
|
CLIP; HARNESS,ELEC GOV |
2 |
2203- |
|
FVM |
(B) ID=28X2 L=28 |
| 053 |
I8-98052 458-0 |
|
BRACKET; HARNESS |
1 |
2203- |
|
FVM |
(B) |
| 139 |
I0-28050 816-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FVM |
(E) M8X16 FLANGE |
| 305 |
I1-09709 178-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(I) OD=9 H=6 |
| 470 |
I1-09709 178-0 |
|
CLIP; HARNESS,LICENSE LAMP |
1 |
2203- |
|
FVM |
OD=9 H=6 |
| 305 |
I8-94296 897-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(F) ID=11 L=45 |
| 038 |
I0-28650 825-0 |
|
BOLT; CLIP,HARNESS |
3 |
2203- |
|
FVM |
(B) M8X25 FLANGE |
| 007 |
I8-98315 523-2 |
|
BRACKET; CONNECTOR |
1 |
2203- |
|
FVM |
(C) |
| 016 |
I1-09701 117-0 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM 280 |
(G) ID=16 |
| 137 |
I8-97624 013-0 |
|
BRACKET; HARNESS CLAMP |
1 |
2203- |
|
FVM |
(B) |
| 306 |
I1-09701 107-1 |
|
CLIP; HARNESS,ELEC GOV |
1 |
2203- |
|
FVM |
(A) ID=28 L=32 |
| 377 |
I8-97086 823-0 |
|
BOLT; CAB EARTH |
2 |
2203- |
|
FVM |
M6X16 W/LK&PL WASHER |
| 127 |
I8-98063 767-0 |
|
SCREW; FACIA HARNESS CLIP |
1 |
2203- |
|
FVM |
(B) M5X7 HEXALOBULAR SOCKET |
| 038 |
I0-28651 025-0 |
|
BOLT; CLIP,HARNESS |
1 |
2203- |
|
FVM 280 |
(D) M10X25 FLANGE |
| 127 |
I0-28050 616-0 |
|
SCREW; FACIA HARNESS CLIP |
1 |
2203- |
|
FVM |
(A) M6X16 FLANGE |
| 053 |
I8-98052 458-0 |
|
BRACKET; HARNESS |
1 |
2203- |
|
FVM |
(B) |
| 305 |
I0-95235 576-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(H) ID=16 L=40 |
| 038 |
I7-04508 025-A |
|
BOLT; CLIP,HARNESS |
1 |
2203- |
|
FVM |
(A) M8X20 FLANGE |
| 137 |
I8-97614 728-1 |
|
BRACKET; HARNESS CLAMP |
1 |
2203- |
|
FVM |
(A) |
| 538 |
I1-76798 029-0 |
|
SEAL; HOLE |
1 |
2203- |
|
FVM |
OD=25 BLACK |
| 324 |
I8-98377 689-0 |
|
BRACKET; CLIP |
1 |
2203- |
L |
FVM |
FVM-N HP ABS |
| 304 |
I0-28050 816-0 |
|
BOLT; ENG HARNESS CLIP |
3 |
2203- |
|
FVM |
(C) M8X16 FLANGE |
| 470 |
I1-09709 178-0 |
|
CLIP; HARNESS,LICENSE LAMP |
1 |
2203- |
|
FVM |
OD=9 H=6 |
| 016 |
I0-95325 035-0 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM |
(J) ID=11X2 L=20; FVM-N HP ABS |
| 016 |
I8-98052 679-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM |
(E) |
| 219 |
I7-05108 010-A |
|
NUT |
3 |
2203- |
|
FVM |
M8 FLANGE; FVM-N HP ABS |
| 219 |
I7-05108 010-A |
|
NUT |
3 |
2203- |
|
FVM |
M8 FLANGE; FVM-N HP ABS |
| 016 |
I5-09707 030-1 |
|
CLIP; HARNESS |
1 |
2203- |
|
FVM |
(A) L=250 |
| 137 |
I8-98310 013-0 |
|
BRACKET; HARNESS CLAMP |
1 |
2203- |
|
FVM |
(C); FVM-N HP ABS |
| 059 |
I1-82698 140-A |
|
BRACKET; FRAME HARNESS |
1 |
2203- |
|
FVM |
|
| 127 |
I8-98063 767-0 |
|
SCREW; FACIA HARNESS CLIP |
1 |
2203- |
|
FVM |
(B) M5X7 HEXALOBULAR SOCKET |
| 386 |
I8-98141 256-1 |
|
BOLT; GRAND HARNESS |
2 |
2203- |
|
FVM |
M8X24 W/PL WASHER |
| 016 |
I8-97229 357-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM |
(K) L=40.6 |
| 305 |
I1-09700 766-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(E) ID=24 L=32 |
| 137 |
I8-97614 728-1 |
|
BRACKET; HARNESS CLAMP |
1 |
2203- |
|
FVM |
(A) |
| 219 |
I7-05108 010-A |
|
NUT |
1 |
2203- |
|
FVM |
M8 FLANGE |
| 503 |
I1-82690 668-0 |
|
CONNECTOR |
2 |
2203- |
|
FVM |
|
| 053 |
I8-98315 232-0 |
|
BRACKET; HARNESS |
1 |
2203- |
L |
FVM |
(A) |
| 305 |
I8-97367 985-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(B) ID=18 L=44 |
| 525 |
I7-05108 010-A |
|
NUT; CLIP |
3 |
2203- |
|
FVM |
T=8.0 M8 FLANGE |
| 304 |
I0-28050 820-0 |
|
BOLT; ENG HARNESS CLIP |
2 |
2203- |
|
FVM |
(A) M8X20 FLANGE |
| 016 |
I1-09987 221-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM |
(H) ID=5-12 L=14.5; FVM-N HP ABS |
| 139 |
I0-28650 835-0 |
|
BOLT; BRKT |
1 |
2203- |
|
FVM |
(D) M8X35 FLANGE; FVM-N HP ABS |
| 308 |
I8-98021 692-1 |
|
BRACKET; CLIP,ENG HARNESS |
1 |
2203- |
|
FVM |
(D) |
| 306 |
I1-09701 302-0 |
|
CLIP; HARNESS,ELEC GOV |
2 |
2203- |
|
FVM |
(B) ID=28X2 L=28 |
| 053 |
I8-98315 231-0 |
|
BRACKET; HARNESS |
1 |
2203- |
R |
FVM |
(A) |
| 305 |
I1-09701 045-0 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FVM |
(C) ID=19 H=33 L=45 |
| 038 |
I7-04508 025-A |
|
BOLT; CLIP,HARNESS |
2 |
2203- |
|
FVM |
(A) M8X20 FLANGE; FVM-N HP ABS |
| 524 |
I0-91180 106-0 |
|
NUT; HARNESS |
7 |
2203- |
|
FVM |
M6 FLANGE |
| 139 |
I0-28650 825-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FVM |
(A) M8X25 FLANGE |
| 308 |
I8-97601 310-0 |
|
BRACKET; CLIP,ENG HARNESS |
2 |
2203- |
|
FVM |
(A) |
| 524 |
I0-91180 106-0 |
|
NUT; HARNESS |
7 |
2203- |
|
FVM |
M6 FLANGE |
| 016 |
I8-97229 357-0 |
|
CLIP; HARNESS |
2 |
2203- |
|
FVM |
(K) L=40.6 |
