8-25 | SWITCH AND RELAY; INSTRUMENT PANEL
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 030 | I8-98047 201-0 | SCREW; DOOR SW | 1 | 2203- | FVM | M5X18 | ||

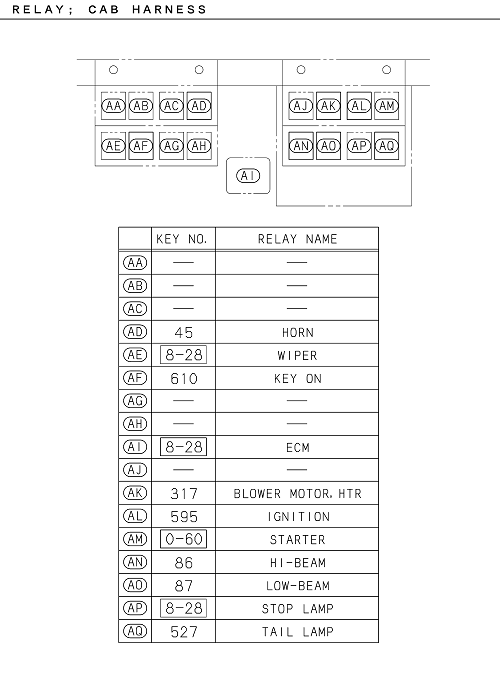

| 610 | I6-97173 035-0 | RELAY; KEY ON | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 045 | I8-97173 035-1 | RELAY; HORN | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 253 | I8-98025 954-1 | COVER; SW HOLE | 2 | 2203- | FVM | |||
| 257 | I8-98029 914-1 | COVER; HOLE,SW | 1 | 2203- | FVM | (B) | ||
| 086 | I6-97173 035-0 | RELAY; HI-BEAM | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 104 | I8-98025 954-1 | COVER; SW HOLE,FOG LAMP | 1 | 2203- | FVM | |||
| 595 | I6-97173 035-0 | RELAY; IGNITION | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 021 | I8-97358 248-0 | SWITCH; CLU | 1 | 2203- | FVM | |||
| 087 | I6-97173 035-0 | RELAY; LOW-BEAM | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 610 | I8-97173 035-1 | RELAY; KEY ON | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 317 | I8-97173 035-1 | RELAY; BLOWER MOTOR,HTR | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 527 | I6-97173 035-0 | RELAY; TAIL | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 003 | I8-98061 743-0 | SCREW; COMB SW | 2 | 2203- | FVM | M5X20 W/PL WASHER&HEXALOBULAR | ||
| 029 | I8-98022 211-0 | SWITCH; DOOR | 1 | 2203- | FVM | BLACK | ||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 1 | 2203- | FVM | (A) | ||
| 317 | I6-97173 035-0 | RELAY; BLOWER MOTOR,HTR | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 021 | I8-97358 248-0 | SWITCH; CLU | 1 | 2203- | FVM | |||
| 104 | I8-98025 954-1 | COVER; SW HOLE,FOG LAMP | 1 | 2203- | FVM | |||
| 029 | I8-98022 211-0 | SWITCH; DOOR | 1 | 2203- | FVM | BLACK | ||

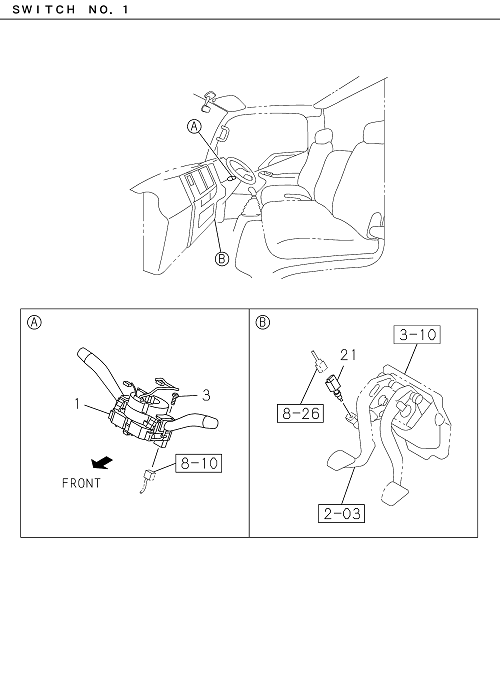

| 001 | I8-98243 704-0 | SWITCH; COMB | 1 | 2203- | FVM | |||
| 527 | I8-97173 035-1 | RELAY; TAIL | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 253 | I8-98025 954-1 | COVER; SW HOLE | 1 | 2203- | FVM | |||

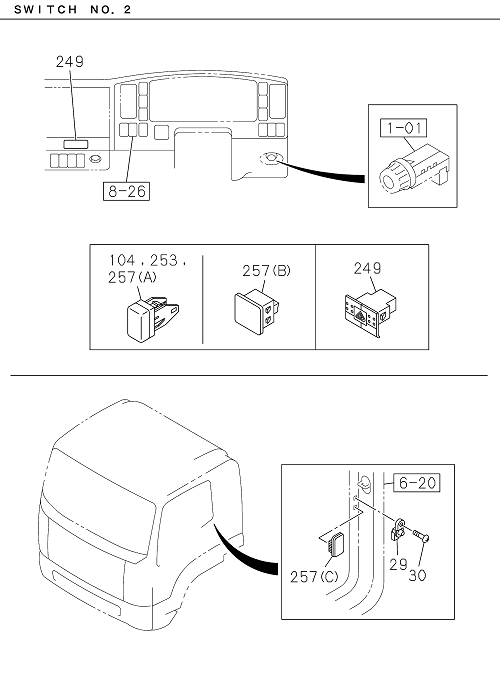

| 249 | I8-97948 258-0 | SWITCH; HAZARD | 1 | 2203- | FVM | |||
| 257 | I8-98029 917-0 | COVER; HOLE,SW | 1 | 2203- | FVM | (C) | ||
| 257 | I8-98029 917-0 | COVER; HOLE,SW | 1 | 2203- | FVM | (C) | ||
| 045 | I8-97173 035-1 | RELAY; HORN | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 257 | I8-98029 914-1 | COVER; HOLE,SW | 1 | 2203- | FVM | (B) | ||
| 317 | I8-97173 035-1 | RELAY; BLOWER MOTOR,HTR | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 253 | I8-98025 954-1 | COVER; SW HOLE | 2 | 2203- | FVM | |||
| 086 | I8-97173 035-1 | RELAY; HI-BEAM | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 001 | I8-98243 704-0 | SWITCH; COMB | 1 | 2203- | FVM | |||
| 003 | I8-98061 743-0 | SCREW; COMB SW | 2 | 2203- | FVM | M5X20 W/PL WASHER&HEXALOBULAR | ||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 7 | 2203- | FVM | (A) | ||
| 045 | I6-97173 035-0 | RELAY; HORN | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 595 | I8-97173 035-1 | RELAY; IGNITION | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 317 | I6-97173 035-0 | RELAY; BLOWER MOTOR,HTR | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 030 | I8-98047 201-0 | SCREW; DOOR SW | 1 | 2203- | FVM | M5X18 | ||
| 087 | I8-97173 035-1 | RELAY; LOW-BEAM | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 045 | I6-97173 035-0 | RELAY; HORN | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 249 | I8-97948 258-0 | SWITCH; HAZARD | 1 | 2203- | FVM | |||
| 257 | I8-98025 954-1 | COVER; HOLE,SW | 2 | 2203- | FVM | (A) |
