8-26 | ELECTRICAL CONTROL AND OTHER PARTS
GIGA E4
GIGA FVM E4

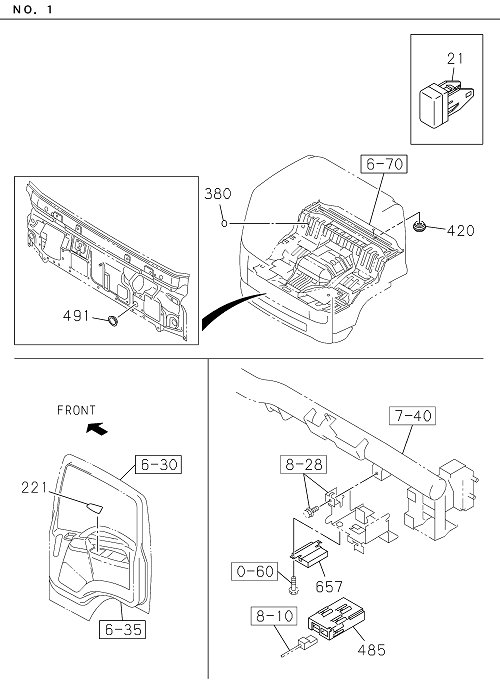

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 2203- | FVM | OD=60 | ||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | L | FVM | ||
| 608 | I0-28650 616-0 | BOLT; CONT UNIT,AIR SUS | 5 | 2203- | FVM | M6X16 FLANGE | ||
| 695 | I8-98045 016-1 | BRACKET; CONT UNIT,ABS | 1 | 2203- | FVM | FVM-N HP ABS | ||
| 695 | I8-98045 016-1 | BRACKET; CONT UNIT,ABS | 1 | 2203- | FVM | FVM-N HP ABS | ||
| 068 | I0-28650 616-0 | BOLT; BRKT | 1 | 2203- | FVM | (A) M6X16 FLANGE | ||
| 609 | I8-98169 737-1 | BRACKET ASM; ELEC UNIT,AIR SUS | 1 | 2203- | FVM | |||
| 068 | I0-28650 616-0 | BOLT; BRKT | 1 | 2203- | FVM | (A) M6X16 FLANGE | ||
| 264 | I8-98246 453-0 | BRACKET; CONT UNIT | 1 | 2203- | FVM | |||
| 420 | I8-94122 971-0 | PLUG; SWITCH | 1 | 2203- | FVM | OD=35 | ||
| 420 | I8-94122 971-0 | PLUG; SWITCH | 1 | 2203- | FVM | OD=35 | ||
| 263 | I0-28650 616-0 | BOLT; CONT UNIT | 4 | 2203- | FVM | M6X16 FLANGE; FVM-N HP ABS | ||
| 158 | I8-98335 053-0 | CONTROLLER; ABS | 1 | 2203- | FVM | FVM-N HP ABS | ||
| 021 | I8-98025 954-1 | COVER; HOLE | 1 | 2203- | FVM | |||
| 069 | I0-91180 106-0 | NUT; BRKT | 1 | 2203- | FVM | M6 FLANGE | ||
| 021 | I8-98025 954-1 | COVER; HOLE | 1 | 2203- | FVM | |||
| 264 | I8-98246 453-0 | BRACKET; CONT UNIT | 1 | 2203- | FVM | |||
| 069 | I0-91180 106-0 | NUT; BRKT | 1 | 2203- | FVM | M6 FLANGE | ||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | R | FVM | ||
| 485 | I8-98232 695-0 | CONTROL UNIT; SPEED SENSOR | 1 | 2203- | FVM | |||
| 485 | I8-98232 695-0 | CONTROL UNIT; SPEED SENSOR | 1 | 2203- | FVM | |||
| 380 | I1-76798 029-0 | SEAL | 1 | 2203- | FVM | OD=25 BLACK | ||
| 608 | I0-28650 616-0 | BOLT; CONT UNIT,AIR SUS | 5 | 2203- | FVM | M6X16 FLANGE | ||
| 158 | I8-98335 053-0 | CONTROLLER; ABS | 1 | 2203- | FVM | FVM-N HP ABS | ||
| 657 | I8-97948 260-2 | CONTROL UNIT; MIMAMORI | 1 | 2203- | FVM | DRM | ||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 2203- | FVM | OD=60 | ||
| 757 | I0-28650 616-0 | BOLT; BRKT,BCM | 2 | 2203- | FVM | M6X16 FLANGE; FVM-N HP ABS | ||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | R | FVM | ||
| 756 | I8-98056 411-3 | BRACKET; ECU,BCM | 1 | 2203- | FVM | FVM-N HP ABS | ||
| 657 | I8-97948 260-2 | CONTROL UNIT; MIMAMORI | 1 | 2203- | FVM | DRM | ||
| 380 | I1-76798 029-0 | SEAL | 1 | 2203- | FVM | OD=25 BLACK | ||
| 757 | I0-28650 616-0 | BOLT; BRKT,BCM | 2 | 2203- | FVM | M6X16 FLANGE; FVM-N HP ABS | ||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | L | FVM | ||
| 068 | I1-09980 492-0 | BOLT; BRKT | 2 | 2203- | FVM | (B) M6X16 W/LK&PL WASHER; FVM-N HP ABS | ||
| 068 | I1-09980 492-0 | BOLT; BRKT | 2 | 2203- | FVM | (B) M6X16 W/LK&PL WASHER; FVM-N HP ABS | ||
| 756 | I8-98056 411-3 | BRACKET; ECU,BCM | 1 | 2203- | FVM | FVM-N HP ABS | ||
| 609 | I8-98169 737-1 | BRACKET ASM; ELEC UNIT,AIR SUS | 1 | 2203- | FVM | |||
| 263 | I0-28650 616-0 | BOLT; CONT UNIT | 4 | 2203- | FVM | M6X16 FLANGE; FVM-N HP ABS |
