8-28 | CHASSIS ELECTRICAL
GIGA E4
GIGA FVM E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | FVM | |||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||

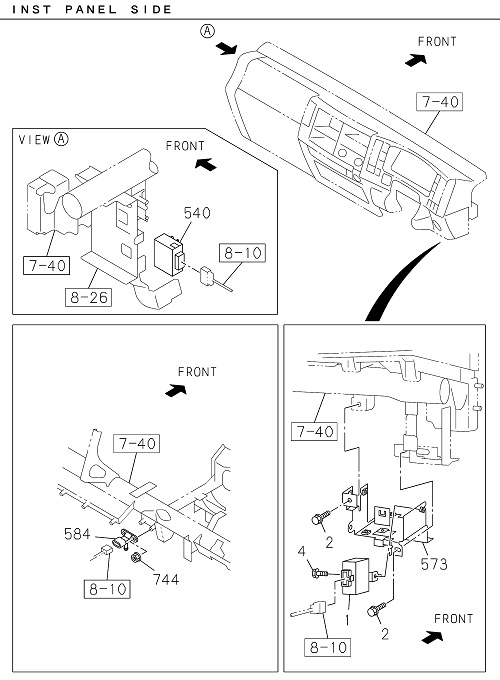

| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | FVM | |||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2203- | FVM | |||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | FVM | |||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | FVM | M6X16 FLANGE | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | FVM | |||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | FVM | M6 FLANGE | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | FVM | M6 FLANGE | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | FVM | |||

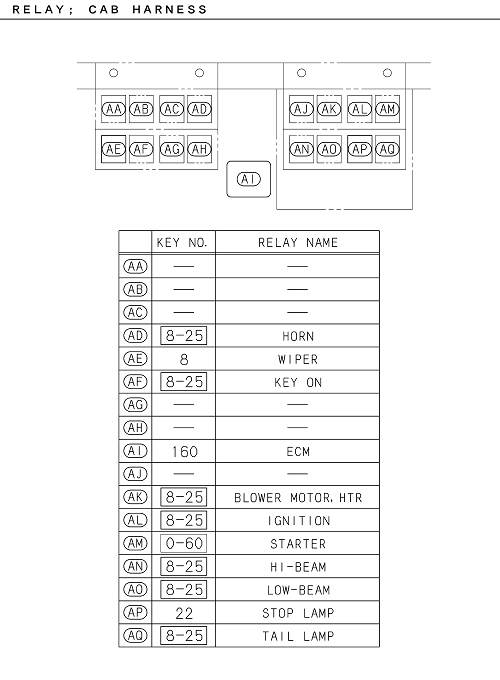

| 160 | I8-97833 987-0 | RELAY; ECM | 1 | 2203- | FVM | 24V 30A MITSUBA | ||
| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 2203- | FVM | 24V 10A PANASONIC | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | FVM | M6X16 FLANGE | ||
| 160 | I8-97833 987-0 | RELAY; ECM | 1 | 2203- | FVM | 24V 30A MITSUBA | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | FVM | M8X20 W/LK&PL WASHER | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | FVM | M6X16 FLANGE | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | FVM | (IADG) 24V 10A PANASONIC | ||

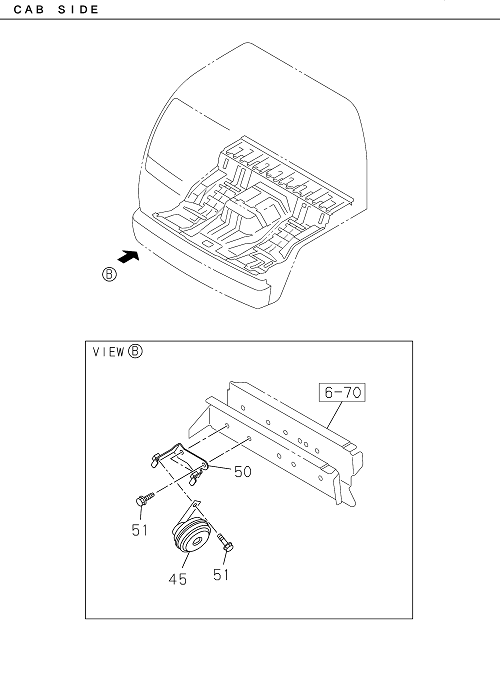

| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | FVM | |||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | FVM | |||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | FVM | |||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | FVM | M8X20 W/LK&PL WASHER | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | FVM | |||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | FVM | |||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2203- | FVM |
