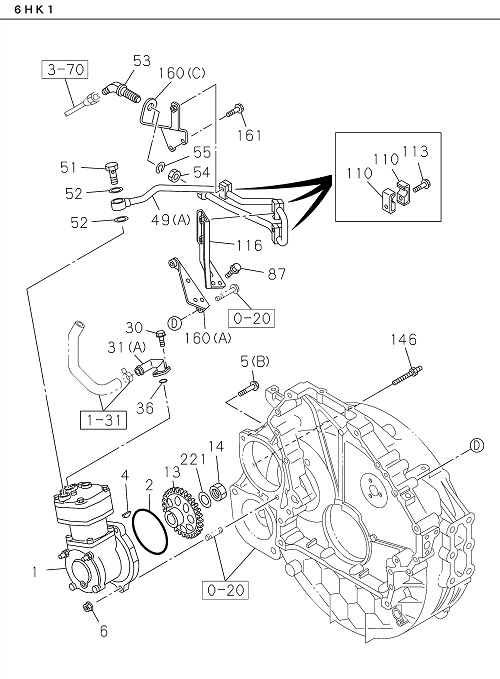

0-38 | AIR COMPRESSOR PIPING; ENGINE SIDE
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 113 | I0-28050 845-0 | BOLT; CLIP,AIR PIPE | 3 | 2203- | FVR | M8X45 FLANGE | ||
| 110 | I1-09701 284-0 | CLIP; AIR PIPE | 6 | 2203- | FVR | ID=17 L=17 | ||
| 014 | I0-91110 520-0 | NUT; GEAR | 1 | 2203- | FVR | M20 | ||
| 055 | I0-91510 522-0 | WASHER; LK,PIPE UNION | 1 | 2203- | FVR | ID=22.5 | ||
| 030 | I7-04508 025-A | BOLT; PIPE CLIP | 2 | 2203- | FVR | M8X20 FLANGE | ||
| 146 | I1-09049 038-1 | STUD; AIR CMPR | 1 | 2203- | FVR | M10X16,M12X70 L=97.7 | ||
| 161 | I0-28050 816-0 | BOLT; BRKT,AIR PIPE | 2 | 2203- | FVR | M8X16 FLANGE | ||
| 031 | I8-97620 948-0 | PIPE; AIR,AIR CMPR SUCTION | 1 | 2203- | FVR | (A) | ||
| 221 | I0-91610 520-0 | WASHER; PL,GEAR | 1 | 2203- | FVR | ID=21 | ||
| 006 | I0-91180 212-0 | NUT; AIR CMPR | 1 | 2203- | FVR | M12 FLANGE | ||
| 005 | I0-28151 270-0 | BOLT; AIR CMPR FIX | 2 | 2203- | FVR | (B) M12X70 FLANGE | ||
| 002 | I1-09623 570-0 | GASKET; AIR CMPR | 1 | 2203- | FVR | ID=162 | ||
| 013 | I8-94394 511-4 | GEAR; AIR CMPR DRIVE | 1 | 2203- | FVR | Z=49 | ||
| 052 | I9-09571 424-0 | GASKET; EYE BOLT,AIR PIPE | 2 | 2203- | FVR | ID=24.5 OD=32 | ||
| 160 | I8-97614 182-2 | BRACKET; AIR PIPE | 1 | 2203- | FVR | (A) | ||
| 054 | I0-91111 522-0 | NUT; PIPE UNION | 1 | 2203- | FVR | M22 | ||
| 116 | I8-97614 183-1 | BRACKET; AIR PIPE | 1 | 2203- | FVR | |||
| 049 | I8-98052 612-0 | PIPE; AIR,CHARGE | 1 | 2203- | FVR | (A) | ||
| 053 | I1-09654 318-1 | UNION; CHARGE PIPE | 1 | 2203- | FVR | M22 & M26 L=79 STRAIGHT | ||
| 160 | I8-98042 844-1 | BRACKET; AIR PIPE | 1 | 2203- | FVR | (C) | ||
| 036 | I1-09623 057-0 | GASKET; AIR PIPE TO AIR CMPR | 1 | 2203- | FVR | ID=24.4 | ||
| 001 | I8-98187 304-2 | COMPRESSOR ASM; AIR | 1 | 2203- | FVR | |||
| 087 | I0-28050 820-0 | BOLT; BRKT FIX | 3 | 2203- | FVR | M8X20 FLANGE | ||
| 051 | I1-09675 175-2 | BOLT; EYE,AIR PIPE TO CMPR | 1 | 2203- | FVR | M24X39 |
