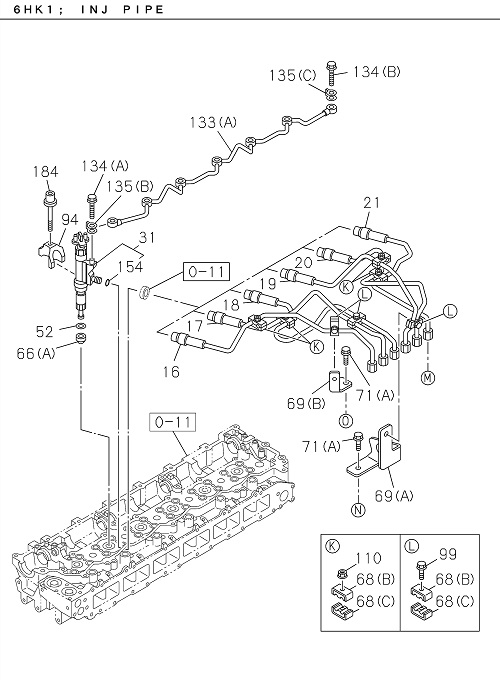

0-40 | FUEL INJECTION SYSTEM
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 020 | I8-98242 354-0 | PIPE; INJ NO.5 | 1 | 2203- | FVR | |||
| 210 | I8-98242 356-0 | PIPE; INJ,C/R | 1 | 2203- | FVR | (B) | ||
| 135 | I8-98065 992-0 | GASKET; JOINT BOLT,LEAK OFF PIPE | 6 | 2203- | FVR | (B) ID=8.3 OD=15.0 | ||
| 154 | I0-95690 111-0 | GASKET; CONNECTOR | 6 | 2203- | FVR | ID=11.0 | ||
| 031 | I8-98207 435-0 | NOZZLE ASM; INJ | 6 | 2203- | FVR | |||
| 169 | I0-91180 112-0 | NUT; BRKT | 1 | 2203- | FVR | (B) M12 FLANGE | ||
| 169 | I0-91180 110-0 | NUT; BRKT | 2 | 2203- | FVR | (A) M10 FLANGE | ||
| 002 | I8-94399 256-0 | BOLT; INJ PUMP | 3 | 2203- | FVR | M8X28 | ||
| 071 | I0-28151 200-0 | BOLT; BRKT | 1 | 2203- | FVR | (B) M12X100 FLANGE | ||
| 199 | I8-97602 218-0 | GASKET; EYE BOLT | 4 | 2203- | FVR | (B) | ||
| 071 | I0-28050 816-0 | BOLT; BRKT | 2 | 2203- | FVR | (A) M8X16 FLANGE | ||
| 068 | I8-97330 118-3 | CLIP; INJ PIPE | 7 | 2203- | FVR | (C) ID=7 & 7 L=22 | ||
| 199 | I1-15619 507-0 | GASKET; EYE BOLT | 2 | 2203- | FVR | (A) ID=14.2 | ||
| 001 | I8-98239 521-2 | PUMP ASM; INJ | 1 | 2203- | FVR | |||
| 216 | I8-98035 828-0 | BOLT; EYE | 1 | 2203- | FVR | (D) M10X19 EYE-BOLT | ||
| 131 | I8-98000 011-2 | CLIP; OVERFLOW LEAK OFF | 1 | 2203- | FVR | (B) ID=7 & 9 L=25 | ||
| 066 | I8-98079 248-0 | GASKET; INJ NOZZLE | 6 | 2203- | FVR | (A) ID=9.2 T=8.1 | ||
| 212 | I8-97365 449-0 | BOLT; RAIL ASM | 1 | 2203- | FVR | M10X55 FLANGE | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 5 | 2203- | FVR | M6 FLANGE | ||
| 216 | I5-15759 003-0 | BOLT; EYE | 1 | 2203- | FVR | (A) M14X26 EYE-BOLT | ||
| 211 | I8-98239 520-0 | RAIL ASM; COMMON | 1 | 2203- | FVR | |||
| 069 | I8-98241 203-0 | BRACKET; INJ PIPE CLIP | 1 | 2203- | FVR | (A) | ||
| 205 | I8-98023 581-0 | SENSOR; FUEL TEMP | 1 | 2203- | FVR | |||
| 289 | I8-98138 695-0 | LIMITER; FUEL PRESS | 1 | 2203- | FVR | |||
| 382 | I8-98161 995-0 | KEY; DRIVE SHAFT | 1 | 2203- | FVR | |||
| 184 | I8-98008 895-0 | BOLT; NOZZLE HOLDER | 6 | 2203- | FVR | M8X54 | ||
| 135 | I8-98079 755-0 | GASKET; JOINT BOLT,LEAK OFF PIPE | 1 | 2203- | FVR | (A) ID=10.2 OD=17 | ||
| 135 | I8-98231 393-1 | GASKET; JOINT BOLT,LEAK OFF PIPE | 1 | 2203- | FVR | (C) ID=10.6 | ||
| 133 | I8-98203 705-1 | PIPE; INJ NOZZLE LEAK OFF | 1 | 2203- | FVR | (A) | ||
| 121 | I8-98126 331-0 | PIPE; FUEL,FEED PUMP,SUCTION | 1 | 2203- | FVR | |||
| 094 | I8-98028 999-1 | BRACKET; INJ NOZZLE | 6 | 2203- | FVR | |||
| 069 | I8-98038 940-0 | BRACKET; INJ PIPE CLIP | 1 | 2203- | FVR | (B) | ||
| 068 | I8-97330 119-3 | CLIP; INJ PIPE | 7 | 2203- | FVR | (B) ID=7 & 7 L=22 | ||
| 388 | I8-98032 017-0 | STUD; RAIL | 1 | 2203- | FVR | M10X20,M10X55 L=85 | ||
| 099 | I0-28050 635-0 | BOLT; CLIP,INJ,PIPE | 3 | 2203- | FVR | M6X35 FLANGE | ||
| 271 | I8-98031 844-0 | GASKET; INJ PUMP | 1 | 2203- | FVR | (B) ID=52 | ||
| 424 | I8-98145 449-1 | OVERHAUL KIT; SUPPLY PUMP | 1 | 2203- | FVR | |||
| 392 | I0-91180 110-0 | NUT; RAIL ASM | 2 | 2203- | FVR | M10 FLANGE | ||
| 017 | I8-98242 351-0 | PIPE; INJ NO.2 | 1 | 2203- | FVR | |||
| 133 | I8-98163 854-1 | PIPE; INJ NOZZLE LEAK OFF | 1 | 2203- | FVR | (B) | ||
| 131 | I8-98000 010-2 | CLIP; OVERFLOW LEAK OFF | 1 | 2203- | FVR | (A) ID=7 & 9 L=25 | ||
| 016 | I8-98242 350-0 | PIPE; INJ NO.1 | 1 | 2203- | FVR | |||
| 134 | I8-94396 711-0 | BOLT; JOINT,LEAK OFF PIPE | 2 | 2203- | FVR | (B) M10X21 EYE-BOLT | ||
| 216 | I8-97351 388-0 | BOLT; EYE | 1 | 2203- | FVR | (B) M10X23 EYE-BOLT | ||
| 271 | I1-09623 464-0 | GASKET; INJ PUMP | 1 | 2203- | FVR | (A) ID=139.6 | ||
| 213 | I1-09503 045-0 | WASHER; RAIL ASM | 1 | 2203- | FVR | ID=10.5 OD=22 T=4 | ||
| 290 | I8-98138 736-0 | SENSOR; PRESS | 1 | 2203- | FVR | |||
| 052 | I8-94173 412-0 | GASKET; SLEEVE | 6 | 2203- | FVR | ID=23.3 | ||
| 019 | I8-98242 353-0 | PIPE; INJ NO.4 | 1 | 2203- | FVR | |||
| 134 | I1-09675 037-1 | BOLT; JOINT,LEAK OFF PIPE | 6 | 2203- | FVR | (A) M8X18 EYE-BOLT | ||
| 006 | I8-97601 154-1 | BRACKET; INJ PUMP TO C/BL | 1 | 2203- | FVR | |||
| 018 | I8-98242 352-0 | PIPE; INJ NO.3 | 1 | 2203- | FVR | |||
| 021 | I8-98242 355-0 | PIPE; INJ NO.6 | 1 | 2203- | FVR |
