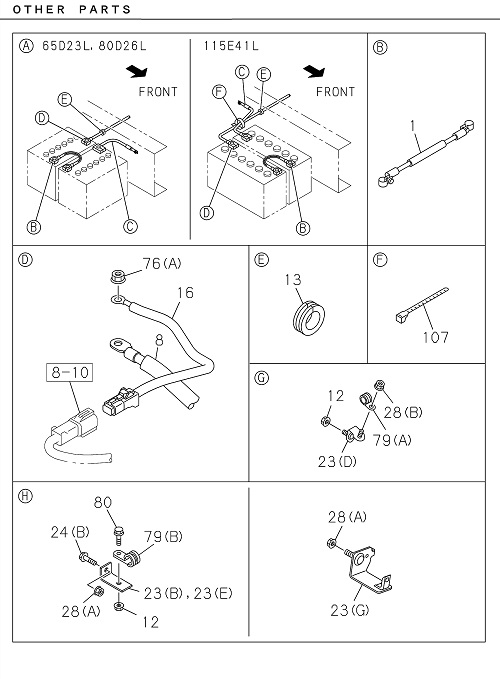

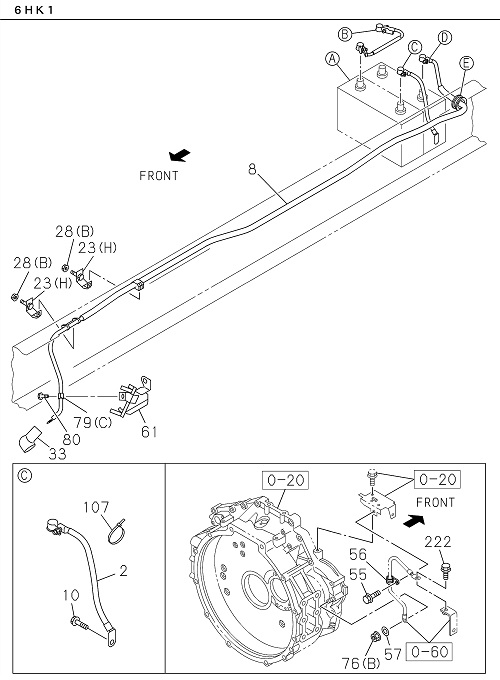

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 061 | I8-98051 379-1 | BRACKET; BATTERY CABLE | 1 | 2203- | FVR | |||
| 013 | I1-09891 003-0 | GROMMET; BATTERY CABLE | 1 | 2203- | FVR | ID=32 OD=40 T=18 | ||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 2203- | FVR | M10X25 W/LK&PL WASHER | ||
| 002 | I8-98313 760-2 | CABLE; BATTERY | 1 | 2203- | FVR | L=240 | ||
| 079 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 2203- | FVR | (C) ID=15 L=28 | ||
| 056 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 2203- | FVR | ID=16 L=28 | ||
| 001 | I7-42502 223-A | CABLE; BATTERY | 1 | 2203- | FVR | L=280 | ||
| 076 | I0-91110 506-0 | NUT; BATTERY CABLE | 1 | 2203- | FVR | (A) M6 | ||
| 023 | I8-97612 957-1 | BRACKET; CABLE CLIP TO FRAME | 2 | 2203- | FVR | (H) | ||
| 016 | I8-97696 169-A | CABLE; STARTER TO RELAY | 1 | 2203- | FVR | L=325 | ||
| 055 | I0-28050 816-0 | BOLT; CLIP,BATTERY CABLE | 1 | 2203- | FVR | M8X16 FLANGE | ||
| 076 | I7-05110 010-A | NUT; BATTERY CABLE | 1 | 2203- | FVR | (B) M10 FLANGE | ||
| 080 | I7-04508 025-A | BOLT; BATTERY CABLE CLIP | 1 | 2203- | FVR | M8X20 FLANGE | ||
| 010 | I8-97087 203-0 | BOLT; BATTERY CABLE CLIP | 1 | 2203- | FVR | M8X25 W/LK&PL WASHER | ||
| 028 | I7-05108 010-A | NUT; BRKT TO FRAME | 2 | 2203- | FVR | (B) M8 FLANGE | ||
| 033 | I1-82699 431-0 | CAP; INSULATOR | 1 | 2203- | FVR | |||
| 057 | I0-91610 610-0 | WASHER; PL,BATTERY CABLE | 1 | 2203- | FVR | ID=10.5 OD=22 T=1.6 | ||
| 008 | I8-97696 167-A | CABLE; BATTERY,STARTER | 1 | 2203- | FVR |
